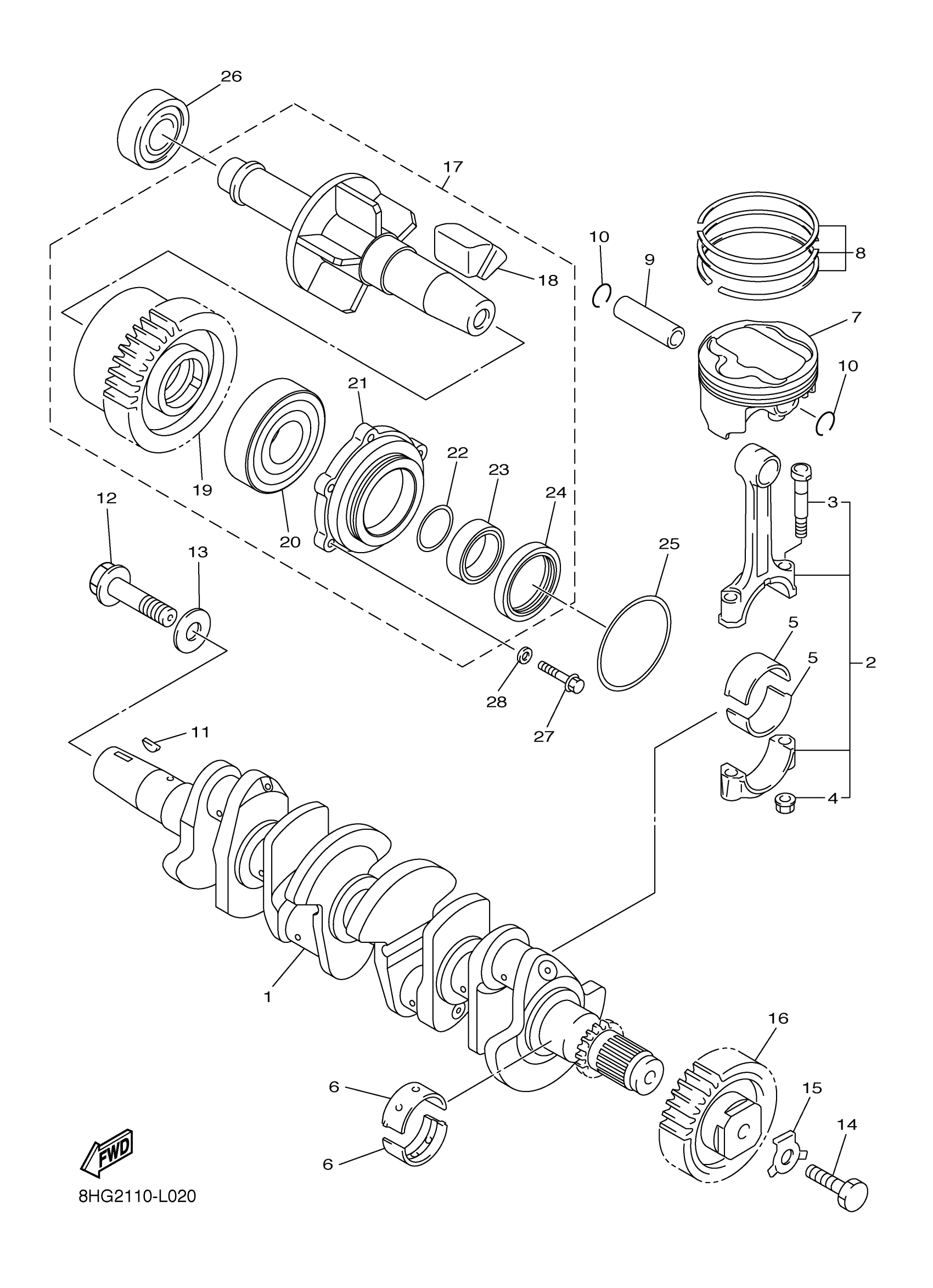

Yamaha RX10PER (APEX) 8HG50 2014 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT

8FP-11411-00-00

Unavailable

2

CONNECTING ROD ASSY

8HG-11650-00-00

Unavailable

3

BOLT, CONNECTING ROD

5JW-11654-00-00

$5.09

4

NUT (11H)

90179-08327-00

$6.52

5

PLANE BEARING, CONNECTING ROD

3GM-11656-00-00

$28.70

5

PLANE BEARING, CONNECTING ROD

3GM-11656-10-00

$28.64

5

PLANE BEARING, CONNECTING ROD

3GM-11656-A0-00

$24.55

5

PLANE BEARING, CONNECTING ROD

3GM-11656-B0-00

$24.49

6

PLANE BEARING, CRANKSHAFT 1

8FA-11416-00-00

$16.02

6

PLANE BEARING, CRANKSHAFT 1

8FA-11416-10-00

$13.70

6

PLANE BEARING, CRANKSHAFT 1

8FA-11416-20-00

$17.74

6

PLANE BEARING, CRANKSHAFT 1

8FA-11416-A0-00

$17.91

6

PLANE BEARING, CRANKSHAFT 1

8FA-11416-B0-00

$17.26

7

PISTON (STD)

8HG-11631-00-00

$86.36

8

PISTON RING SET (STD)

8HG-11603-00-00

$49.91

9

PIN, PISTON

4XV-11633-00-00

Unavailable

10

CLIP (1J7)

90468-12069-00

Unavailable

11

KEY, WOODRUFF (26H)

90280-05029-00

Unavailable

12

BOLT, FLANGE

90105-12032-00

Unavailable

13

WASHER (838)

90201-12191-00

Unavailable

14

BOLT

90101-10009-00

Unavailable

15

WASHER, LOCK

90215-10001-00

Unavailable

16

GEAR, PRIMARY DRIVE

8FP-16111-00-00

Unavailable

17

SHAFT ASSY

8FP-11406-00-00

Unavailable

18

ABSORBER 1

8FP-16155-00-00

Unavailable

19

GEAR, PRIMARY DRIVEN

8FP-16151-00-00

Unavailable

20

BEARING

93306-30636-00

Unavailable

21

HOUSING, BEARING

8FP-16775-00-00

Unavailable

22

O-RING(36Y)

93210-30660-00

Unavailable

23

COLLAR

8FA-11478-00-00

Unavailable

24

OIL SEAL

93102-40023-00

Unavailable

25

O-RING (4G0)

93210-56459-00

Unavailable

26

BEARING

93306-27209-00

Unavailable

27

BOLT, FLANGE

95817-06025-00

Unavailable

28

GASKET (4V2)

90430-06166-00

Unavailable
