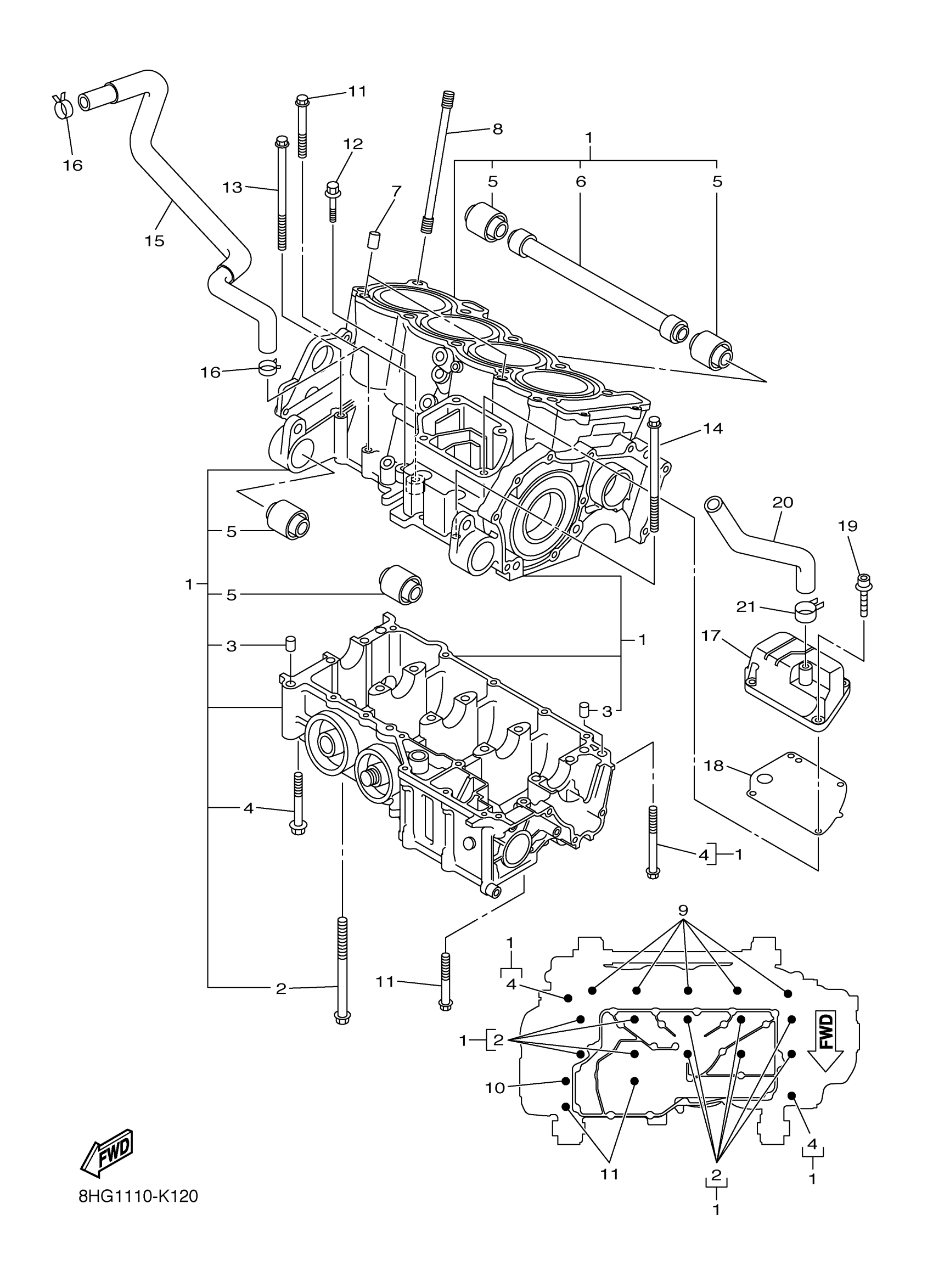

Yamaha RX10PER (APEX) 8HG50 2014 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

8FP-15100-08-00

Unavailable

2

BOLT, WITH WASHER

90119-09004-00

$11.49

3

PIN, DOWEL(3VD)

99530-10114-00

$2.55

4

BOLT

90109-06100-00

$8.49

5

DAMPER

8FA-2139X-00-00

Unavailable

6

SPACER

8FA-21459-00-00

Unavailable

7

PIN, DOWEL(3VD)

99530-10114-00

$2.55

8

BOLT, STUD

90116-10619-00

$11.49

9

BOLT, FLANGE

95812-06055-00

$1.75

10

BOLT, FLANGE

95817-06025-00

Unavailable

11

BOLT, FLANGE

95817-06045-00

$8.49

12

BOLT, FLANGE

95817-06045-00

$8.49

13

BOLT, FLANGE

95812-06080-00

$8.49

14

BOLT, FLANGE

95812-06090-00

$4.24

15

PIPE, BREATHER 1

8FP-11166-00-00

Unavailable

16

CLIP (4V3)

90467-20050-00

Unavailable

17

COVER

8FP-15413-00-00

Unavailable

18

GASKET, CRANKCASE COVER 3

8FP-15462-01-00

Unavailable

19

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

Unavailable

20

PIPE, BREATHER 2

8FP-11167-00-00

Unavailable

21

CLIP

90467-220A0-00

Unavailable
