- RX10PBL (APEX) 8HG20 2012
WATER PUMP

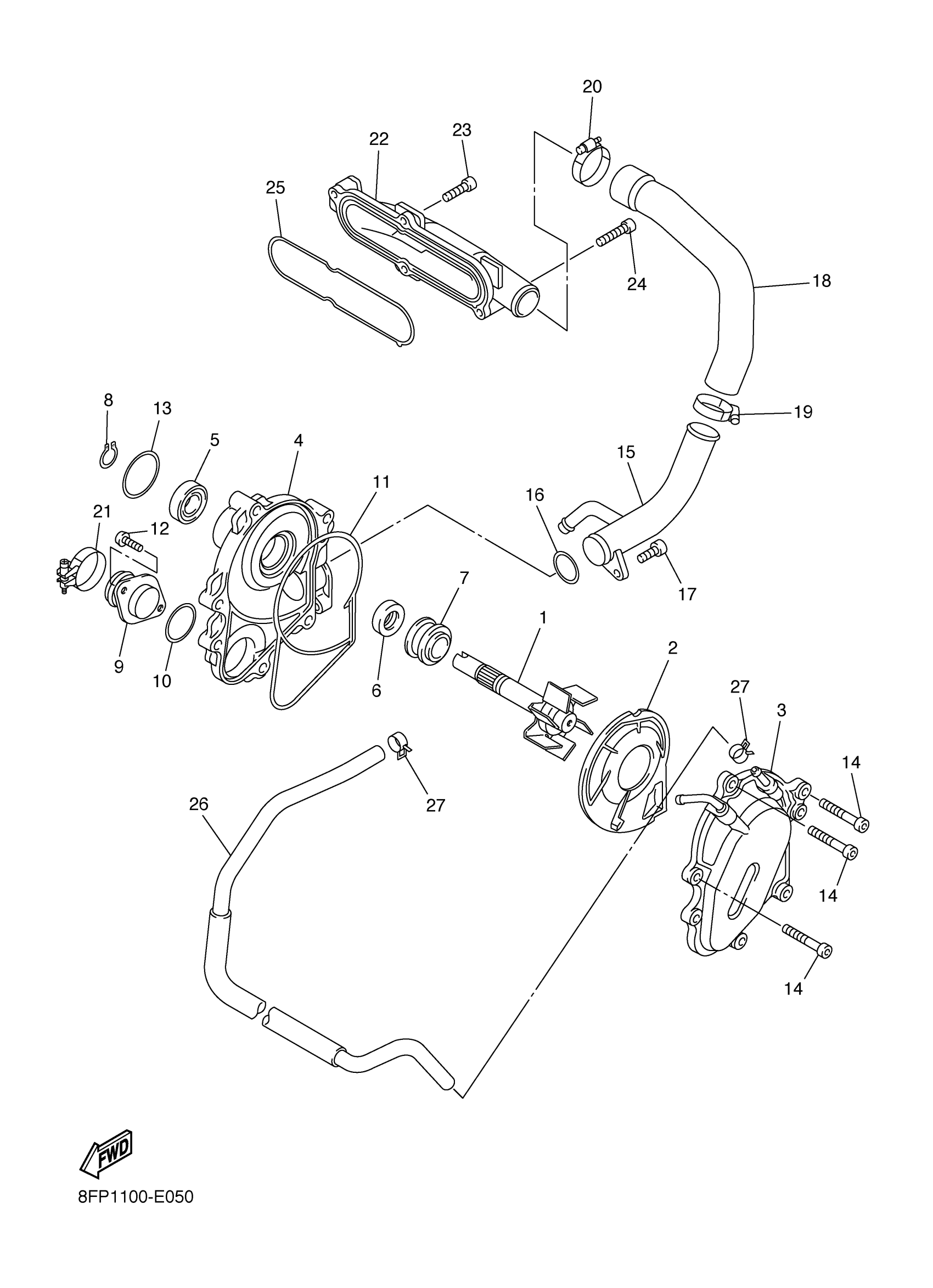

Yamaha RX10PBL (APEX) 8HG20 2012 WATER PUMP Diagram
#
Description
Price
1
IMPELLER SHAFT ASSY
8FA-12450-00-00
$69.99
2
COVER, IMPELLER
8FA-1243G-00-00
Unavailable
3
COVER, HOUSING
8FA-12422-00-00
$76.99
4
HOUSING, WATER PUMP
8FA-12421-00-00
Unavailable
5
BRG,R-B 6001 28MM 28G KY
93306-00105-00
$30.99
6
OIL SEAL
93101-12173-00
$13.49
7
SEAL, MECHANICAL
11H-12438-10-00
$62.99
8
CIRCLIP(10Y)
99009-12400-00
$3.59
9
JOINT 2
8FA-1247A-00-00
Unavailable
10
O-RING
93210-22M93-00
Unavailable
11
O-RING
8FA-12439-00-00
$14.49
12
SCREW, TAPPING
90167-05004-00
$0.37
13
O-RING (22F)
93210-38516-00
Unavailable
14
BOLT(J17)
91312-06035-00
$3.28
15
PIPE 1
8FA-12481-00-00
Unavailable
16
O-RING
93210-235A1-00
Unavailable
17
BOLT (33M)
91312-06014-00
Unavailable
18
HOSE 8
8HG-12552-00-00
Unavailable
19
HOSE CLAMP ASSY
90450-35001-00
Unavailable
20
HOSE CLAMP ASSY(3GM)
90450-38040-00
Unavailable
21
HOSE CLAMP ASSY
90450-32002-00
Unavailable
22
JOINT 1
8FP-12469-00-00
Unavailable
23
BOLT,SOCKET HEAD
91314-06020-00
Unavailable
24
BOLT(J17)
91312-06035-00
$3.28
25
GASKET
8FA-12435-00-00
Unavailable
26
PIPE 5
8FA-12485-00-00
Unavailable
27
CLIP(3BM)
90467-10135-00
Unavailable
