- RX10PBL (APEX) 8HG20 2012
TRACK SUSPENSION 2

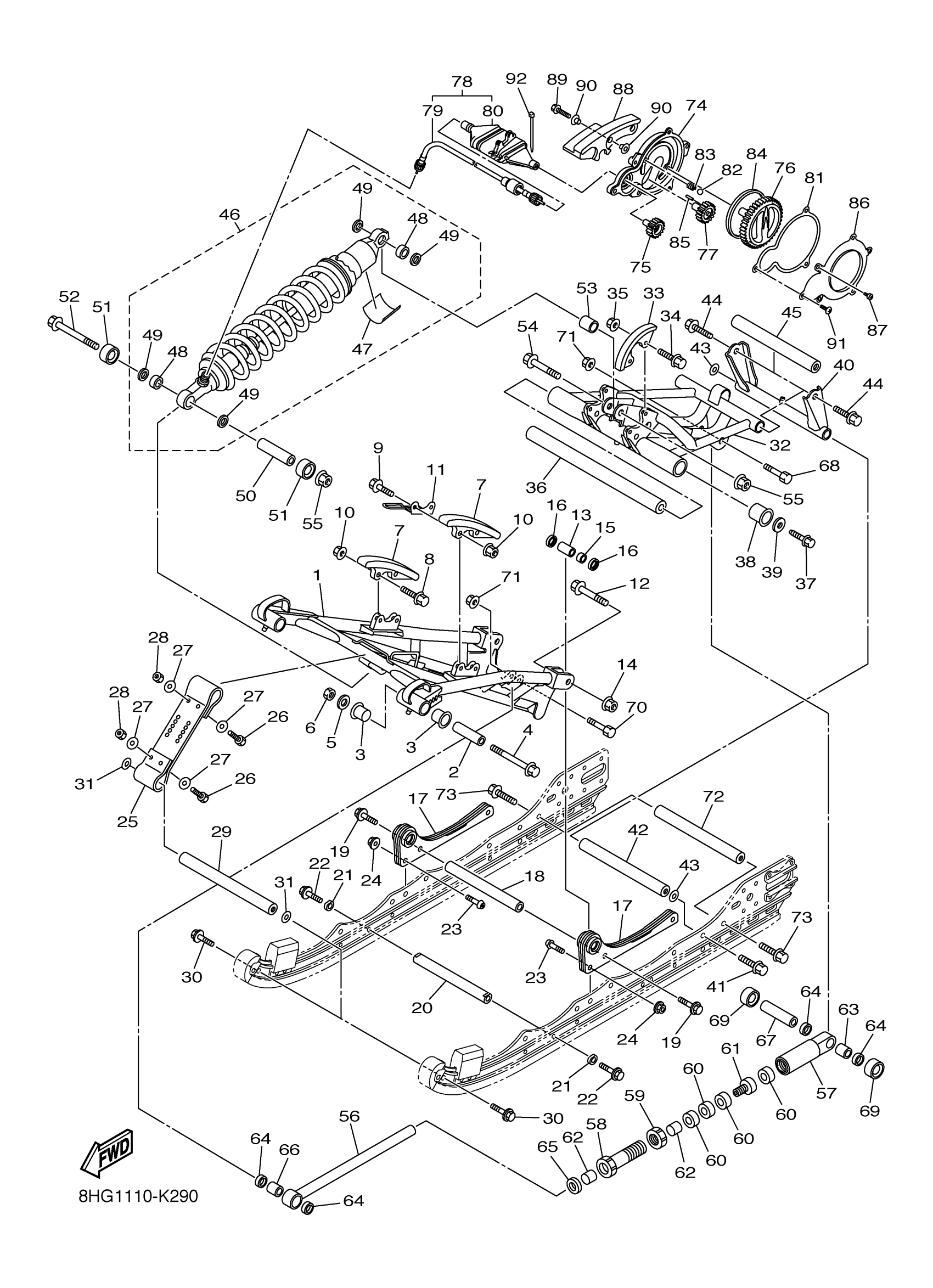

Yamaha RX10PBL (APEX) 8HG20 2012 TRACK SUSPENSION 2 Diagram
#
1
ARM, PIVOT 1
8JA-47331-00-00
Unavailable
2
COLLAR
90387-10042-00
$21.99
3
BUSH
90386-22002-00
$21.99
4
BOLT, FLANGE
90105-10150-00
$12.49
5
WASHER, PLATE
90201-10038-00
$5.60
6
NUT, SELF-LOCKING
90185-10012-00
$9.49
7
RUNNER, SLIDING 2
8F3-47422-01-00
$18.49
8
BOLT, FLANGE
95817-06020-00
$3.81
9
BOLT, FLANGE
95817-06025-00
Unavailable
10
NUT, U FLANGE
95604-06200-00
$8.49
11
PROTECTOR
8FR-47445-00-00
$25.99
12
BOLT, FLANGE
90105-10390-00
$7.49
13
COLLAR
90387-10095-00
$19.99
14
NUT, SELF-LOCKING
90185-10011-00
$5.60
15
BEARING, CYLINDRICAL(4PT)
93315-31750-00
$37.99
16
OIL SEAL
93109-17071-00
Unavailable
17
BRACKET 1
8JA-47415-00-00
Unavailable
18
SHAFT 4
8JA-47486-00-00
Unavailable
19
BOLT, FLANGE
90105-10386-00
Unavailable
20
SHAFT 4
8GL-47486-00-00
Unavailable
21
SPACER
8GL-47341-00-00
Unavailable
22
BOLT, FLANGE
95817-10030-00
Unavailable
23
BOLT,HEX. SOCKET BUTTON
90111-10046-00
Unavailable
24
NUT, S/L FLANGE
95602-10200-00
Unavailable
25
STOPPER 1
8GM-47495-00-00
Unavailable
26
BOLT, HEXAGON
97017-06025-00
Unavailable
27
WASHER, PLATE
90201-06081-00
Unavailable
28
NUT, NYLON
95707-06300-00
Unavailable
29
SHAFT 3
8FU-47485-00-00
Unavailable
30
BOLT, FLANGE
95817-10030-00
Unavailable
31
WASHER, PLATE (26H)
90201-102G9-00
Unavailable
32
ARM, PIVOT 2
8JB-47332-01-00
Unavailable
33
SLIDER 1
8FT-47441-10-00
Unavailable
34
BOLT, FLANGE
95817-06020-00
$3.81
35
NUT, U FLANGE
95604-06200-00
$8.49
36
SHAFT 2
8FT-47475-00-00
Unavailable
37
BOLT
90109-10032-00
Unavailable
38
BUSH, SOLID(8CJ)
90381-28108-00
Unavailable
39
WASHER, PLATE
90201-10039-00
Unavailable
40
BRACKET 3
8FU-47417-11-00
Unavailable
41
BOLT, FLANGE
95817-10030-00
Unavailable
42
SHAFT 3
8FU-47485-00-00
Unavailable
43
WASHER PLATE (789)
90201-10136-00
Unavailable
44
BOLT, FLANGE
95817-10030-00
Unavailable
45
SHAFT 4
8FU-47486-00-00
Unavailable
46
SHOCK ABSORBER
8HG-47480-00-00
Unavailable
47
LABEL, WARNING
4AA-22259-60-00
Unavailable
48
BEARING
93315-31758-00
Unavailable
49
OIL SEAL
93109-17071-00
Unavailable
50
COLLAR
90387-10034-00
Unavailable
51
SPACER
8FU-47341-00-00
Unavailable
52
BOLT, FLANGE(7LU)
95817-10070-00
Unavailable
53
COLLAR
90387-1012A-00
Unavailable
54
BOLT, FLANGE (8V9)
95812-10045-00
Unavailable
55
NUT, S/L FLANGE
95602-10200-00
Unavailable
56
ROD, CONTROL 1
8JA-4745A-00-00
Unavailable
57
ROD, CONTROL 3
8JA-4745C-00-00
Unavailable
58
ROD, CONTROL 2
8JA-4745B-00-00
Unavailable
59
NUT
8JA-47368-00-00
Unavailable
60
WASHER
8GM-47384-10-00
Unavailable
61
STOPPER, CONT. 1
8FU-4745D-00-00
Unavailable
62
BUSH, BIMETAL FORMED(8CJ)
90384-16251-00
Unavailable
63
BEARING, CYLINDRICAL(1FN)
93315-31841-00
Unavailable
64
OIL SEAL
93109-18001-00
Unavailable
65
SEAL, TRIM DUST
C68-43822-00-00
Unavailable
66
COLLAR
90387-12051-00
Unavailable
67
COLLAR
90387-12052-00
Unavailable
68
BOLT
90101-12043-00
Unavailable
69
SPACER
8JA-47341-00-00
Unavailable
70
BOLT
90101-12042-00
Unavailable
71
NUT, SELF-LOCKING
90185-12007-00
Unavailable
72
SHAFT 3
8ES-47485-00-00
Unavailable
73
BOLT, FLANGE
90105-10209-00
Unavailable
74
HOUSING, ADJUSTER
8FU-474A1-00-00
Unavailable
75
GEAR, DRIVE
8FU-474A2-00-00
Unavailable
76
HANDLE, ADJUSTER
8FU-474A3-00-00
Unavailable
77
GEAR, STOPPER
8FU-474A4-00-00
Unavailable
78
ADJUSTER CABLE ASSY.
8FU-W474A-30-00
Unavailable
79
CABLE, ADJUSTER
8FU-474A5-30-00
Unavailable
80
PROTECTOR
8FU-47445-01-00
Unavailable
81
GASKET, ADJUSTER HOUSING
8FU-474A6-01-00
Unavailable
82
BALL
93501-04011-00
Unavailable
83
SPRING, COMPRESSION
90501-06M35-00
Unavailable
84
SEAL, ADJUSTER HANDLE
8FU-474A7-00-00
Unavailable
85
PIN,DOWEL (603)
93603-12007-00
Unavailable
86
PLATE, GUIDE
8FU-47467-00-00
Unavailable
87
SCREW, PAN HEAD(3LA)
98517-05010-00
Unavailable
88
SLIDER 1
8FU-47441-11-00
Unavailable
89
BOLT, FLANGE
95817-06020-00
$3.81
90
COLLAR (3L1)
90387-07717-00
Unavailable
91
SCREW
90149-06138-00
Unavailable
92
CLAMP
90464-16061-00
Unavailable
