Description

Price

1

TANK, OIL

8FG-21751-02-00

$565.99

2

OIL LEVEL GAUGE ASSY

8FA-85720-01-00

$87.99

3

O-RING

8FP-85075-00-00

$11.49

4

OIL PIPE COMP. 2

8FG-13406-00-00

Unavailable

5

O-RING (603)

93210-19026-00

$8.49

6

BOLT(3MA)

91312-06016-00

$5.60

7

PIPE, OIL TANK BREATHER

8FA-21745-00-00

$11.99

8

PIPE, OIL TANK

8HG-2174N-00-00

Unavailable

9

CONNECTOR

8FG-13446-00-00

$70.99

10

CLIP

90468-08104-00

$3.93

11

CLIP (7K7)

90467-11044-00

$8.49

12

BOLT, FLANGE

95817-08012-00

$5.49

13

GASKET(3AJ)

90430-08204-00

$8.99

14

BOLT, FLANGE

95817-06016-00

$2.75

15

NUT, SELF-LOCKING

95602-08200-00

$3.20

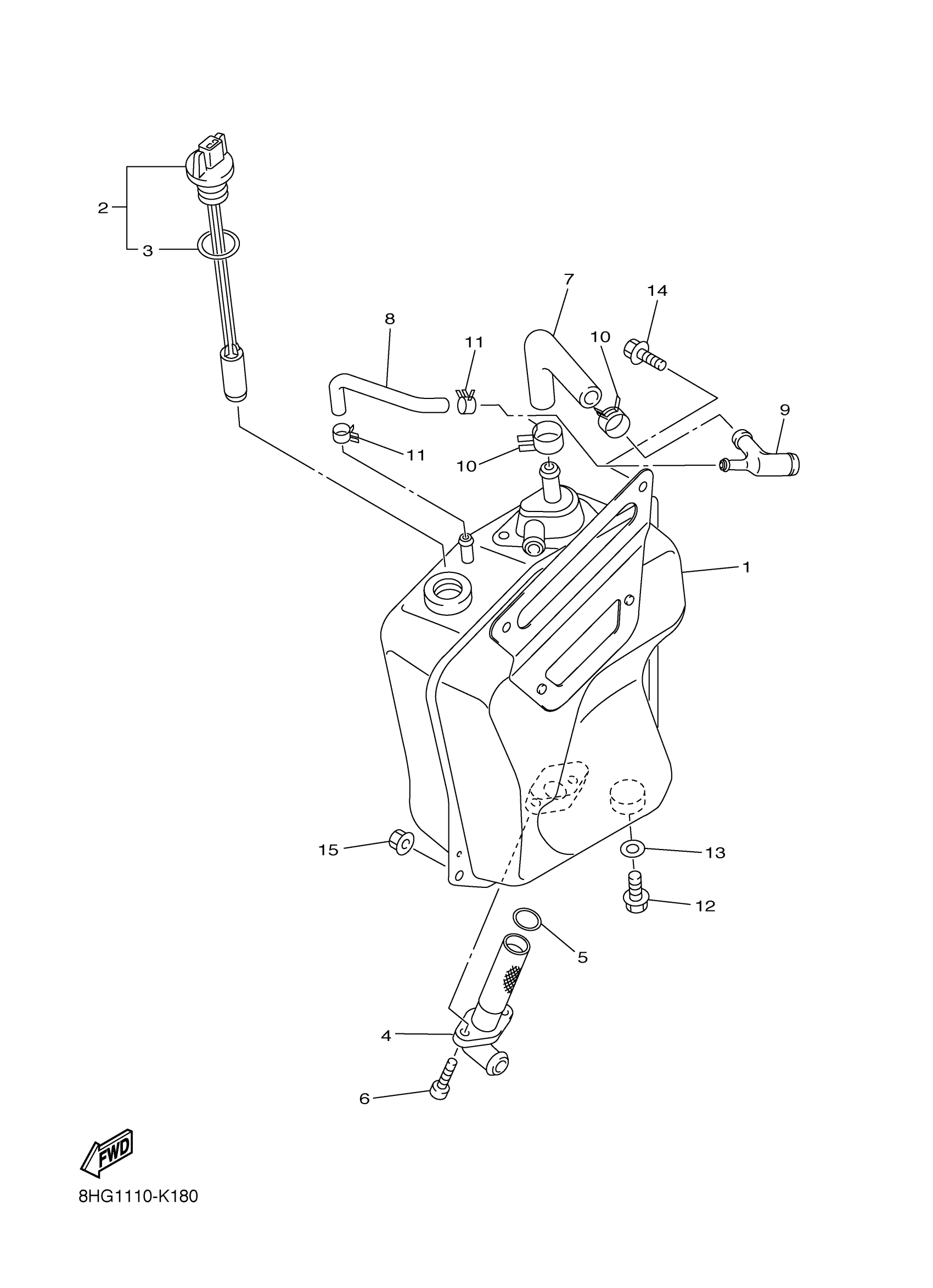

Yamaha RX10PBL (APEX) 8HG20 2012 OIL TANK Diagram

TANK, OIL

OIL LEVEL GAUGE ASSY

O-RING

OIL PIPE COMP. 2

O-RING (603)

BOLT(3MA)

PIPE, OIL TANK BREATHER

PIPE, OIL TANK

CONNECTOR

CLIP

CLIP (7K7)

BOLT, FLANGE

GASKET(3AJ)

BOLT, FLANGE

NUT, SELF-LOCKING
