- RX10PBL (APEX) 8HG20 2012
CRANKSHAFT PISTON

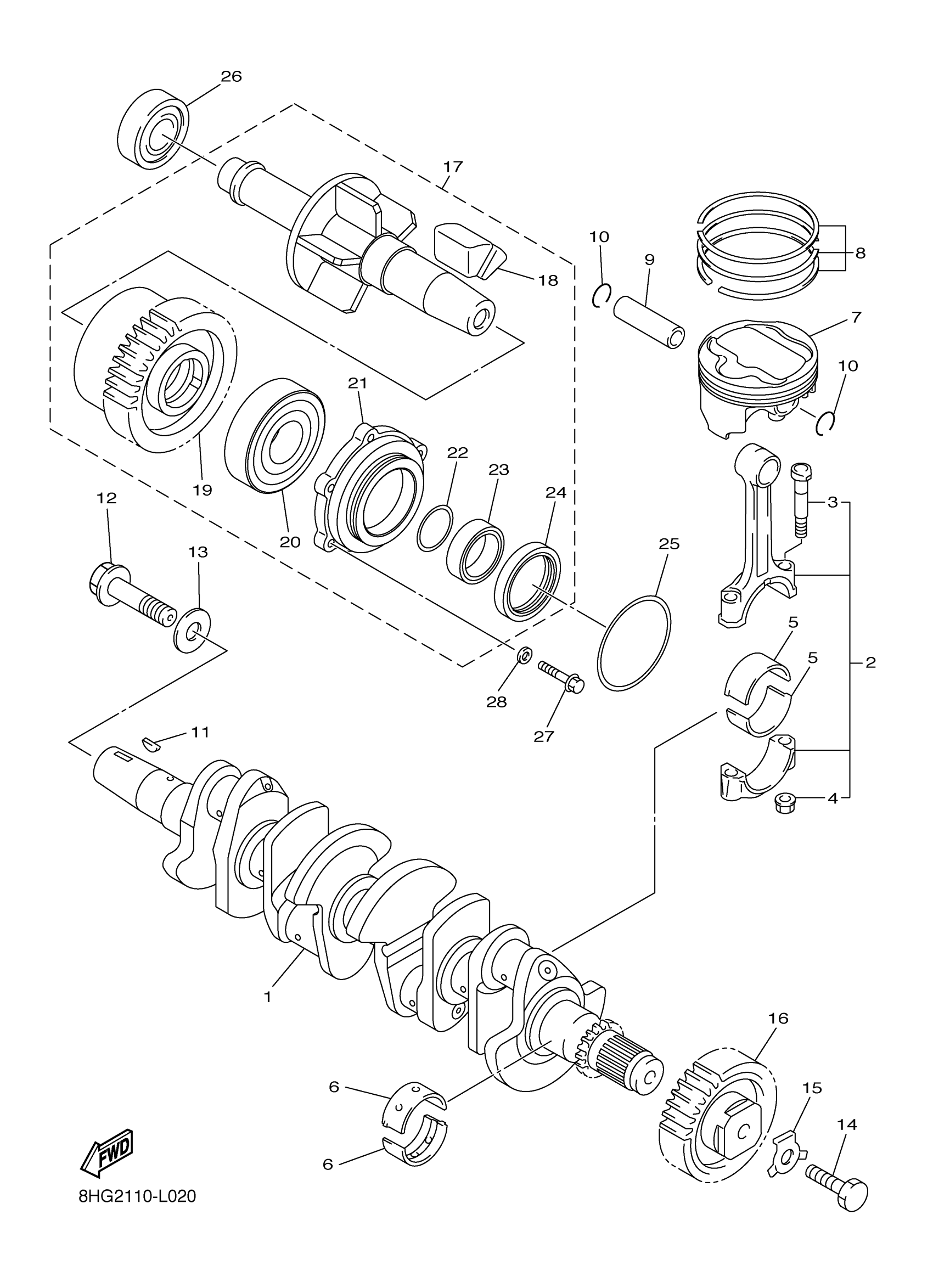

Yamaha RX10PBL (APEX) 8HG20 2012 CRANKSHAFT PISTON Diagram
#
1
CRANKSHAFT
8FP-11411-00-00
Unavailable
2
CONNECTING ROD ASSY
8HG-11650-00-00
Unavailable
3
BOLT, CONNECTING ROD
5JW-11654-00-00
$5.49
4
NUT (11H)
90179-08327-00
$9.49
5
PLANE BEARING, CONNECTING ROD
3GM-11656-00-00
$34.99
5
PLANE BEARING, CONNECTING ROD
3GM-11656-10-00
$34.99
5
PLANE BEARING, CONNECTING ROD
3GM-11656-A0-00
$30.99
5
PLANE BEARING, CONNECTING ROD
3GM-11656-B0-00
$30.99
6
PLANE BEARING, CRANKSHAFT 1
8FA-11416-00-00
$19.49
6
PLANE BEARING, CRANKSHAFT 1
8FA-11416-10-00
$20.99
6
PLANE BEARING, CRANKSHAFT 1
8FA-11416-20-00
$19.99
6
PLANE BEARING, CRANKSHAFT 1
8FA-11416-A0-00
$22.99
6
PLANE BEARING, CRANKSHAFT 1
8FA-11416-B0-00
$22.99
7
PISTON (STD)
8HG-11631-00-00
$96.99
8
PISTON RING SET (STD)
8HG-11603-00-00
$82.99
9
PIN, PISTON
4XV-11633-00-00
Unavailable
10
CLIP (1J7)
90468-12069-00
Unavailable
11
KEY, WOODRUFF (26H)
90280-05029-00
Unavailable
12
BOLT, FLANGE
90105-12032-00
Unavailable
13
WASHER (838)
90201-12191-00
Unavailable
14
BOLT
90101-10009-00
Unavailable
15
WASHER, LOCK
90215-10001-00
Unavailable
16
GEAR, PRIMARY DRIVE
8FP-16111-00-00
Unavailable
17
SHAFT ASSY
8FP-11406-00-00
Unavailable
18
ABSORBER 1
8FP-16155-00-00
Unavailable
19
GEAR, PRIMARY DRIVEN
8FP-16151-00-00
Unavailable
20
BEARING
93306-30636-00
Unavailable
21
HOUSING, BEARING
8FP-16775-00-00
Unavailable
22
O-RING(36Y)
93210-30660-00
Unavailable
23
COLLAR
8FA-11478-00-00
Unavailable
24
OIL SEAL
93102-40023-00
Unavailable
25
O-RING (4G0)
93210-56459-00
Unavailable
26
BEARING
93306-27209-00
Unavailable
27
BOLT, FLANGE
95817-06025-00
Unavailable
28
GASKET (4V2)
90430-06166-00
Unavailable
