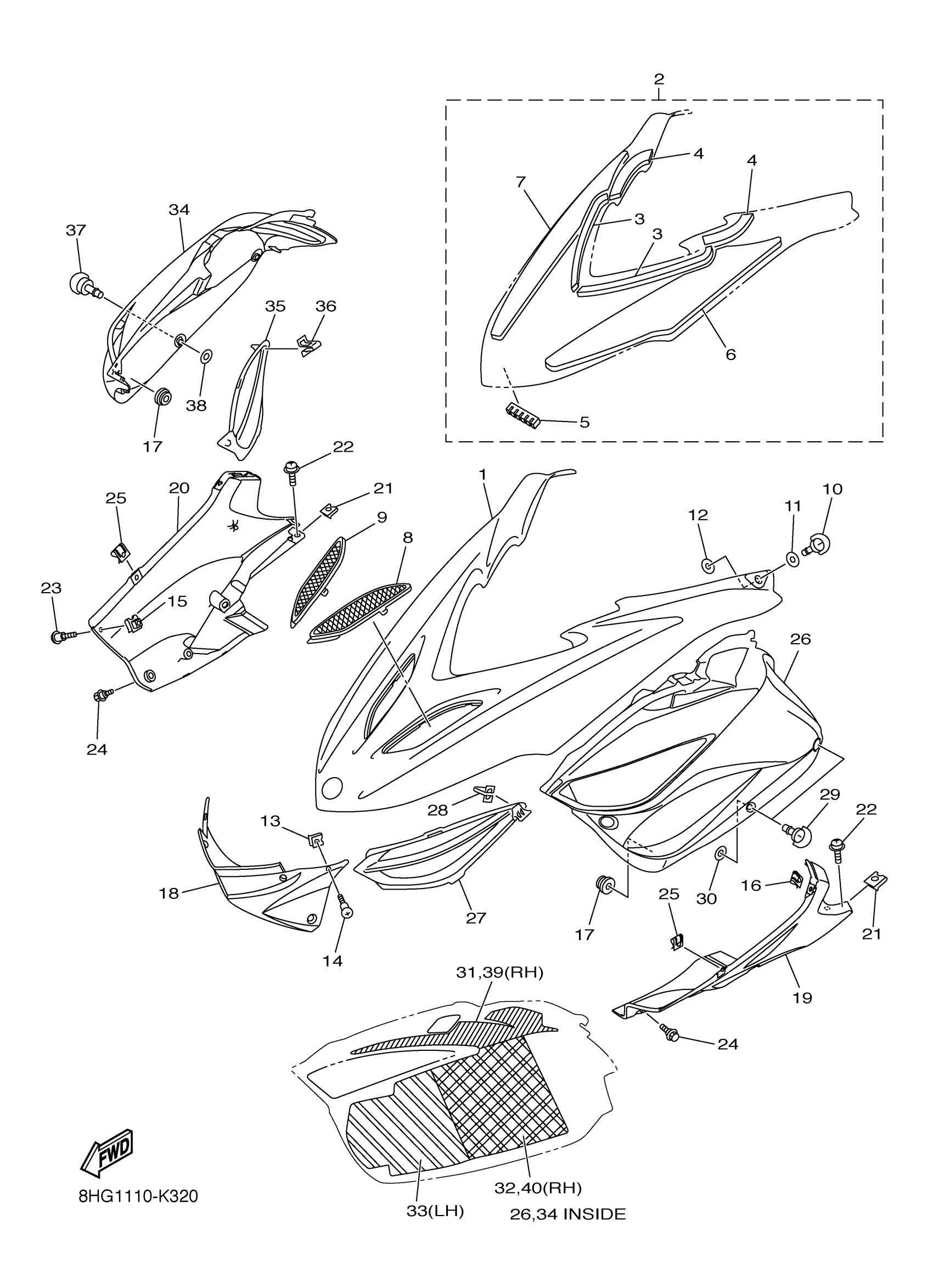

Yamaha RX10PAR (APEX) 8HG10 2011 SHROUD Diagram
#
1
SHROUD
8HG-77111-00-P0
$355.99
2
LINING SET
8HG-W7726-00-00
$24.99
3
TRIM 1
8HG-77165-00-00
Unavailable
4
TRIM 2
8HG-77166-00-00
Unavailable
5
GUIDE 1
8FP-77123-00-00
$1.43
6
DAMPER, NOISE 11
8HG-77271-00-00
Unavailable
7
DAMPER, NOISE 11
8HG-77271-10-00
Unavailable
8
LOUVER 3
8HG-77133-00-00
Unavailable
9
LOUVER 4
8HG-77134-00-00
Unavailable
10
HEAD
3FV-28386-00-00
$40.99
11
WASHER, SPECIAL 1
2TK-21757-00-00
$3.38
12
WASHER, SPECIAL 1
5TJ-21757-00-00
$7.99
13
NUT, SPRING(4ES)
90183-06069-00
Unavailable
14
SCREW, BINDING
90154-06009-00
$4.61
15
NUT, SPRING
90183-06100-00
$10.49
16
PLATE, SPRING
4XV-2177L-01-00
Unavailable
17
GROMMET
90480-13019-00
Unavailable
18
PANEL, SUB FRAME 1
8FA-21912-00-00
Unavailable
19
HOOD 1
8FP-21982-00-00
Unavailable
20
HOOD 2
8FP-21983-00-00
Unavailable
21
NUT, SPRING(4ES)
90183-06069-00
Unavailable
22
SCREW, WITH WASHER
90159-06011-00
Unavailable
23
SCREW, BINDING
90154-06009-00
$4.61
24
BOLT
90109-06220-00
Unavailable
25
PLATE, SPRING
4XV-2177L-01-00
Unavailable
26
HOOD 3
8HG-2197H-00-00
Unavailable
27
LOUVER 5
8HG-77109-00-00
Unavailable
28
CLIP
90468-06001-00
Unavailable
29
HEAD
3FV-28386-00-00
$40.99
30
WASHER, SPECIAL 1
5TJ-21757-00-00
$7.99
31
DAMPER, NOISE 12
8HG-77272-00-00
Unavailable
32
DAMPER, NOISE 13
8HG-77273-00-00
Unavailable
33
DAMPER, NOISE 14
8HG-77274-00-00
Unavailable
34
HOOD 4
8HG-2198H-00-00
Unavailable
35
LOUVER 6
8HG-77108-00-00
Unavailable
36
CLIP
90468-06001-00
Unavailable
37
HEAD
3FV-28386-00-00
$40.99
38
WASHER, SPECIAL 1
5TJ-21757-00-00
$7.99
39
DAMPER, NOISE 15
8HG-77275-00-00
Unavailable
40
DAMPER, NOISE 16
8HG-77276-00-00
Unavailable
