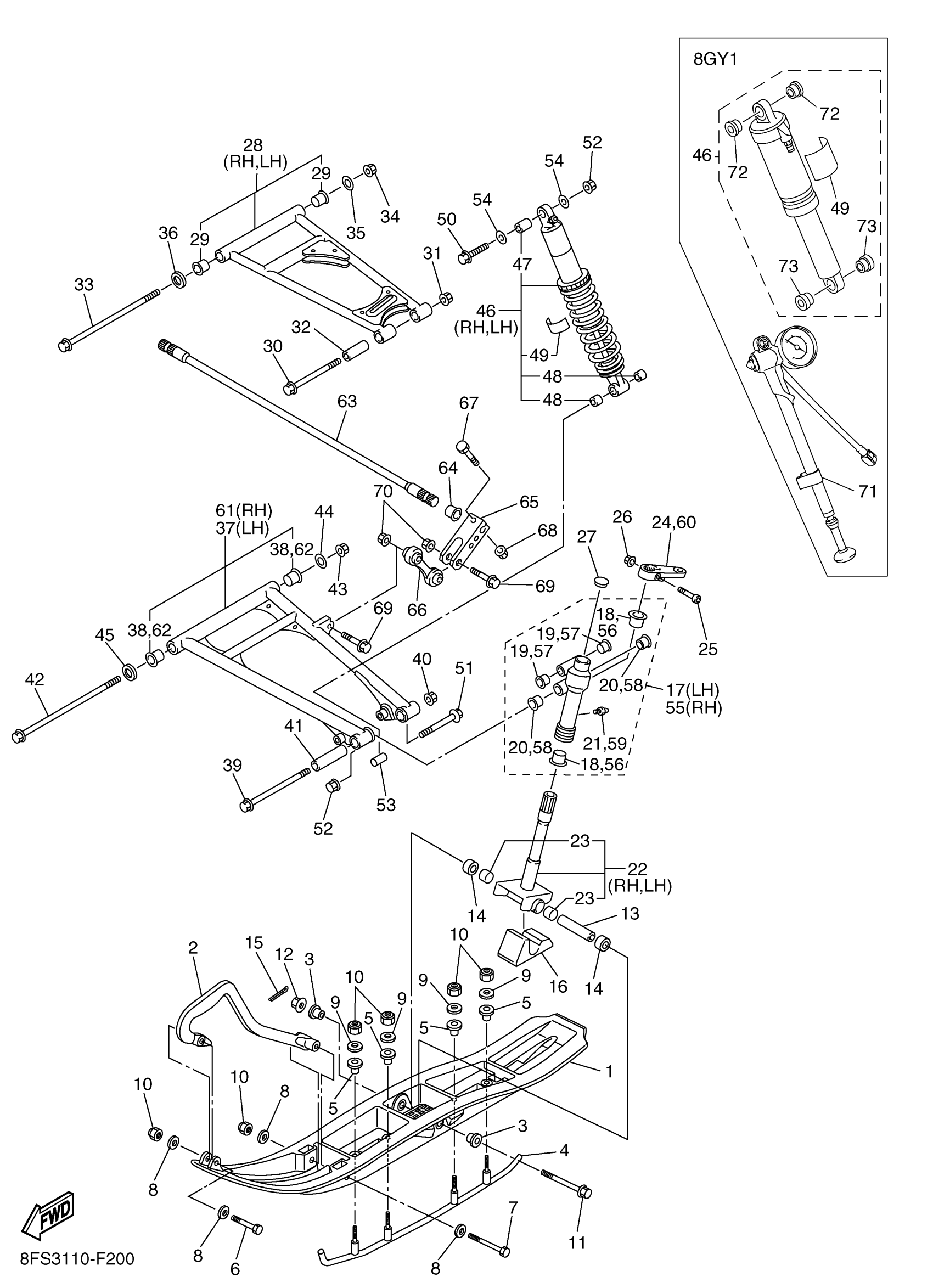

Yamaha RX10MW (APEX MOUNTAIN) 8FS3 2007 SKI Diagram
#
1
SKI 1
8FK-23711-00-BK
Unavailable
2
BLACK 8DM HANDLE PLASTIC
8DM-23712-00-BK
Unavailable
2
BLUE 8DM HANDLE PLASTIC
8DM-23712-00-BU
Unavailable
3
. COLLAR 1
8EX-F3754-00-00
Unavailable
4
RUNNER
8EN-23731-00-XX
Unavailable
5
BUSH, SKI 1
8EK-F3751-00-00
Unavailable
6
BOLT, HEXAGON
97017-08055-00
$9.49
7
BOLT, HEXAGON
97027-08100-00
$5.60
8
WASHER, PLATE (3L7)
90201-08784-00
$3.23
9
WASHER, PLATE(3XP)
90201-086P8-00
$4.77
10
NUT, NYLON
95717-08300-00
$2.70
11
BOLT, FLANGE
90105-10410-00
$14.99
12
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
13
COLLAR
90387-10036-00
$22.99
14
COLLAR
90387-16013-00
$4.88
15
PIN, COTTER
91490-20025-00
Unavailable
16
STOPPER 1
8CR-23743-10-00
Unavailable
17
STEERING KNUCKLE ASSY (LEFT)
8FA-23501-01-00
Unavailable
17
STEERING KNUCKLE ASSY (LEFT) (DEEP RED METALLIC K)
8FA-23501-10-00
Unavailable
18
BUSH, SOLID
90381-25115-00
Unavailable
19
BUSH, SOLID
90381-15N50-00
Unavailable
20
BUSH, SOLID
90381-18N51-00
Unavailable
21
NIPPLE, GREASE
93700-06M03-00
Unavailable
22
COLUMN, SKI ASSY
8FG-23803-00-00
Unavailable
23
BUSH, BIMETAL FORMED
90384-16N51-00
Unavailable
24
ARM, OUTSIDE 1
8FA-23851-00-00
Unavailable
25
BOLT, HEXAGON SOCKET HEAD
90110-08N53-00
Unavailable
26
NUT, SELF-LOCKING
90185-08169-00
Unavailable
27
CAP, CASE
3YK-22472-40-00
Unavailable
28
FRONT UPPER ARM COMP.
8GY-23540-10-00
Unavailable
28
FRONT UPPER ARM COMP.
8GY-23540-30-00
Unavailable
29
BUSH, SOLID
90381-15N50-00
Unavailable
30
BOLT, FLANGE
90105-10N56-00
Unavailable
31
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
32
COLLAR
90387-10099-00
Unavailable
33
BOLT, FLANGE
90105-10N54-00
Unavailable
34
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
35
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
36
WASHER
90209-15N50-00
Unavailable
37
FRONT LOWER ARM COMP. (LEFT)
8GY-23570-10-00
Unavailable
37
FRONT LOWER ARM COMP. (LEFT)
8GY-23570-30-00
Unavailable
38
BUSH, SOLID
90381-16N51-00
Unavailable
39
BOLT, FLANGE
90105-12N54-00
Unavailable
40
NUT, U FLANGE
95607-12200-00
Unavailable
41
COLLAR
90387-12N54-00
Unavailable
42
BOLT, FLANGE
90105-10N55-00
Unavailable
43
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
44
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
45
WASHER
90209-15N50-00
Unavailable
46
ABSORBER ASSY 1 (MELLOW WHITE)
8FS-2376A-30-00
Unavailable
46
ABSORBER ASSY 1
8GY-F376A-00-00
Unavailable
47
DAMPER, BUSH B
8FA-2331R-00-00
Unavailable
48
BUSH, BIMETAL FORMED
90384-15N51-00
Unavailable
49
LABEL, WARNING
4AA-22259-60-00
Unavailable
49
LABEL,WARNING
8GT-F2259-00-00
Unavailable
50
BOLT, WASHER BASED (4K0)
90105-10169-00
Unavailable
51
BOLT, WASHER BASED(59V)
90105-10392-00
Unavailable
52
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
53
COLLAR
90387-10N59-00
Unavailable
54
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
55
STEERING KNUCKLE ASSY (RIGHT)
8FA-23502-01-00
Unavailable
55
STEERING KNUCKLE ASSY (RIGHT) (DEEP RED METALLIC K)
8FA-23502-10-00
Unavailable
56
BUSH, SOLID
90381-25115-00
Unavailable
57
BUSH, SOLID
90381-15N50-00
Unavailable
58
BUSH, SOLID
90381-18N51-00
Unavailable
59
NIPPLE, GREASE
93700-06M03-00
Unavailable
60
ARM, OUTSIDE 2
8FA-23852-00-00
Unavailable
61
FRONT LOWER ARM COMP. (RIGHT)
8GY-23580-10-00
Unavailable
61
FRONT LOWER ARM COMP. (RIGHT)
8GY-23580-30-00
Unavailable
62
BUSH, SOLID
90381-16N51-00
Unavailable
63
BAR, STABILIZER FRONT
8FA-2386E-00-00
Unavailable
64
BUSH, STABILIZER FRONT
8FA-2386G-00-00
Unavailable
65
ARM, STABILIZER
8FA-2386L-10-00
Unavailable
66
JOINT, STABILIZER 1
8ES-2385L-00-00
Unavailable
67
BOLT, HEXAGON (538)
90101-06278-00
Unavailable
68
NUT, U FLANGE
95604-06200-00
Unavailable
69
BOLT, FLANGE(4FM)
95814-08030-00
Unavailable
70
NUT, U FLANGE(4KG)
95604-08200-00
Unavailable
71
FOX AIR PUMP
8FP-23703-FS-00
Unavailable
72
BUSH
8HR-2376B-09-00
Unavailable
73
BUSH
8HR-2376B-19-00
Unavailable
