- RX10MW (APEX MOUNTAIN) 8FS3 2007
RADIATOR HOSE

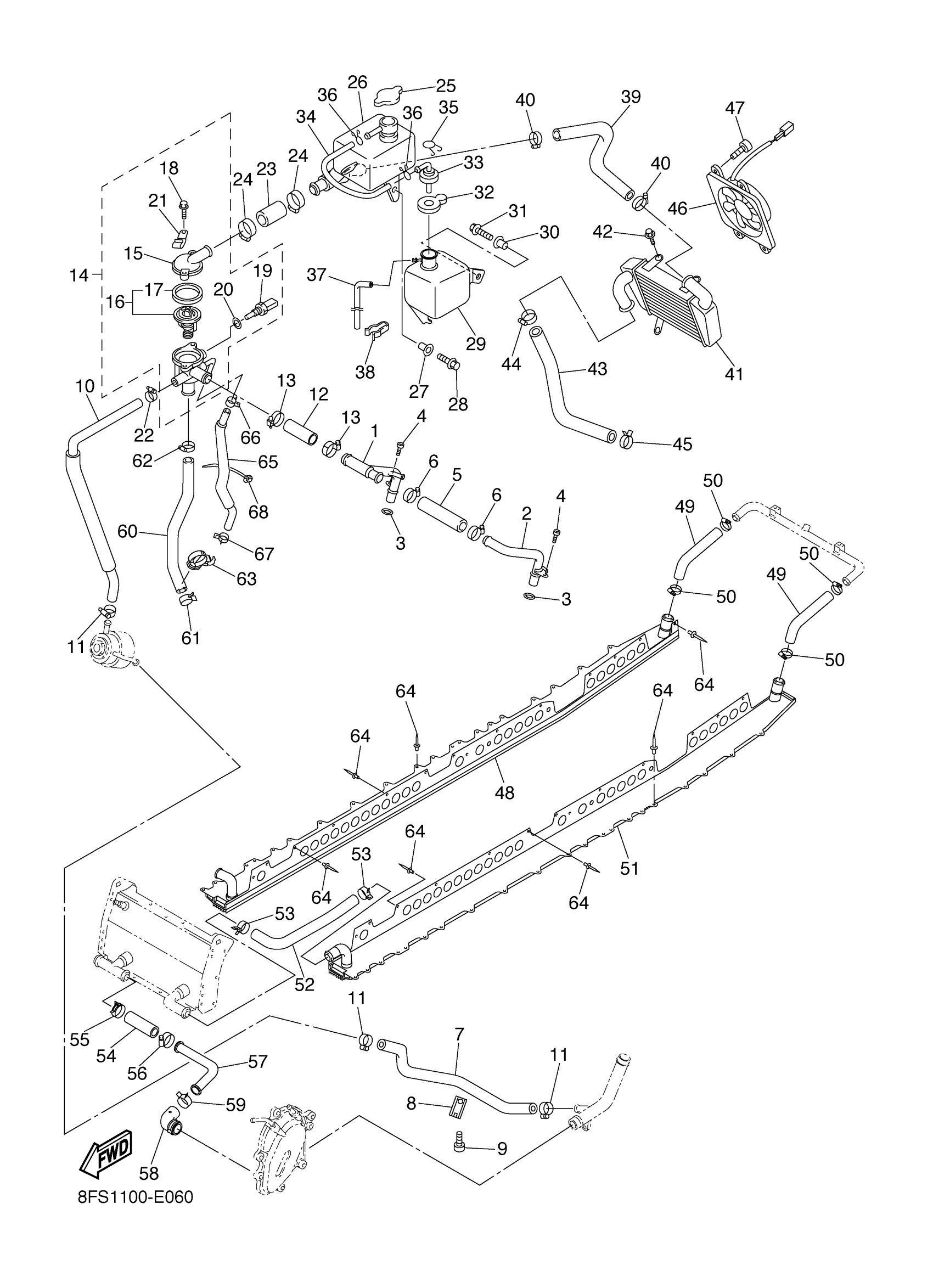

Yamaha RX10MW (APEX MOUNTAIN) 8FS3 2007 RADIATOR HOSE Diagram
#
1
PIPE 2
8FP-12482-01-00
Unavailable
2
PIPE 3
8FP-12483-01-00
Unavailable
3
O-RING (716)
93210-18417-00
$7.49
4
BOLT,SOCKET
91317-06016-00
$1.25
5
HOSE 1
8FA-1243A-00-00
Unavailable
6
HOSE CLAMP ASSY
90450-28001-00
$14.99
7
HOSE 5
8FA-12588-00-00
Unavailable
8
CLAMP 1
8FA-12491-00-00
Unavailable
9
BOLT,SOCKET
91317-06012-00
$8.49
10
HOSE 6
8FA-12589-01-00
Unavailable
11
HOSE CLAMP ASSY
90450-18M09-00
Unavailable
12
HOSE 2
8FP-1243E-00-00
Unavailable
13
HOSE CLAMP ASSY
90450-35001-00
$5.60
14
JOINT ASSY
8FP-12580-00-00
Unavailable
15
COVER, THERMOSTAT
8FP-12413-00-00
Unavailable
16
THERMOSTAT ASSY
8FP-12410-00-00
Unavailable
17
SEAL, THERMOSTAT
8FP-12412-00-00
Unavailable
18
. BOLT, FLANGE
95027-06020-00
Unavailable
19
THERMOSENSOR ASSY
8CC-85790-01-00
Unavailable
20
WASHER, PLATE
90201-12790-00
Unavailable
21
. CLAMP
90465-06M28-00
Unavailable
22
HOSE CLAMP ASSY
90450-18M09-00
Unavailable
23
HOSE,3
8FP-1243F-00-00
Unavailable
24
HOSE CLAMP ASSY
90450-35001-00
$5.60
25
CAP, RADIATOR
4FL-12462-00-00
Unavailable
26
TANK, RESERVE
8FP-1249B-01-00
Unavailable
27
COLLAR (838-84757-00)
90387-06024-00
Unavailable
28
BOLT, FLANGE
95817-06020-00
Unavailable
29
TANK, RECOVERY
8FP-21871-01-00
Unavailable
30
COLLAR (8G8)
90387-06648-00
Unavailable
31
BOLT, FLANGE
95817-06016-00
Unavailable
32
CAP
8FP-21875-00-00
Unavailable
33
ELBOW
26H-21828-00-00
Unavailable
34
HOSE (L180)
90445-094K7-00
Unavailable
35
CLIP(72X)
90467-11M08-00
Unavailable
36
CLIP 101235600
90467-08003-00
Unavailable
37
HOSE (L600)
90445-083J5-00
Unavailable
38
CLAMP(53Y)
90464-15065-00
Unavailable
39
HOSE, 4
8FP-1244G-00-00
Unavailable
40
HOSE CLAMP ASSY
90450-35001-00
$5.60
41
RADIATOR ASSY
8GS-12461-00-00
Unavailable
42
BOLT, FLANGE
95817-06016-00
Unavailable
43
HOSE 5
8FP-1244H-02-00
Unavailable
44
HOSE CLAMP ASSY
90450-35001-00
$5.60
45
CLIP (8M6)
90467-28046-00
Unavailable
46
BLOWER ASSY
8FP-12405-01-00
Unavailable
47
SCREW, BINDING
98907-05016-00
Unavailable
48
HEAT EXCHANGER
8FS-1240F-00-00
Unavailable
49
PIPE 6
8FS-12476-00-00
Unavailable
50
HOSE CLAMP ASSY
90450-35001-00
$5.60
51
HEAT EXCHANGER
8FS-1240E-00-00
Unavailable
52
PIPE 7
8FA-12477-00-00
Unavailable
53
CLIP (8M6)
90467-28046-00
Unavailable
54
PIPE 8
8FP-1248A-00-00
Unavailable
55
CLIP (8M6)
90467-28046-00
Unavailable
56
HOSE CLAMP ASSY
90450-35001-00
$5.60
57
PIPE, WATER
8FP-12564-01-00
Unavailable
58
JOINT
8FA-12479-02-00
Unavailable
59
HOSE CLAMP ASSY
90450-32002-00
Unavailable
60
PIPE 9
8FA-1248E-01-00
Unavailable
61
CLIP (8M6)
90467-28046-00
Unavailable
62
HOSE CLAMP ASSY
90450-35001-00
$5.60
63
CLAMP
90464-36001-00
Unavailable
64
RIVET, BLIND
90267-47195-00
Unavailable
65
HOSE 4
8FA-12579-00-00
Unavailable
66
CLIP(3BM)
90467-10135-00
Unavailable
67
CLIP (7K7)
90467-11044-00
Unavailable
68
CLAMP(4FM)
90464-15195-00
Unavailable
