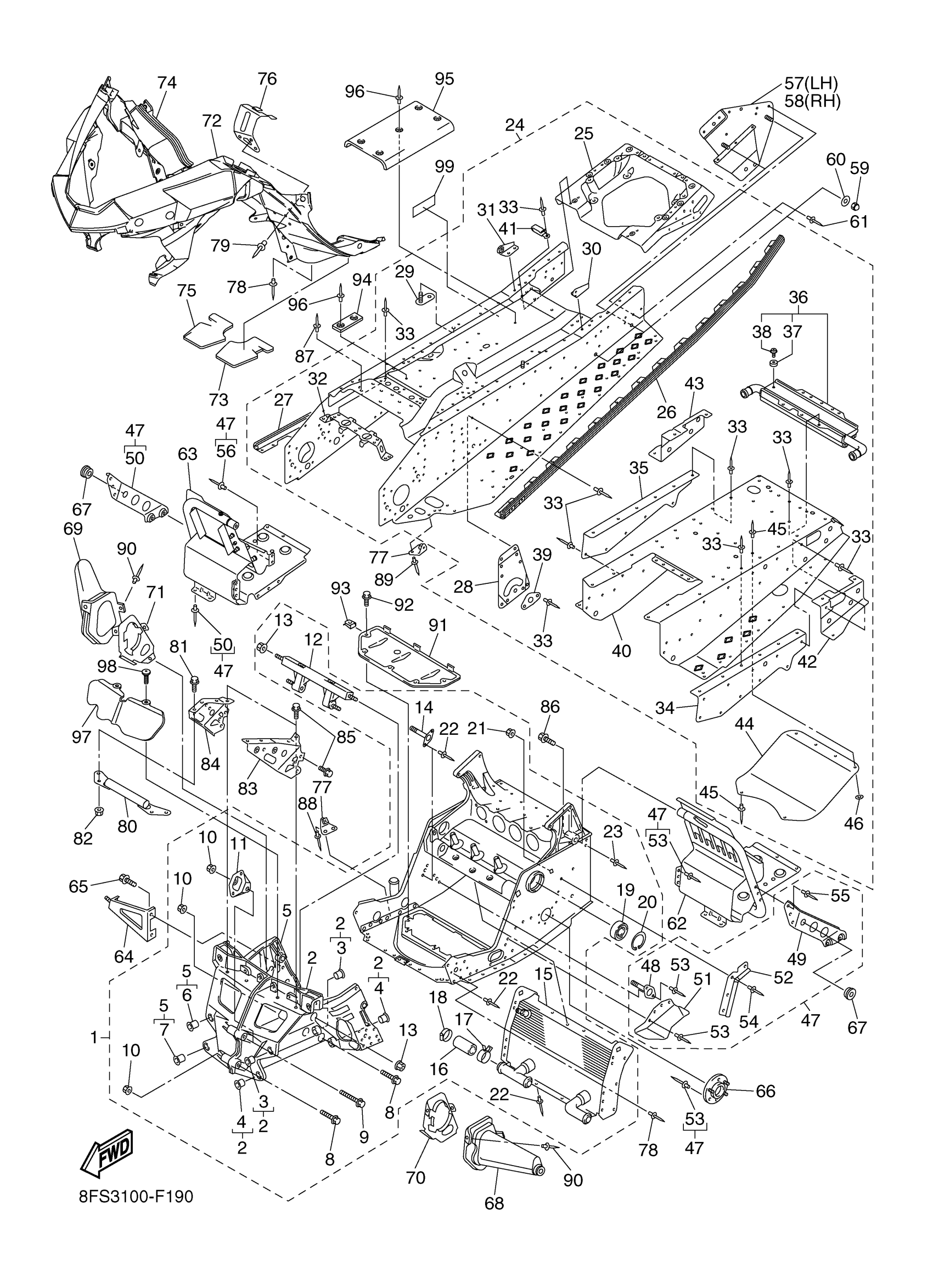

Yamaha RX10MW (APEX MOUNTAIN) 8FS3 2007 FRAME Diagram
#
1
FRONT FRAME COMP.
8FS-21940-01-00
Unavailable
2
BULKHEAD
8FA-W2197-13-00
$721.99
3
BUSH, SOLID
90381-15001-00
$5.60
4
BUSH, SOLID
90381-16004-00
$16.99
5
BULKHEAD 2
8FA-W2198-20-00
Unavailable
6
BUSH, SOLID
90381-15001-00
$5.60
7
BUSH, SOLID
90381-16004-00
$16.99
8
BOLT, FLANGE
95817-08060-00
$3.76
9
BOLT, WASHER BASED
90105-084A1-00
$10.49
10
NUT, SELF-LOCKING
90185-08169-00
$8.49
11
BRACKET, REGULATOR
8FA-2128A-01-00
Unavailable
12
BRACKET, STEERING 1
8FG-21947-00-00
$180.99
13
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
14
BRACKET, CHAIN HOUSING
8FS-21939-00-00
$12.49
15
HEAT EXCHANGER ASSY
8EP-12440-00-00
Unavailable
16
HOSE 7
8FA-12551-00-00
Unavailable
17
CLIP (8M6)
90467-28046-00
Unavailable
18
HOSE CLAMP ASSY
90450-35001-00
Unavailable
19
BEARING
93306-20650-00
Unavailable
20
CIRCLIP(MF1)
99009-62500-00
Unavailable
21
NUT, SELF-LOCKING
90185-08169-00
$8.49
22
RIVET, BLIND
90267-47195-00
Unavailable
23
RIVET, BLIND
90267-48016-00
Unavailable
24
REAR FRAME COMP.
8FS-21950-01-00
Unavailable
25
REINEFORCEMENT, FRAME REAR 1
8FS-W2199-00-00
Unavailable
26
REINFORCEMENT, FOOTREST 1
8FS-21926-10-00
Unavailable
27
REINFORCEMENT, FOOTREST 2
8FS-21936-00-00
Unavailable
28
BRACKET, MAIN TRACK 1
8FS-21943-00-00
Unavailable
29
BRACKET, FUEL TANK 1
8CR-2194N-00-00
Unavailable
30
BRACKET 1
8FA-2194X-00-00
Unavailable
31
BRACKET 2
8FA-2195X-00-00
Unavailable
32
PROTECTOR, MUFFLER
8FA-2194H-01-00
Unavailable
33
RIVET, BLIND
90267-47195-00
Unavailable
34
PATCH 3
8FS-21963-00-00
Unavailable
35
PATCH 4
8FS-21964-00-00
Unavailable
36
HEAT EXCHANGER ASSY 4
8FS-1241A-10-00
Unavailable
37
WASHER, SEAL (7G5)
90210-06006-00
Unavailable
38
SCREW, PAN
98517-06008-00
Unavailable
39
BRACKET, MAIN TRACK 2
8FK-21953-00-00
Unavailable
40
PANEL, SUB FRAME 5
8FS-21916-02-00
Unavailable
41
CLAMP(4MX)
90465-06376-00
Unavailable
42
PATCH 1
8FS-21961-01-00
Unavailable
43
PATCH 2
8FS-21962-01-00
Unavailable
44
PROTECTOR, FRAME 3
8FS-2197C-00-00
Unavailable
45
RIVET, BLIND
90267-47200-00
Unavailable
46
WASHER PLATE (664)
90201-05556-00
Unavailable
47
FRAME CONNECTION KIT
8FS-W2195-11-00
Unavailable
48
BRACKET, CHAIN HOUSING
8FN-21939-00-00
Unavailable
49
BRACKET, 5
8FP-2196M-01-00
Unavailable
50
BRACKET, 6
8FP-2197M-01-00
Unavailable
51
COVER 2
8FP-2198G-01-00
Unavailable
52
CLAMP, WIREHARNESS
8FA-21999-00-00
Unavailable
53
RIVET, BLIND
90267-47195-00
Unavailable
54
RIVET, BLIND
90267-48018-00
Unavailable
55
RIVET, BLIND
90267-48177-00
Unavailable
56
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
57
BRACKET, RR.TRACK SUSPENTION 1
8FS-21944-10-00
Unavailable
58
BRACKET, RR.TRACK SUSPENTION 2
8FS-21954-10-00
Unavailable
59
NUT, CROWN (650)
95380-10800-00
Unavailable
60
WASHER, PLATE(42X)
90201-105H3-00
Unavailable
61
RIVET, BLIND
90267-47197-00
Unavailable
62
FOOTREST COMP. 1
8FP-21960-01-00
Unavailable
63
FOOTREST COMP. 2
8FP-21970-00-00
Unavailable
64
BRACKET, OIL TANK 1
8ES-2193E-00-00
Unavailable
65
BOLT, FLANGE
95817-08014-00
Unavailable
66
HOUSING, REINF SUB-ASSY(L.H)
8EK-21920-01-00
Unavailable
67
GROMMET(4FU)
90480-13567-00
Unavailable
68
COVER 1
8FU-2198F-01-00
Unavailable
69
COVER 3
8FU-2198J-01-00
Unavailable
70
PLATE, STRG BRACKET 1
8FU-2195E-01-00
Unavailable
71
PLATE, STRG BRACKET 2
8FU-2195F-01-00
Unavailable
72
FRAME UNDER 1
8FP-2196A-02-00
Unavailable
73
DAMPER 2
8FP-77374-00-00
Unavailable
74
FRAME, UNDER 2
8FP-2196E-02-00
Unavailable
75
DAMPER 3
8FP-77375-00-00
Unavailable
76
BRACKET, GUARD FITTING
8FP-21972-00-00
Unavailable
77
BRACKET 3
8FA-2196F-00-00
Unavailable
78
RIVET, BLIND
90267-48018-00
Unavailable
79
RIVET, BLIND
90267-47200-00
Unavailable
80
BRKT. ,FR. FOOD
8FP-21979-00-00
Unavailable
81
BOLT, FLANGE
95817-06014-00
Unavailable
82
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
83
BRACKET, FRONT
8FA-21949-00-00
Unavailable
84
BRACKET, FRONT BUMPER
8FA-21959-00-00
Unavailable
85
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
86
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
87
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
88
RIVET, BLIND (22W)
90267-48083-00
Unavailable
89
RIVET, BLIND(3JB)
90267-48095-00
Unavailable
90
RIVET, BLIND
90267-47195-00
Unavailable
91
PROTECTOR, FRAME
8FA-2197E-01-00
Unavailable
92
BOLT(3XP)
90109-065F3-00
Unavailable
93
NUT, SPRING(4ES)
90183-06069-00
Unavailable
94
SPACER
8FA-21998-00-00
Unavailable
95
SHIELD, HEAT
8FG-23892-00-00
Unavailable
96
RIVET, BLIND (8L0)
90267-48059-00
Unavailable
97
COVER, FRONT
8FP-22865-00-00
Unavailable
98
SCREW, ROUND HEAD (24R)
90150-06015-00
Unavailable
99
PLETE, EPA OFFROAD 2
8FR-2179D-00-00
Unavailable
