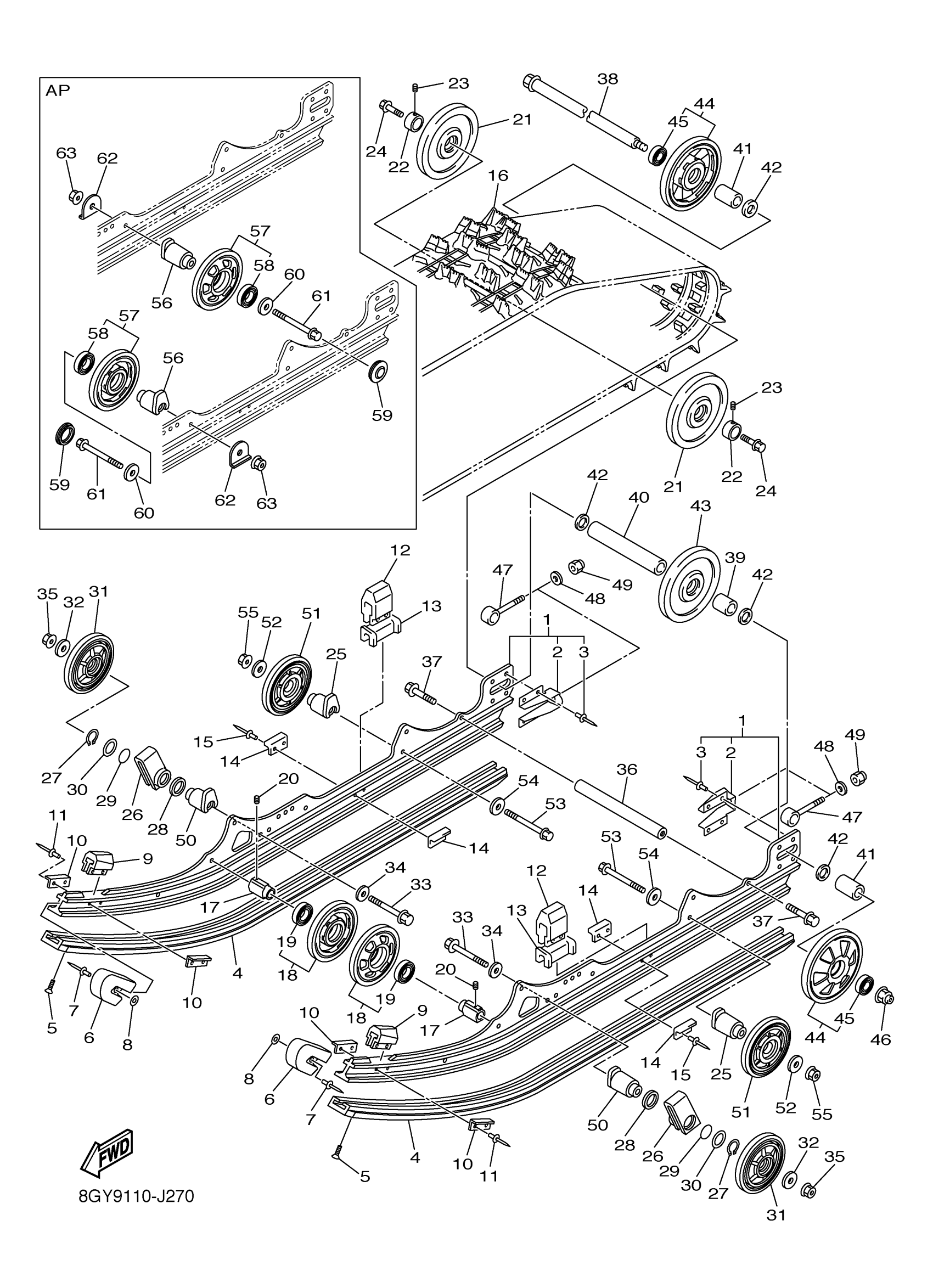

Yamaha RX10MTZW (APEX MTX) 8GY9 2010 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

FRAME, SLIDING

8FS-W4741-00-00

Unavailable

2

BRACKET

8DM-4741B-00-00

$45.99

3

RIVET

8V0-47468-00-00

$10.49

4

FX NYTRO 162" HP WIDE HYFAX

SMA-8HR92-00-BK

Unavailable

5

SCREW, CROSSRECESS (8G6)

90151-06005-00

$9.49

6

RUNNER, SLIDING 2

8ED-47422-00-00

$46.99

7

RIVET BLIND

90267-48194-00

$3.28

8

WASHER, PLATE(8CM)

90201-047R8-00

$3.02

9

DAMPER 1

8ES-47456-00-00

$6.99

10

PLATE, DAMPER

8K2-47458-01-00

$4.77

11

RIVET, BLIND

90267-48199-00

$3.76

12

DAMPER 2

8CM-47457-00-00

$16.49

13

SPACER

8CM-47341-00-00

$16.49

14

PLATE, DAMPER

8AX-47458-00-00

$10.99

15

RIVET, BLIND

90267-48199-00

$3.76

16

TRACK ASSY

8FS-47110-00-00

Unavailable

17

COLLAR

8ES-47319-01-00

Unavailable

18

WHEEL BLK 130MM

SMA-8FP38-01-BK

Unavailable

19

BRG,R-B 6005 47MM 85G KY

93306-00507-00

Unavailable

20

BOLT, SET (8K2)

90113-06039-00

Unavailable

21

GUIDE WHEEL ASSY

8CR-47550-00-00

Unavailable

22

COLLAR 1

8FS-47365-00-00

Unavailable

23

BOLT, SET (8K2)

90113-06039-00

Unavailable

24

BOLT (8V0)

90109-10771-00

Unavailable

25

BRACKET 7

8ES-47419-00-00

Unavailable

26

HOOK 1

8ES-47446-00-00

Unavailable

27

CIRCLIP(6U2)

93410-35M10-00

Unavailable

28

O-RING (16G)

93210-35537-00

Unavailable

29

O-RING (21A)

93210-34633-00

Unavailable

30

WASHER, PLATE

90201-35013-00

Unavailable

31

SUSPENSION WHEEL ASSY

8FS-47310-01-00

Unavailable

32

WASHER, PLATE(42X)

90201-105H3-00

Unavailable

33

BOLT, FLANGE

95817-10080-00

Unavailable

34

WASHER, PLATE (17K)

90201-106F2-00

Unavailable

35

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

36

SHAFT 3

8ES-47485-00-00

Unavailable

37

BOLT, FLANGE

90105-10092-00

Unavailable

38

REAR AXLE COMP.

8L8-47520-10-00

Unavailable

39

COLLAR

90387-20015-00

Unavailable

40

COLLAR

90387-20016-00

Unavailable

41

COLLAR

90387-20019-00

Unavailable

42

WASHER, PLATE(89W)

90201-205R6-00

Unavailable

43

GUIDE WHEEL ASSY

8CR-47550-10-00

Unavailable

44

REAR WHEEL BLK 178MM

SMA-8FP38-02-BK

Unavailable

45

BEARING(8AB)

93306-00444-00

Unavailable

46

NUT, SELF-LOCKING (8BF)

95607-14200-00

Unavailable

47

COLLAR 3

8DM-47479-00-00

Unavailable

48

WASHER, PLATE

92990-10600-00

Unavailable

49

NUT, NYLON

95707-10300-00

Unavailable

50

BRACKET 7

8ES-47419-10-00

Unavailable

51

SUSPENSION WHEEL ASSY

8FS-47310-01-00

Unavailable

52

WASHER, PLATE(42X)

90201-105H3-00

Unavailable

53

BOLT, FLANGE

95817-10080-00

Unavailable

54

WASHER, PLATE (17K)

90201-106F2-00

Unavailable

55

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

56

BRACKET 7

8ES-47419-00-00

Unavailable

57

WHEEL BLK 130MM

SMA-8FP38-01-BK

Unavailable

58

BRG,R-B 6005 47MM 85G KY

93306-00507-00

Unavailable

59

CAP, WHEEL

8HF-47317-00-00

Unavailable

60

WASHER, PLATE

90201-10038-00

Unavailable

61

BOLT, FLANGE

95812-10080-00

Unavailable

62

WASHER, CLAW

90214-10003-00

Unavailable

63

NUT, S/L FLANGE

95602-10200-00

Unavailable
