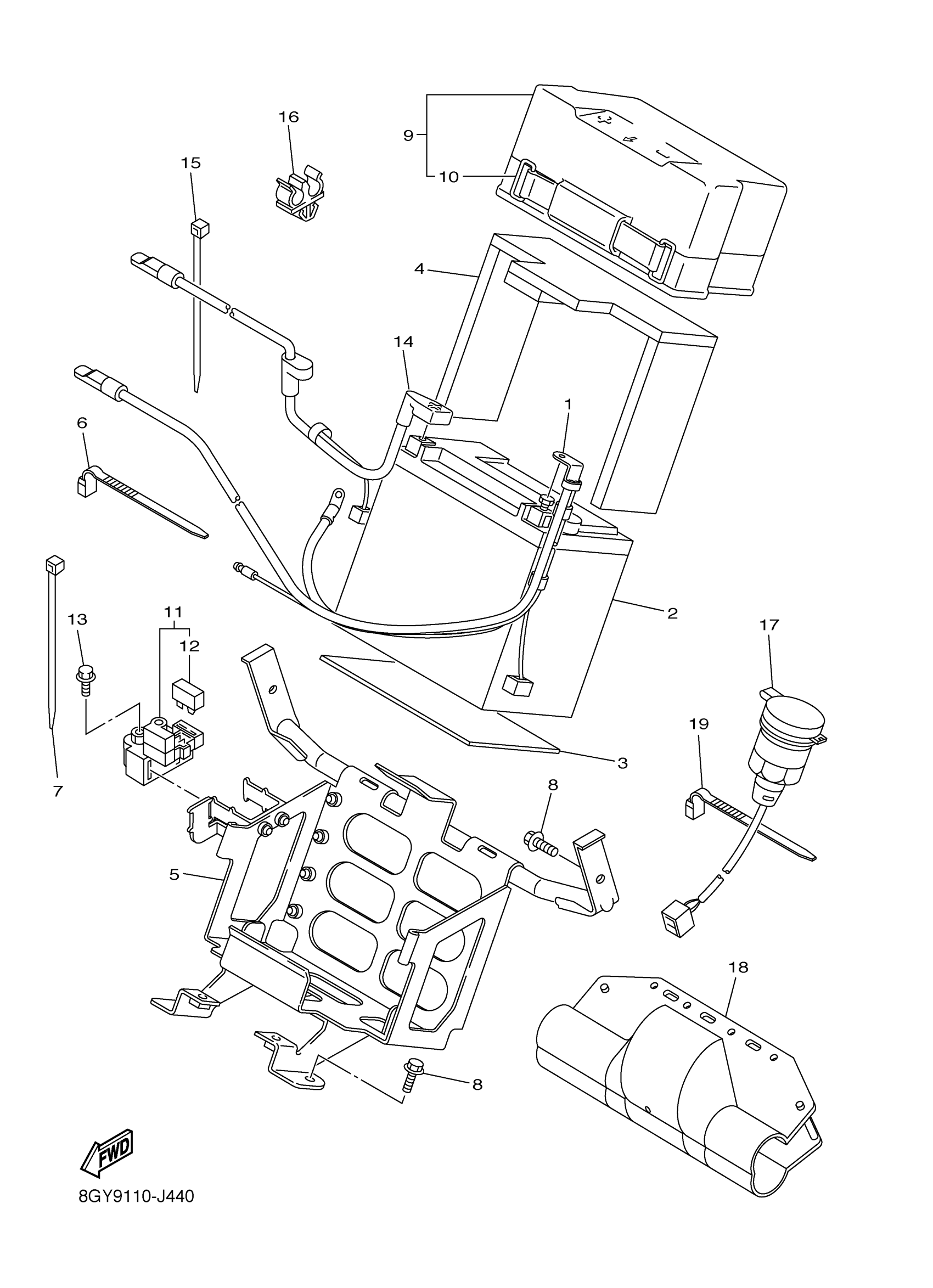

Yamaha RX10MTZW (APEX MTX) 8GY9 2010 ELECTRICAL 2 Diagram

#

Description
Price

1

WIRE, MINUS LEAD

8FP-82116-01-00

Unavailable

2

YTX14BS YUASA BATTERY - SA

YTX-14BS0-00-00

Unavailable

3

SEAT, BATTERY

8FA-82122-00-00

Unavailable

4

PLATE, BATTERY FITTING

8FU-82136-00-00

Unavailable

5

BRACKET, BATTERY

8FP-2199G-01-00

Unavailable

6

CLAMP(4FM)

90464-15195-00

$4.41

7

CLAMP(4FM)

90464-15195-00

$4.41

8

BOLT, FLANGE

95814-08016-00

$9.49

9

COVER, BATTERY

8FU-82129-00-00

Unavailable

10

BAND, BATTERY

8DM-82131-10-00

$16.49

11

STARTER RELAY ASSY (RC19-034)

5LW-81940-02-00

$117.99

12

FUSE (10A)

42X-82151-00-00

$4.32

13

BOLT, FLANGE

95022-06008-00

$8.49

14

WIRE, PLUS LEAD

8FP-82115-00-00

Unavailable

15

CLAMP(4FM)

90464-15195-00

$4.41

16

CLAMP(87A)

90464-08126-00

Unavailable

17

TERMINAL COMP.

8FP-8254B-00-00

Unavailable

18

COVER

8FP-8252U-00-00

Unavailable

19

CLAMP(4FM)

90464-15195-00

$4.41
