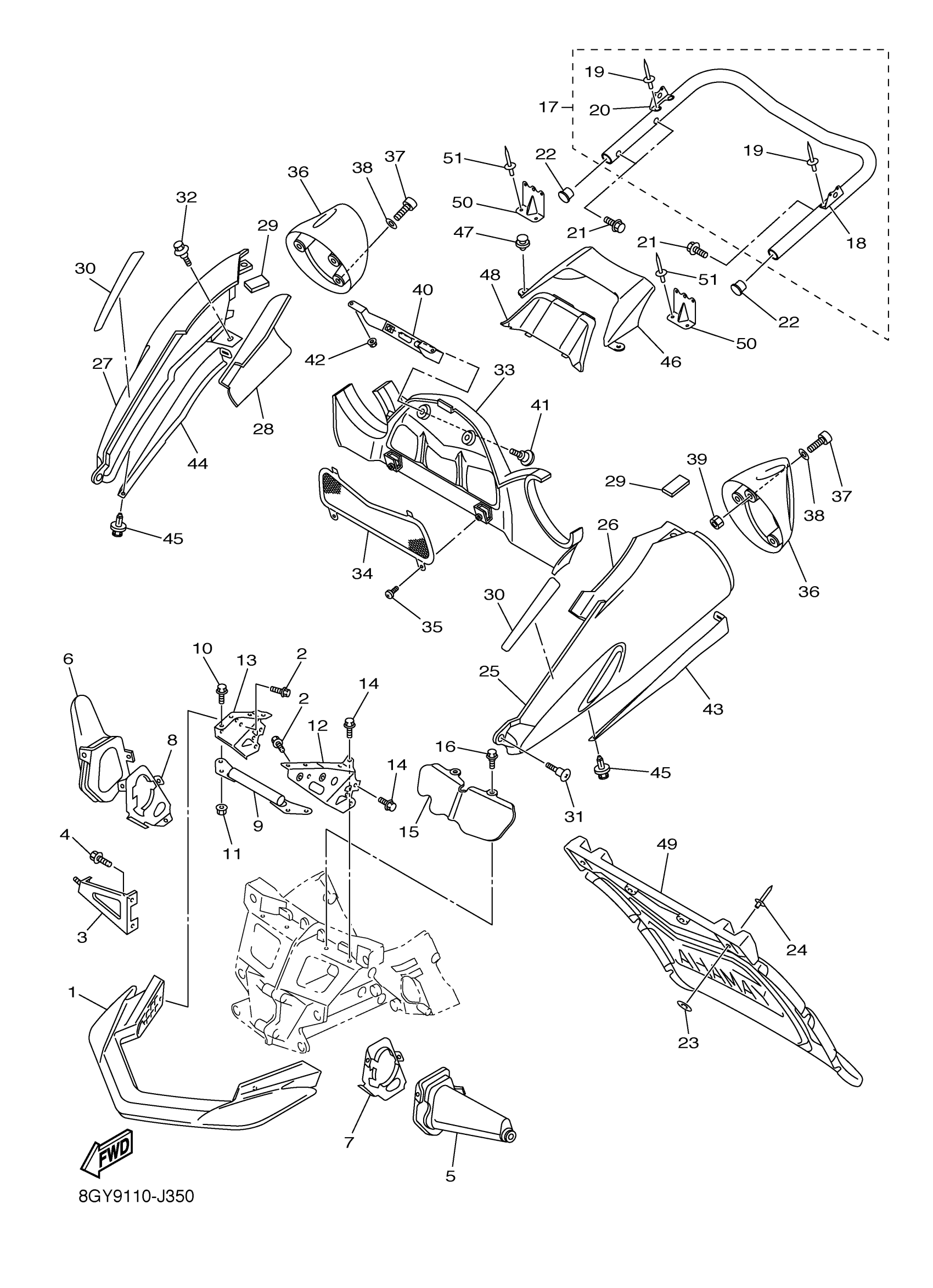

Yamaha RX10MTZW (APEX MTX) 8GY9 2010 BUMPER Diagram
#
1
BUMPER, FRONT 1
8FA-77511-01-00
$250.99
2
BOLT, FLANGE(JN5)
95817-08016-00
$5.49
3
BRACKET, OIL TANK 1
8ES-2193E-00-00
Unavailable
4
BOLT, FLANGE
95822-08014-00
$8.49
5
COVER 1
8FU-2198F-01-00
$31.99
6
COVER 3
8FU-2198J-01-00
$31.99
7
PLATE, STRG BRACKET 1
8FU-2195E-01-00
Unavailable
8
PLATE, STRG BRACKET 2
8FU-2195F-01-00
Unavailable
9
BRKT. ,FR. FOOD
8FP-21979-00-00
$95.99
10
BOLT, FLANGE
95817-06014-00
Unavailable
11
NUT, FLANGE
95702-06500-00
$2.39
12
BRACKET, FRONT
8FA-21949-00-00
$63.99
13
BRACKET, FRONT BUMPER
8FA-21959-00-00
$59.99
14
BOLT, FLANGE
95814-08016-00
$9.49
15
COVER, FRONT
8FP-22865-00-00
Unavailable
16
BOLT
90109-06261-00
Unavailable
17
REAR BUMPER COMP.
8FS-77540-00-00
Unavailable
18
BRACKET 1
8FS-77581-00-00
Unavailable
19
RIVET, BLIND
90267-47195-00
Unavailable
20
BRACKET 2
8FS-77582-00-00
Unavailable
21
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
22
PLUG (5R2)
90338-18122-00
Unavailable
23
WASHER, PLATE
90201-04027-00
Unavailable
24
RIVET, BLIND
90267-47200-00
Unavailable
25
PROTECTOR 1
8FP-77551-01-P5
Unavailable
26
LINING, SHROUD 1
8FP-77261-00-00
Unavailable
27
PROTECTOR 2
8FP-77552-01-P5
Unavailable
28
LINING, SHROUD 2
8FP-77262-00-00
Unavailable
29
LINING, SHROUD 3
8FP-77263-00-00
Unavailable
30
PROTECTOR, SIDE 1
8FR-77561-00-00
Unavailable
31
SCREW, BINDING
90154-06009-00
Unavailable
32
BOLT
90109-06220-00
Unavailable
33
COVER, TAILLIGHT
8FS-84516-00-00
Unavailable
34
LOUVER 1
8FS-77441-00-00
Unavailable
35
SCREW, TAPPING
97702-50016-00
Unavailable
36
CAP
8FS-77517-00-00
Unavailable
37
BOLT,SOCKET HEAD
91314-06020-00
Unavailable
38
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
39
NUT, HEXAGON
95380-06600-00
Unavailable
40
BRACKET, REAR (L.H)
8FS-77533-00-00
Unavailable
41
BOLT
90109-06220-00
Unavailable
42
NUT, U FLANGE
95604-06200-00
Unavailable
43
PROTECTOR 6
8FS-77556-00-00
Unavailable
44
PROTECTOR 7
8FS-77557-00-00
Unavailable
45
RIVET
90269-06081-00
Unavailable
46
COVER, TAILLIGHT
8GL-84516-00-00
Unavailable
47
RIVET
90269-08006-00
Unavailable
48
COVER
8FS-84544-00-00
Unavailable
49
FLAP
8GT-K7595-00-00
Unavailable
50
BRACKET 1
8FS-83955-00-00
Unavailable
51
RIVET, BLIND
90267-47195-00
Unavailable
