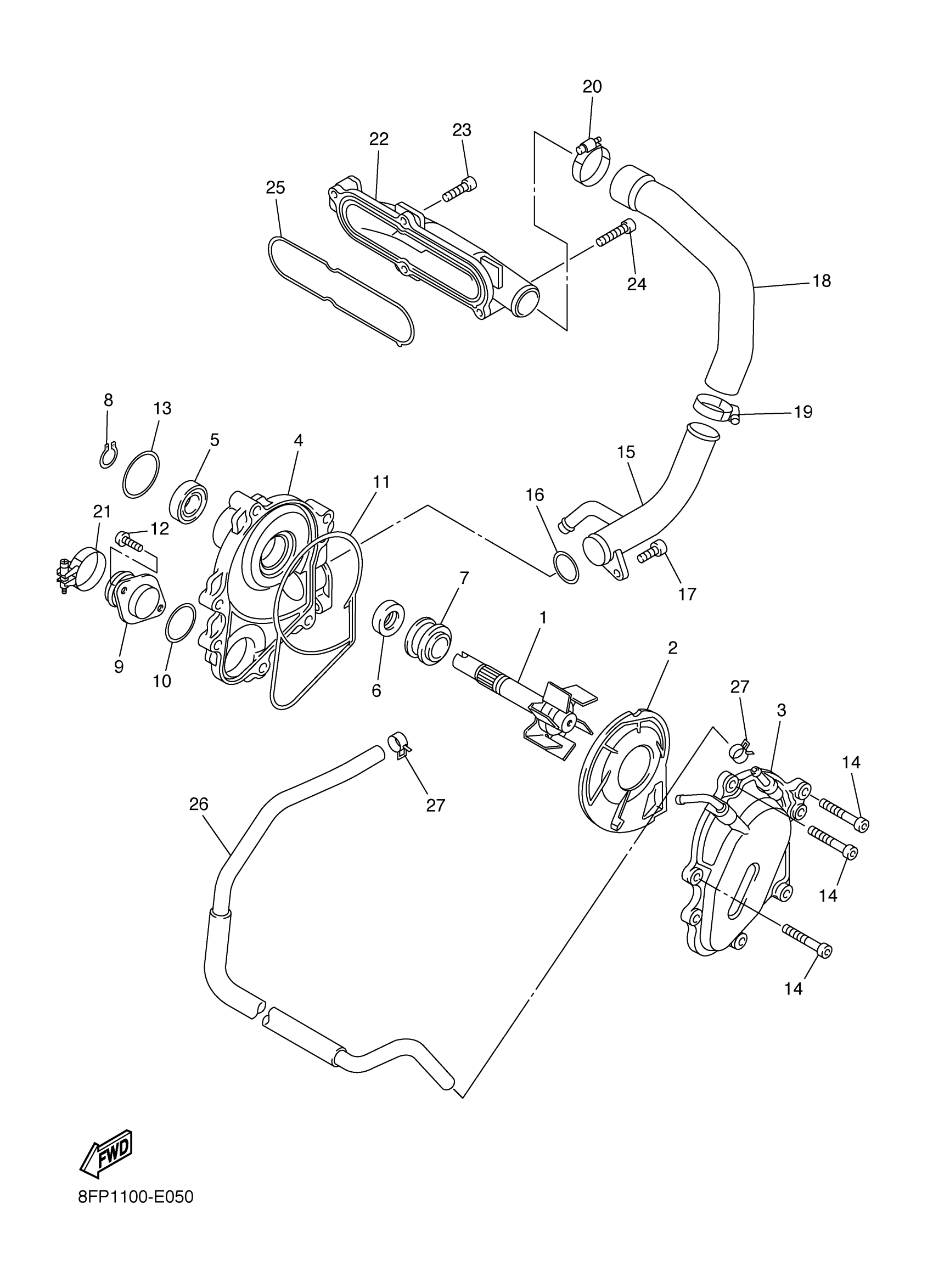

Yamaha RX10MTYL (APEX MTX) 8GY7O 2009 WATER PUMP Diagram

#

Description
Price

1

IMPELLER SHAFT ASSY

8FA-12450-00-00

$62.89

2

COVER, IMPELLER

8FA-1243G-00-00

$17.51

3

COVER, HOUSING

8FA-12422-00-00

$46.83

4

HOUSING, WATER PUMP

8FA-12421-00-00

$71.52

5

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$25.40

6

OIL SEAL

93101-12173-00

$11.31

7

SEAL, MECHANICAL

11H-12438-10-00

$50.88

8

CIRCLIP(10Y)

99009-12400-00

$3.08

9

JOINT 2

8FA-1247A-00-00

$21.37

10

O-RING

93210-22M93-00

$3.92

11

O-RING

8FA-12439-00-00

$11.20

12

SCREW, TAPPING

90167-05004-00

$0.46

13

O-RING (22F)

93210-38516-00

Unavailable

14

BOLT(J17)

91312-06035-00

$2.38

15

PIPE 1

8FA-12481-00-00

$45.12

16

O-RING

93210-235A1-00

$5.75

17

BOLT,SOCKET

91317-06012-00

$6.17

18

HOSE 8

8HG-12552-00-00

$19.88

19

HOSE CLAMP ASSY

90450-35001-00

$5.25

20

HOSE CLAMP ASSY(3GM)

90450-38040-00

$15.75

21

HOSE CLAMP ASSY

90450-32002-00

$8.52

22

JOINT 1

8FP-12469-00-00

$34.40

23

BOLT,SOCKET HEAD

91314-06020-00

$2.05

24

BOLT(J17)

91312-06035-00

$2.38

25

GASKET

8FA-12435-00-00

$7.31

26

PIPE 5

8FA-12485-00-00

$22.77

27

CLIP(3BM)

90467-10135-00

$6.91
