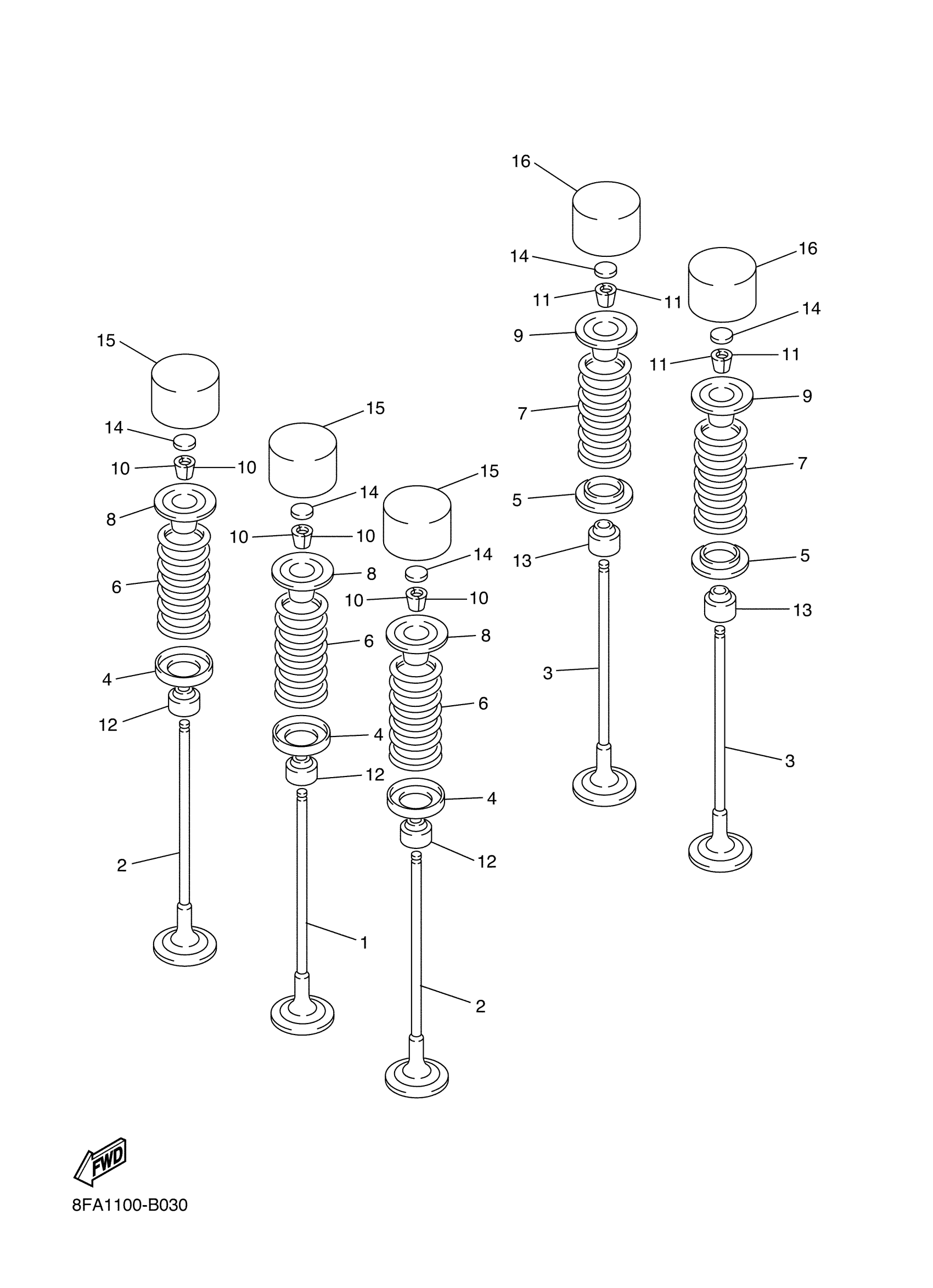

Yamaha RX10MTYL (APEX MTX) 8GY7O 2009 VALVE Diagram

#

Description
Price

1

VALVE, INTAKE

4XV-12111-00-00

Unavailable

2

VALVE, INTAKE 2

4XV-12112-00-00

Unavailable

3

VALVE, EXHAUST

5LV-12121-00-00

$99.43

4

SEAT, VALVE SPRING

1HX-12116-01-00

$4.05

5

SEAT, VALVE SPRING 2

3GM-12126-00-00

$3.57

6

SPRING, VALVE INNER

8FP-12113-00-00

$5.38

7

SPRING, VALVE OUTER

8FP-12114-00-00

$6.65

8

RETAINER, VALVE SPRING

1HX-12117-00-00

$15.83

9

RETAINER, VALVE SPRING

1WG-12117-00-00

$15.83

10

COTTER, VALVE

1HX-12118-00-00

$6.38

11

COTTER, VALVE

1WG-12118-00-00

$5.50

12

SEAL, VALVE STEM

4TV-12119-00-00

$11.47

13

SEAL, VALVE STEM

4SV-12119-00-00

$19.85

14

PAD, ADJUSTING 2 (1.20)

1HX-12168-00-00

$18.51

14

PAD, ADJUSTING 2 (1.25)

1HX-12168-20-00

$11.15

14

PAD, ADJUSTING 2 (1.30)

1HX-12168-40-00

$12.32

14

PAD, ADJUSTING 2 (1.35)

1HX-12168-60-00

$11.85

14

PAD, ADJUSTING 2 (1.40)

1HX-12168-80-00

$18.49

14

PAD, ADJUSTING 2 (1.45)

1HX-12168-A0-00

$12.64

14

PAD, ADJUSTING 2 (1.50)

1HX-12168-F0-00

$18.21

14

PAD, ADJUSTING 2 (1.55)

1HX-12168-H1-00

$11.63

14

PAD, ADJUSTING 2 (1.60)

1HX-12168-K1-00

$19.45

14

PAD, ADJUSTING 2 (1.65)

1HX-12168-M1-00

$25.85

14

PAD, ADJUSTING 2 (1.70)

1HX-12168-R1-00

$19.45

14

PAD, ADJUSTING 2 (1.75)

1HX-12168-U1-00

$16.30

14

PAD, ADJUSTING 2 (1.80)

1HX-12168-W1-00

$17.41

14

PAD, ADJUSTING 2 (1.85)

1HX-12168-Y1-00

$19.54

14

PAD, ADJUSTING 2 (1.90)

1HX-12169-11-00

$46.67

14

PAD, ADJUSTING 2 (1.95)

1HX-12169-31-00

$20.58

14

PAD, ADJUSTING 2 (2.00)

1HX-12169-50-00

$19.65

14

PAD, ADJUSTING 2 (2.05)

1HX-12169-70-00

$19.94

14

PAD, ADJUSTING 2 (2.10)

1HX-12169-90-00

$12.00

14

PAD, ADJUSTING 2 (2.15)

1HX-12169-E0-00

$11.85

14

PAD, ADJUSTING 2 (2.20)

1HX-12169-G0-00

$11.06

14

PAD, ADJUSTING 2 (2.25)

1HX-12169-J0-00

$10.48

14

PAD, ADJUSTING 2 (2.30)

1HX-12169-L0-00

$15.88

14

PAD, ADJUSTING 2 (2.35)

1HX-12169-N0-00

$13.77

14

PAD, ADJUSTING 2 (2.40)

1HX-12169-T0-00

$17.05

15

LIFTER, VALVE (O/S, 0.006)

3LN-12153-09-00

$35.74

15

LIFTER, VALVE

3LN-12153-10-00

$77.42

16

LIFTER, VALVE (O/S, 0.006)

3FV-12153-09-00

$68.18

16

LIFTER, VALVE

3FV-12153-19-00

$67.35
