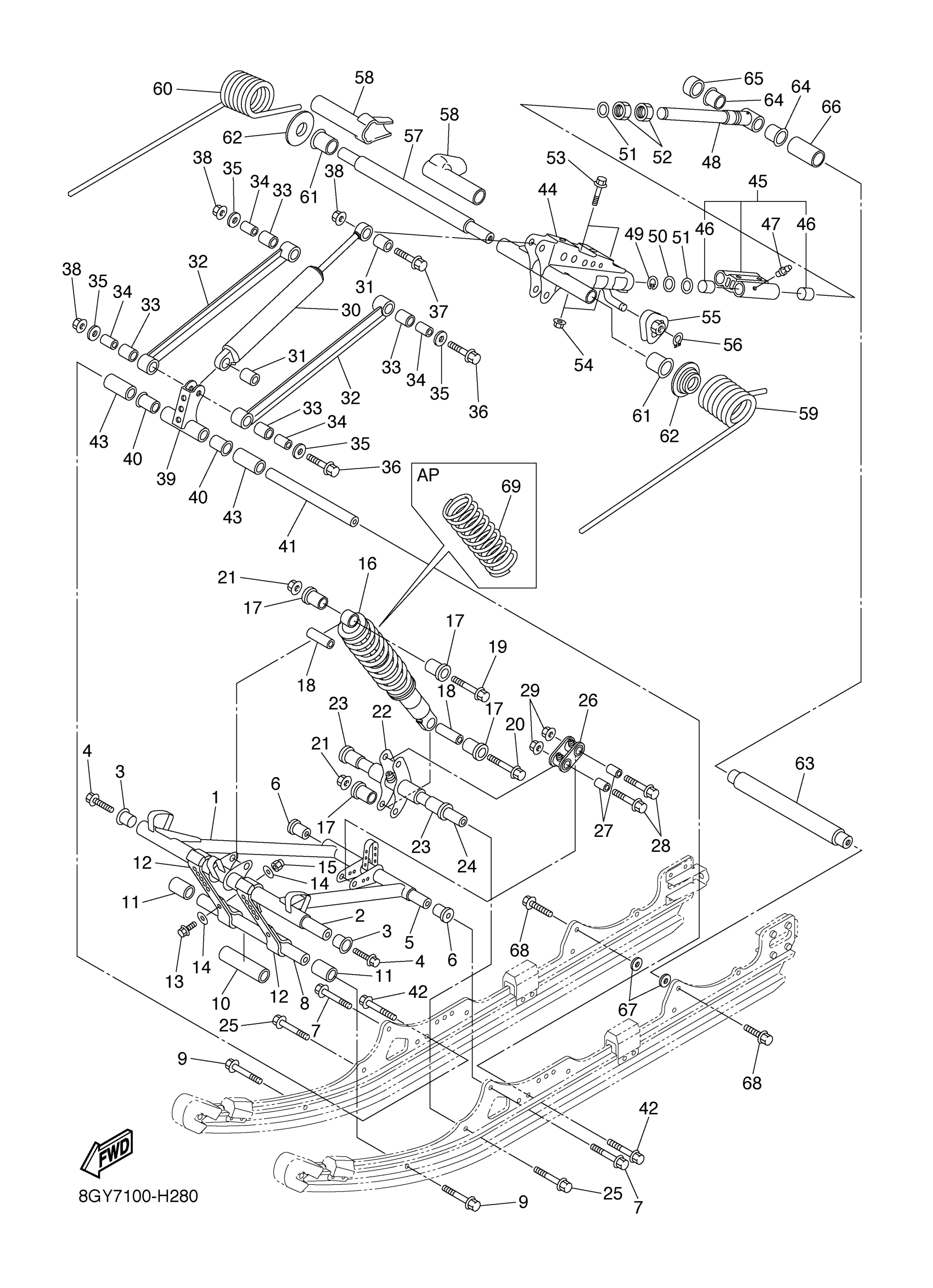

Yamaha RX10MTYL (APEX MTX) 8GY7O 2009 TRACK SUSPENSION 2 Diagram

#

Description
Price

1

ARM, PIVOT 1

8FK-47331-01-00

Unavailable

2

SHAFT 1

8ES-47465-10-00

$82.20

3

BUSH

90386-22001-00

$5.79

4

BOLT (8V0)

90109-10771-00

$4.76

5

SHAFT 4

8ES-47486-00-00

$34.04

6

COLLAR

90387-10022-00

$15.88

7

BOLT, FLANGE

90105-10092-00

$4.01

8

SHAFT 3

8ES-47485-00-00

$49.97

9

BOLT, FLANGE

90105-10092-00

$4.01

10

COLLAR

90387-19002-00

$5.53

11

COLLAR

90387-19001-00

$6.71

12

STOPPER 1

8ES-47495-00-00

$58.02

13

BOLT, HEXAGON

97017-06025-00

$2.84

14

WASHER, PLATE

90201-06081-00

Unavailable

15

NUT, NYLON

95707-06300-00

$3.05

16

SHOCK ABSORBER 2

8GY-47481-00-00

Unavailable

17

BUSH, SOLID(8CM)

90381-14101-00

Unavailable

18

COLLAR (8U7)

90387-105G5-00

Unavailable

19

BOLT, FLANGE(4GB)

95817-10045-00

Unavailable

20

BOLT(88R)

90101-10738-00

Unavailable

21

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

22

BRACKET, ARM PIVOT

8ES-47349-01-00

Unavailable

23

BUSH

90386-20001-00

Unavailable

24

SHAFT 5

8GN-47487-00-00

Unavailable

25

BOLT, FLANGE

90105-10092-00

$4.01

26

BRACKET 2

8FK-47416-01-00

Unavailable

27

COLLAR

90387-10024-00

Unavailable

28

BOLT, FLANGE (8V9)

95812-10045-00

Unavailable

29

NUT, S/L FLANGE

95602-10200-00

Unavailable

30

SHOCK ABSORBER

8GY-47480-00-00

Unavailable

31

COLLAR

90387-10023-00

Unavailable

32

ROD, RELAY

8FK-47494-00-00

Unavailable

33

BUSH

90386-16001-00

Unavailable

34

COLLAR (8K4)

90387-101A1-00

Unavailable

35

WASHER, PLATE

90201-10043-00

Unavailable

36

95812-10090

95812-10090-00

Unavailable

37

BOLT, FLANGE

95812-10040-00

Unavailable

38

NUT, S/L FLANGE

95602-10200-00

Unavailable

39

BRACKET, ARM PIVOT

8FK-47349-10-00

Unavailable

40

BUSH

90386-20001-00

Unavailable

41

SHAFT 5

8ES-47487-00-00

Unavailable

42

BOLT, FLANGE

90105-10092-00

$4.01

43

COLLAR

90387-20020-00

Unavailable

44

ARM, PIVOT 2

8FK-47332-01-00

Unavailable

45

STOPPER, CONT. 1

8ES-4745D-00-00

Unavailable

46

BUSH, SOLID

90380-24001-00

Unavailable

47

NIPPLE, GREASE

93700-06M03-00

$6.77

48

ROD, CONTROL 1

8FS-4745A-00-00

Unavailable

49

CIRCLIP

99009-24400-00

Unavailable

50

WASHER, PLATE

90201-24015-00

Unavailable

51

WASHER, PLATE

90202-25001-00

Unavailable

52

STOPPER, ADJUSTING NUT

8ES-48142-00-00

Unavailable

53

BOLT, FLANGE(87Y)

95817-10055-00

Unavailable

54

NUT, S/L FLANGE

95602-10200-00

Unavailable

55

HOOK 2

8ES-47447-00-00

Unavailable

56

CIRCLIP(13H)

99009-14400-00

Unavailable

57

SHAFT 2

8FS-47475-01-00

Unavailable

58

PROTECTOR

8ES-47445-00-00

Unavailable

59

SPRING, REAR 1(K=2100NMM/DEG)

8FK-47473-10-00

Unavailable

59

SPRING, REAR 1

8FS-47473-00-00

Unavailable

60

SPRING, REAR 2

8FK-47474-10-00

Unavailable

60

SPRING, REAR 2

8FS-47474-00-00

Unavailable

61

BUSH, SOLID(8CJ)

90381-28108-00

Unavailable

62

PLATE, GUIDE

8ES-47467-00-00

Unavailable

63

SHAFT, PIVOT

8ES-47337-00-00

Unavailable

64

BUSH

90386-25001-00

Unavailable

65

COLLAR

90387-26002-00

Unavailable

66

COLLAR

90387-26003-00

Unavailable

67

WASHER, PLATE

90201-10028-00

Unavailable

68

BOLT, FLANGE

95817-10030-00

Unavailable

69

SPRING

8FK-47336-00-00

Unavailable
