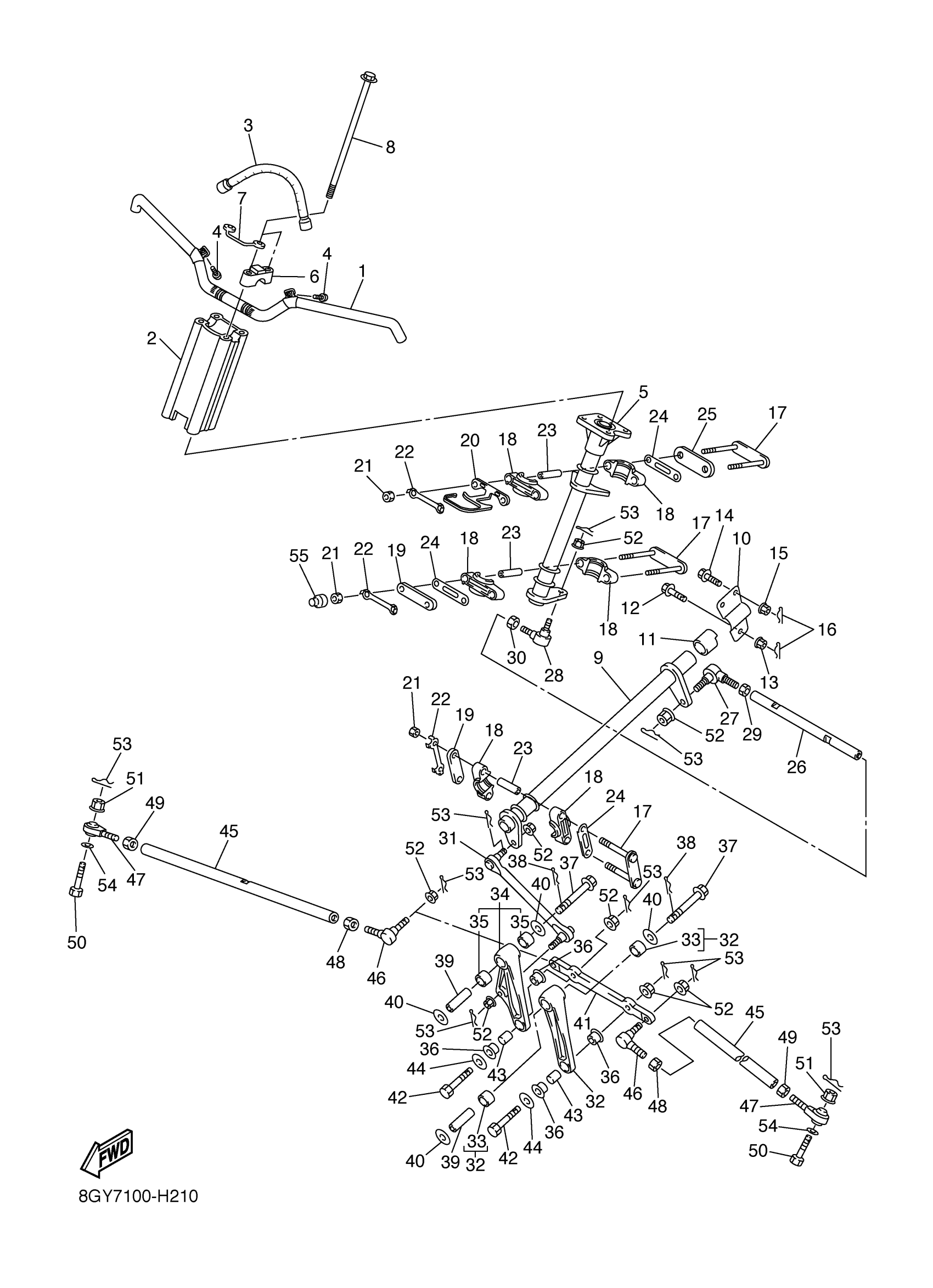

Yamaha RX10MTYL (APEX MTX) 8GY7O 2009 STEERING Diagram

#

Description
Price

1

HANDLEBAR

8FS-26111-10-00

Unavailable

2

JOINT

8FS-2381B-00-00

Unavailable

3

STRAP, STRG

8GE-23829-00-00

$131.94

4

BOLT, BUTTON HEAD

92014-06020-00

$6.91

5

COLUMN, STEERING 2

8FP-23813-00-00

Unavailable

6

HOLDER, HANDLE UPPER

3SP-23441-00-00

$22.03

7

HOLDER

8FP-23857-00-00

Unavailable

8

BOLT

8FS-23876-00-00

$9.82

9

COLUMN, STEERING

8FA-23811-00-00

$84.42

10

COVER, STEERING

8FA-23818-02-00

$8.58

11

BEARING, STEERING UPPER

8FA-23873-01-00

$5.35

12

BOLT, WASHER BASED(4KD)

90105-10728-00

$7.49

13

NUT, S/L FLANGE

95602-10200-00

$2.29

14

BOLT, WASHER BASED(JA1)

90105-08552-00

$3.78

15

NUT, SELF-LOCKING

95602-08200-00

$2.77

16

CLIP 136253750000

90468-12006-00

$5.10

17

HOLDER, BEARING

8FA-23872-00-00

$13.14

18

PLANE BEARING, STEERING

8FA-23812-00-00

$5.66

19

HOLDER 2

8FA-23867-00-00

$2.49

20

HOLDER, BEARING

8FP-23872-00-00

$17.31

21

NUT(6L2)

95333-08600-00

$3.20

22

WASHER, LOCK 1

1UY-23894-01-00

$6.86

23

COLLAR

90387-09006-00

$5.43

24

WASHER, PLAIN

8FA-23843-00-00

$3.25

25

WASHER, PLAIN

8FP-23843-00-00

$21.54

26

ROD, STEERING

8FA-23828-00-00

$15.38

27

JOINT, UNIVERSAL 3

8CR-23847-00-00

$48.17

28

JOINT, UNIVERSAL 2

8CR-23845-10-00

$52.81

29

NUT (3WP1)

95317-10700-00

$6.17

30

NUT, HEXAGON (8A5)

90170-10186-00

$7.60

31

ROD, STEERING RELAY

8FA-23821-00-00

$148.11

32

ARM PIVOT ASSY

8FG-2389K-00-00

$117.60

33

BUSH, FORMED

90383-17001-00

$9.38

34

ARM PIVOT ASSY. , 2

8FA-2389M-00-00

$136.83

35

BEARING

93317-41785-00

$39.23

36

BUSH, SOLID

90381-14001-00

$3.58

37

BOLT, FLANGE

90105-12017-00

$12.82

38

CLIP, RING

8FA-2384N-00-00

$3.45

39

COLLAR

8FA-2412G-00-00

$10.26

40

WASHER, PLATE

90201-121U3-00

$5.45

41

ARM, IDLER

8FU-23826-00-00

$78.48

42

BOLT, PIN HOLE (8M6)

90102-10044-00

$12.18

43

COLLAR

90387-10070-00

$25.31

44

WASHER PLATE (3L6)

90201-10742-00

$6.80

45

ROD, TIE

8FW-23831-00-00

$35.78

46

JOINT, UNIVERSAL 2

8CR-23845-10-00

$52.81

47

JOINT, UNIVERSAL 3

8FA-23847-00-00

$64.14

48

NUT (3WP1)

95317-10700-00

$6.17

49

NUT, HEXAGON (8A5)

90170-10186-00

$7.60

50

BOLT, PIN HOLE (8M6)

90102-10044-00

$12.18

51

NUT, NYLON

95707-10300-00

$6.68

52

NUT, FLANGE(3BM)

95704-10500-00

$1.71

53

PIN, COTTER

91490-20025-00

$1.31

54

WASHER PLATE (3L6)

90201-08759-00

$2.52

55

CAP 2

35R-25335-00-00

$3.62
