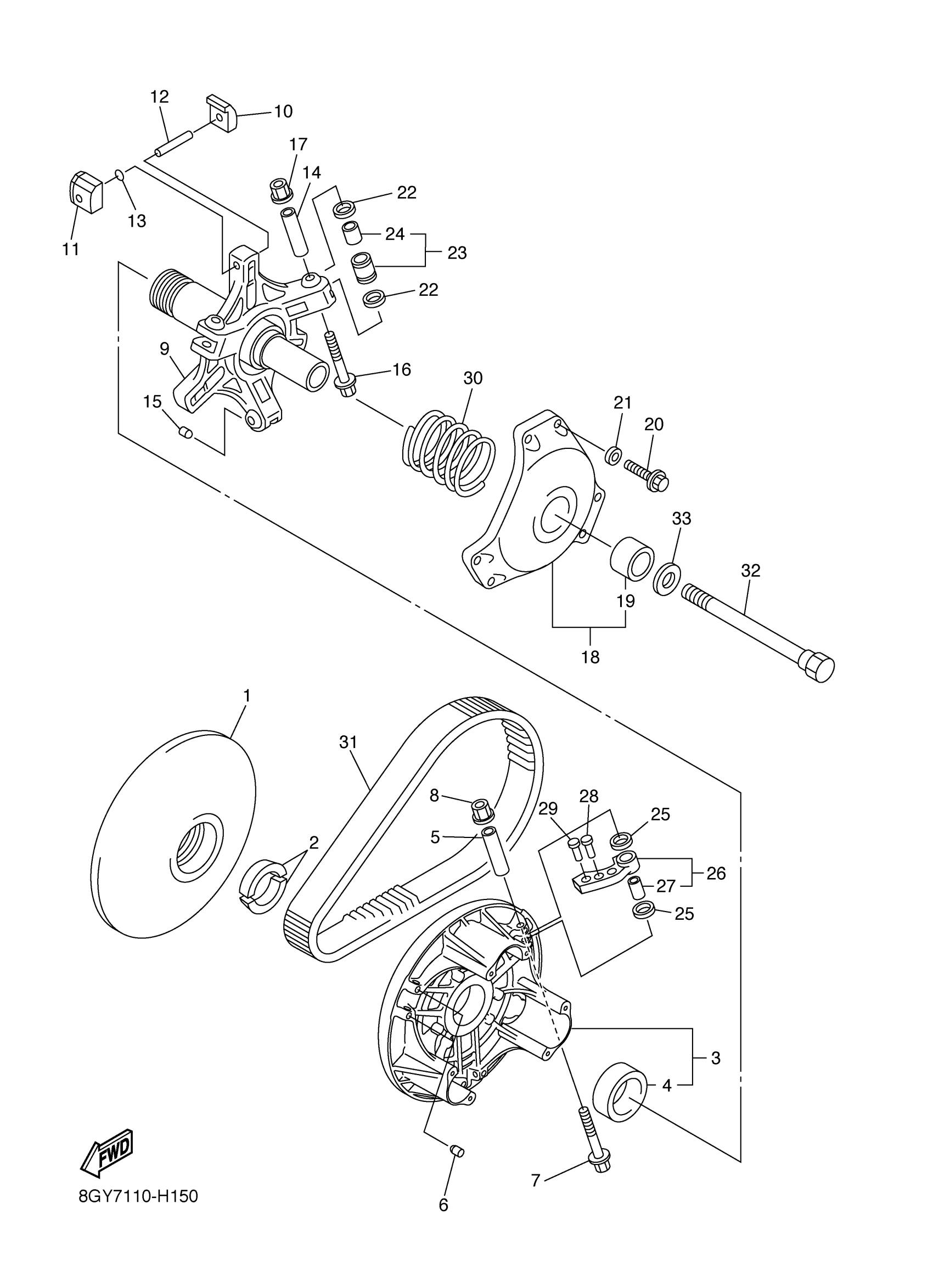

Yamaha RX10MTYL (APEX MTX) 8GY7O 2009 PRIMARY SHEAVE Diagram

#

Description
Price

1

SHEAVE, PRIMARY FIXED

8FA-17611-01-00

$199.05

2

STOPPER

8V0-17639-00-00

$10.52

3

PRIMARY SLIDING SHEAVE COMP.

8FP-17620-00-00

$468.94

4

BUSH, BIMETAL FORMED(8AS)

90384-41242-00

$50.08

5

COLLAR

90387-0514T-00

$14.86

6

BOLT, SET

90113-05041-00

$6.68

7

BOLT, WASHER BASED(88R)

90105-05644-00

$1.94

8

NUT, S/L FLANGE

95607-05200-00

$6.86

9

SPIDER COMPLETE

8FA-17640-02-00

$301.94

10

SLIDER

8BW-17653-00-00

$13.86

11

SLIDER

8ES-17653-00-00

$21.43

12

PIN, SPRING (7F7)

91609-50032-00

$3.66

13

DAMPER, SLIDER

8ES-17655-00-00

$1.83

14

COLLAR

90387-0514U-00

$15.86

15

BOLT, SET

90113-05041-00

$6.68

16

BOLT, WASHER BASED(88R)

90105-05644-00

$1.94

17

NUT, S/L FLANGE

95607-05200-00

$6.86

18

PRIMARY SHEAVE CAP COMP.

8DF-17630-00-00

$176.14

19

BUSH, SOLID(8CP)

90380-28237-00

$31.34

20

BOLT, HEXAGON

97017-06030-00

$3.00

21

WASHER(6TA)

92907-06600-00

$0.78

22

WASHER, PLATE(8BV)

90202-09227-00

$7.48

23

ROLLER, COMP

8FG-17624-20-00

$98.94

24

BUSH

90386-09001-00

$55.20

25

WASHER, PLATE(88R)

90202-08204-00

$5.72

26

WEIGHT COMP

8FS-17605-00-00

$199.09

27

BUSH

90386-08002-00

$11.97

28

RIVET

90266-06002-00

$3.20

29

RIVET

90266-06002-00

$3.20

30

SPRING, COMPRESSION

90501-581L5-00

$28.18

31

V-BELT

8DN-17641-01-00

$85.29

32

BOLT (L=156.5MM)

8V0-17647-10-00

$21.45

33

WASHER(JN5)

92907-16100-00

$12.08
