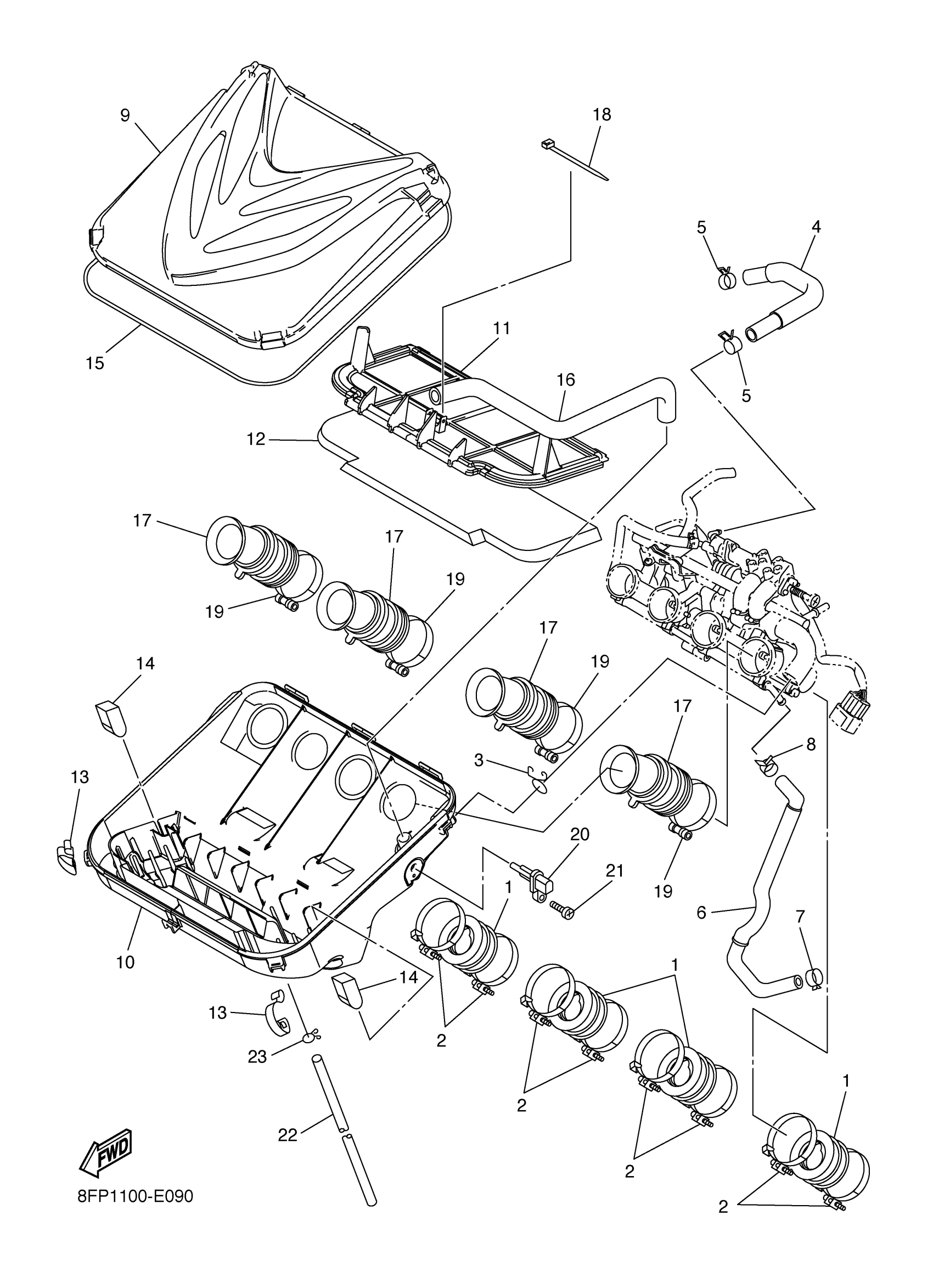

Yamaha RX10MTYL (APEX MTX) 8GY7O 2009 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

8FP-13586-00-00

$20.19

2

HOSE CLAMP ASSY

90450-62004-00

Unavailable

3

CLIP

90467-220A1-00

$4.89

4

HOSE 1

8FP-1243A-00-00

Unavailable

5

CLIP(3BM)

90467-10135-00

$6.59

6

HOSE 3

8FP-12578-00-00

$28.06

7

CLIP(3BM)

90467-10135-00

$6.59

8

CLIP(3YX)

90467-13133-00

$5.30

9

SILENCER, INTAKE 1

8FP-14431-00-00

$106.85

10

SILENCER, INTAKE 2

8FP-14441-00-00

$125.65

11

PLATE, ELEMENT

8FP-14472-00-00

Unavailable

12

ELEMENT, AIR CLEANER

8FP-14451-00-00

$23.44

13

HOOK

8FA-14436-00-00

$5.00

14

DAMPER 1

8FP-14425-00-00

$6.70

15

SEAL

8FP-14452-00-00

Unavailable

16

PIPE

8FP-14419-00-00

Unavailable

17

JOINT, AIR CLEANER 1

8FP-14453-01-00

Unavailable

18

BAND

1UA-82591-00-00

Unavailable

19

HOSE CLAMP ASSY

90450-53007-00

Unavailable

20

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

Unavailable

21

SCREW, PAN TAP.2 SLIT

97707-50620-00

Unavailable

22

PIPE, DRAIN

8FA-1443E-00-00

Unavailable

23

CLIP

90467-100A1-00

Unavailable
