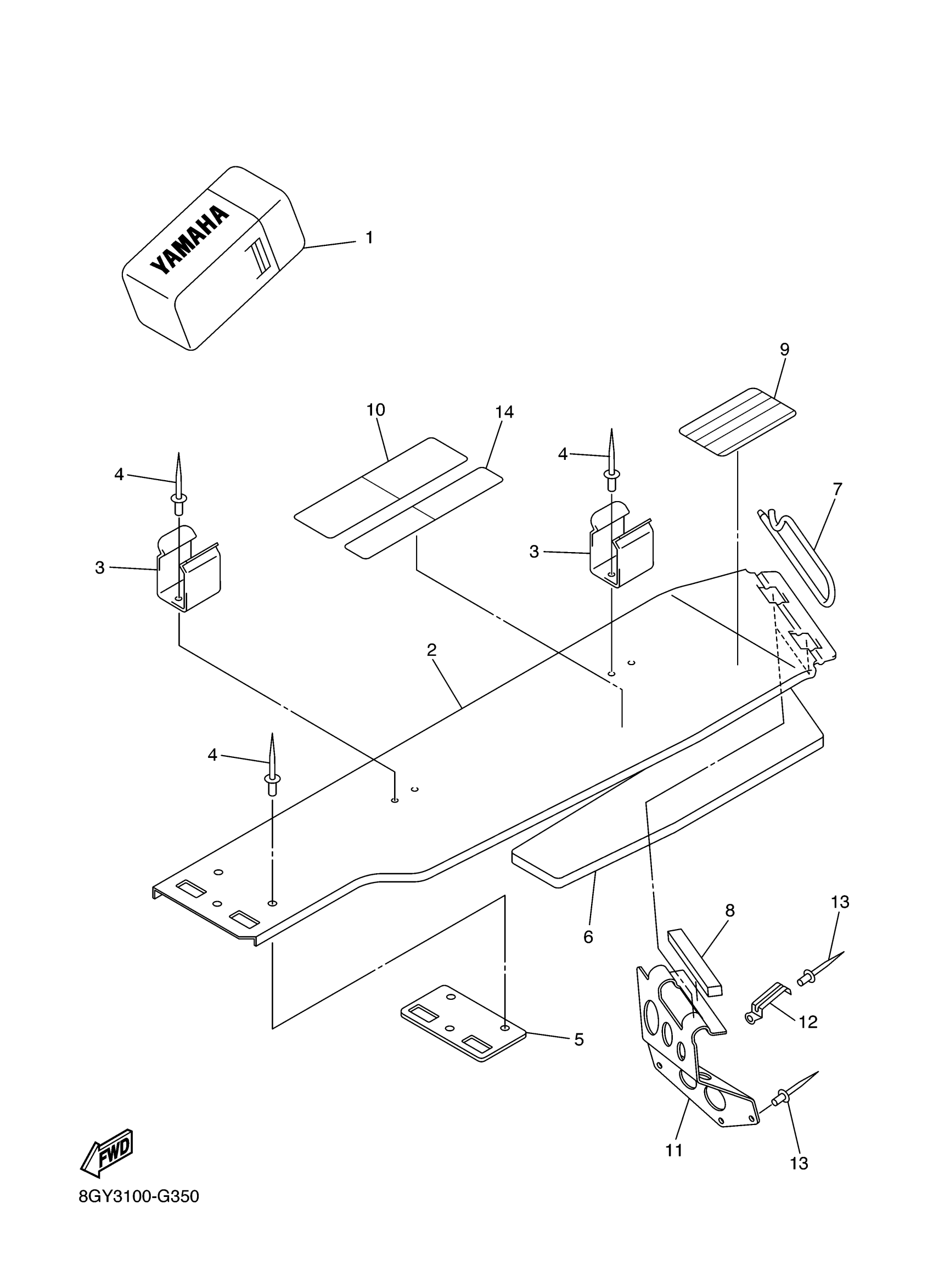

Yamaha RX10MTYL (APEX MTX) 8GY7O 2009 GUARD LUGGAGE BOX Diagram

#

Description
Price

1

TOOL KIT

8FS-28100-01-00

Unavailable

2

GUARD, DRIVE

8FP-77311-00-00

$61.60

3

STAY, BELT

8CR-77338-00-00

$5.14

4

RIVET, BLIND

90267-47195-00

$3.33

5

PROTECTOR

8FP-77373-00-00

$5.77

6

DAMPER 1

8FP-77461-00-00

$3.86

7

PIN

8CR-77384-01-00

$12.18

8

DAMPER 1

8CR-77319-00-00

$0.58

9

LABEL, WARNING 2

8BD-77762-00-00

$3.95

10

LABEL 1

8ES-47578-00-00

$4.03

11

HOOK

8FA-21973-00-00

$10.37

12

CLAMP

90465-08048-00

Unavailable

13

RIVET, BLIND

90267-47195-00

$3.33

14

LABEL, CAUTION

8FP-1417E-01-00

$2.49
