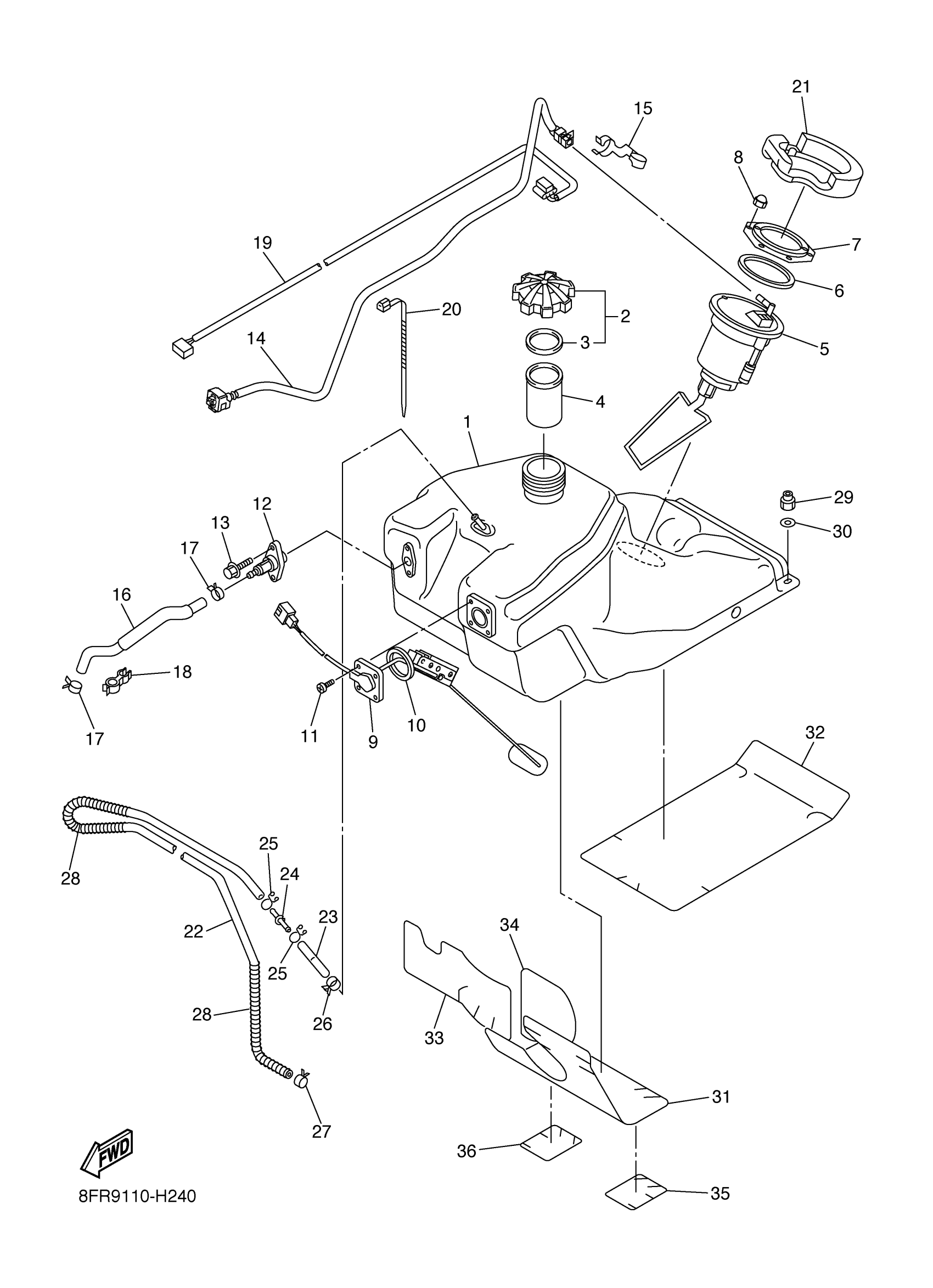

Yamaha RX10MTYL (APEX MTX) 8GY7O 2009 FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL

8FR-24111-01-00

Unavailable

2

CAP ASSY

8FG-24610-01-00

$34.95

3

GASKET, CAP 1

8HV-24641-00-00

Unavailable

4

TUBE, FILLER

8FP-24114-00-00

$4.98

5

FUEL PUMP COMP.

8FP-13907-02-00

Unavailable

6

O-RING

8FP-24486-00-00

$17.26

7

BRACKET, FUEL PUMP

8FP-24491-00-00

$15.88

8

NUT (J17)

95380-06800-00

$6.74

9

SENDER UNIT ASSY, FUEL METER

8HF-85752-00-00

$58.25

10

O-RING (102)

93210-41041-00

$5.86

11

SCREW, BIND

98902-05008-00

$1.23

12

VALVE, CHECK 1

8FP-24362-01-00

$61.94

13

BOLT, FLANGE

95817-06012-00

$1.49

14

PIPE, FUEL 1

8FR-24311-10-00

Unavailable

15

CLAMP

90464-14004-00

$5.40

16

PIPE 2

8FR-24312-00-00

Unavailable

17

CLIP(3YX)

90467-13133-00

$5.13

18

CLIP(J38)

90468-80181-00

Unavailable

19

WIRE, SUB LEAD

8FP-82309-01-00

$32.45

20

CLAMP

90464-13077-00

$6.68

21

DAMPER, LOCATING 1

8FP-24181-01-00

Unavailable

22

TUBE, FLEXIBLE VINYL

91A20-05110-00

Unavailable

23

PIPE, JOINT

8FR-24461-00-00

$3.11

24

PIPE, JOINT

8H8-24376-00-00

$4.29

25

CLIP (8L2)

90467-08017-00

$7.51

26

CLIP (8A1)

90467-09026-00

$2.72

27

CLIP (8A1)

90467-09026-00

$2.72

28

SPRING, COMPRESSION (10L)

90501-08668-00

$10.02

29

NUT, NYLON

95717-08300-00

$2.57

30

WASHER, PLATE

90201-08053-00

$5.63

31

PROTECTOR, FUEL TANK

8FP-24141-00-00

$66.35

32

PROTECTOR, FUEL TANK

8FA-24141-10-00

$58.80

33

INSULATOR, FUEL TANK 1

8FP-2416F-00-00

Unavailable

34

INSULATOR, FUEL TANK 1

8FP-2416F-10-00

$14.42

35

INSULATOR, FUEL TANK 1

8HF-2416F-00-00

$4.20

36

INSULATOR, FUEL TANK 2

8HF-2416G-00-00

$4.23
