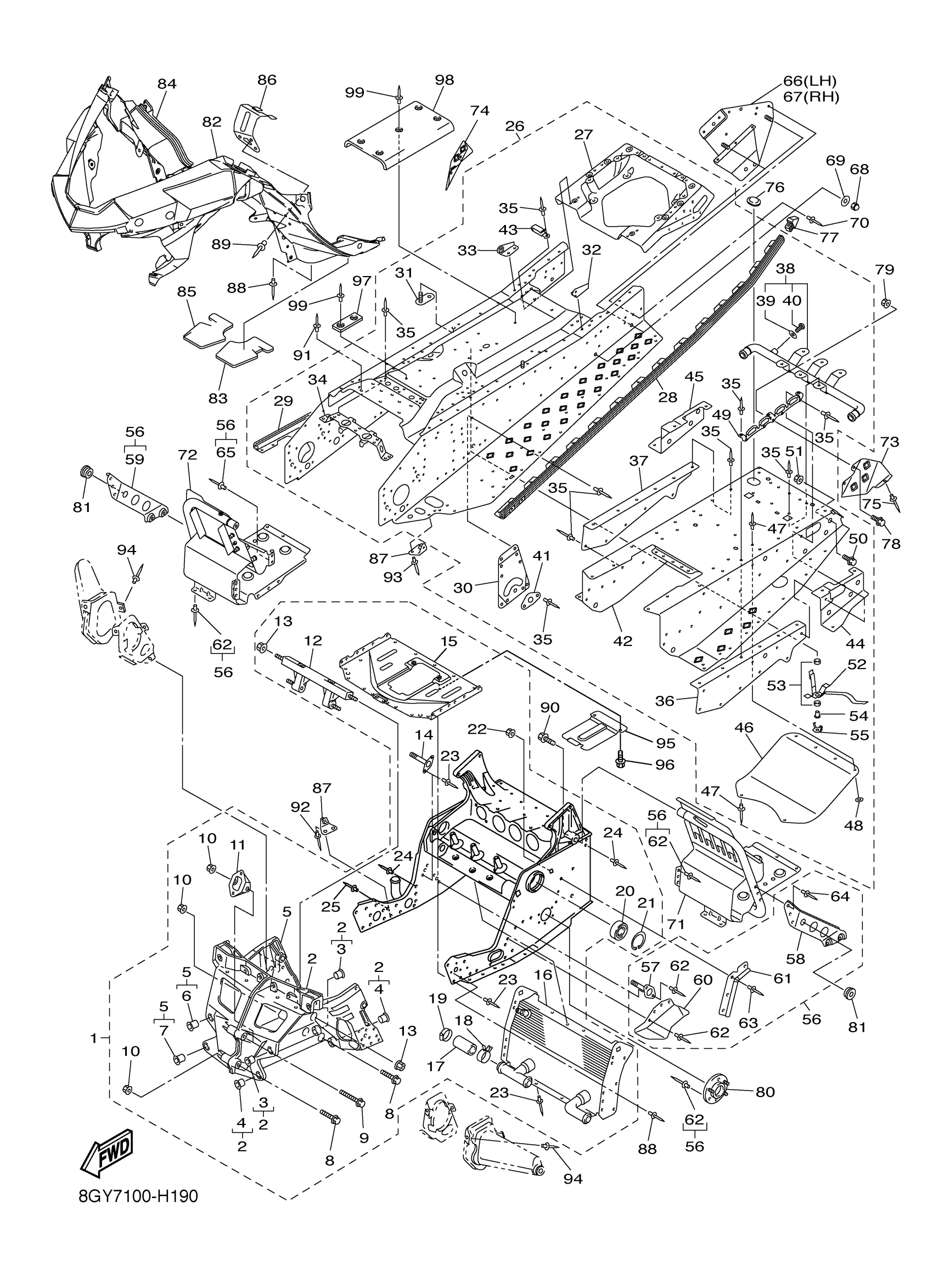

Yamaha RX10MTYL (APEX MTX) 8GY7O 2009 FRAME Diagram

#

Description
Price

1

FRONT FRAME COMP.

8GY-21940-00-00

Unavailable

2

BULKHEAD

8FA-W2197-13-00

$475.74

3

BUSH, SOLID

90381-15001-00

$4.11

4

BUSH, SOLID

90381-16004-00

$12.91

5

BULKHEAD 2

8FA-W2198-20-00

Unavailable

6

BUSH, SOLID

90381-15001-00

$4.11

7

BUSH, SOLID

90381-16004-00

$12.91

8

BOLT, FLANGE

95817-08060-00

$3.28

9

BOLT, WASHER BASED

90105-084A1-00

$9.38

10

NUT, SELF-LOCKING

90185-08169-00

$7.09

11

BRACKET, REGULATOR

8FA-2128A-01-00

$8.25

12

BRACKET, STEERING 1

8FG-21947-00-00

$173.95

13

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

14

BRACKET, CHAIN HOUSING

8FS-21939-00-00

Unavailable

15

PROTECTOR

8FR-2193A-01-00

$93.12

16

HEAT EXCHANGER ASSY

8EP-12440-00-00

Unavailable

17

HOSE 7

8FA-12551-00-00

$7.51

18

CLIP (8M6)

90467-28046-00

$12.43

19

HOSE CLAMP ASSY

90450-35001-00

$5.25

20

BEARING

93306-20650-00

$61.77

21

CIRCLIP(MF1)

99009-62500-00

$6.23

22

NUT, SELF-LOCKING

90185-08169-00

$7.09

23

RIVET, BLIND

90267-47195-00

$3.33

24

RIVET, BLIND

90267-48016-00

$7.85

25

RIVET, BLIND

90267-48177-00

$1.71

26

REAR FRAME COMP.

8FS-21950-20-00

$4,179.99

27

REINEFORCEMENT, FRAME REAR 1

8FS-W2199-00-00

$476.99

28

REINFORCEMENT, FOOTREST 1

8FS-21926-20-00

$244.38

29

. REINFORCEMENT, FOOTREST 2

8FS-21936-20-00

Unavailable

30

BRACKET, MAIN TRACK 1

8FS-21943-00-00

$16.22

31

BRACKET, FUEL TANK 1

8CR-2194N-00-00

$3.14

32

BRACKET 1

8FA-2194X-00-00

$3.54

33

BRACKET 2

8FA-2195X-00-00

$3.54

34

PROTECTOR, MUFFLER

8FA-2194H-01-00

$67.91

35

RIVET, BLIND

90267-47195-00

$3.33

36

PATCH 3

8FS-21963-01-00

Unavailable

37

PATCH 4

8FS-21964-01-00

$39.60

38

HEAT EXCHANGER ASSY 4

8FS-1241A-10-00

$206.94

39

WASHER, SEAL (7G5)

90210-06006-00

$5.72

40

SCREW, PAN HEAD

98502-06008-00

$6.20

41

BRACKET, MAIN TRACK 2

8FK-21953-00-00

$9.82

42

PANEL, SUB FRAME 5

8FS-21916-10-00

Unavailable

43

CLAMP(4MX)

90465-06376-00

$7.08

44

PATCH 1

8FS-21961-01-00

Unavailable

45

PATCH 2

8FS-21962-01-00

$23.43

46

PROTECTOR, FRAME 3

8FS-2197C-00-00

Unavailable

47

RIVET, BLIND

90267-48193-00

$2.83

48

WASHER PLATE (664)

90201-05556-00

$6.98

49

HOOK

8FS-2176M-00-00

Unavailable

50

BOLT, FLANGE

95022-08016-00

$0.55

51

NUT,FLANGE(J10)

95702-08500-00

$0.80

52

STAY, MUFFER

8FR-2194L-00-00

$41.26

53

DAMPER, MUFFLER

8FA-14737-00-00

$3.89

54

COLLAR

90387-08084-00

Unavailable

55

. STAY, MUFFLER

8FR-2194J-00-00

Unavailable

56

FRAME CONNECTION KIT

8FS-W2195-11-00

Unavailable

57

BRACKET, CHAIN HOUSING

8FN-21939-00-00

$8.37

58

BRACKET, 5

8FP-2196M-01-00

$25.69

59

BRACKET, 6

8FP-2197M-01-00

$25.69

60

COVER 2

8FP-2198G-01-00

$20.57

61

CLAMP, WIREHARNESS

8FA-21999-00-00

$7.25

62

RIVET, BLIND

90267-47195-00

$3.33

63

RIVET, BLIND

90267-48018-00

$7.35

64

RIVET, BLIND

90267-48177-00

$1.71

65

RIVET, BLIND(8CR)

90267-47186-00

$2.31

66

BRACKET, RR.TRACK SUSPENTION 1

8FS-21944-10-00

$139.00

67

BRACKET, RR.TRACK SUSPENTION 2

8FS-21954-10-00

Unavailable

68

NUT, CROWN (650)

95380-10800-00

$14.70

69

WASHER, PLATE

90201-10038-00

$5.12

70

RIVET, BLIND

90267-47197-00

$1.56

71

FOOTREST COMP. 1

8FP-21960-01-00

$215.92

72

FOOTREST COMP. 2

8FP-21970-00-00

Unavailable

73

PROTECTOR, FRAME A

8FS-2195A-00-00

$131.18

74

PROTECTOR, FRAME B

8FS-2195B-00-00

$131.18

75

RIVET, BLIND

90267-47195-00

$3.33

76

CAP

8FS-21875-00-00

Unavailable

77

PLUG

8FS-2312G-00-00

$17.68

78

BOLT, FLANGE

95022-08016-00

$0.55

79

NUT,FLANGE(J10)

95702-08500-00

$0.80

80

HOUSING, REINF SUB-ASSY(L.H)

8EK-21920-01-00

$17.68

81

GROMMET(4FU)

90480-13567-00

$3.88

82

FRAME UNDER 1

8FP-2196A-02-00

$60.31

83

DAMPER 2

8FP-77374-00-00

$4.39

84

FRAME, UNDER 2

8FP-2196E-02-00

$60.02

85

DAMPER 3

8FP-77375-00-00

$6.55

86

BRACKET, GUARD FITTING

8FP-21972-00-00

$31.89

87

BRACKET 3

8FA-2196F-00-00

$5.58

88

RIVET, BLIND

90267-48018-00

$7.35

89

RIVET, BLIND

90267-47200-00

$2.28

90

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

91

RIVET, BLIND(8CR)

90267-47186-00

$2.31

92

RIVET, BLIND (22W)

90267-48083-00

$2.78

93

RIVET, BLIND(3JB)

90267-48095-00

$2.00

94

RIVET, BLIND

90267-47195-00

$3.33

95

PROTECTOR, FRAME FR

8FR-2197E-00-00

$42.43

96

BOLT, BUTTON HEAD

92012-06012-00

$2.49

97

SPACER

8FA-21998-00-00

$3.60

98

SHIELD, HEAT

8FG-23892-00-00

$43.78

99

RIVET, BLIND (8L0)

90267-48059-00

$2.46
