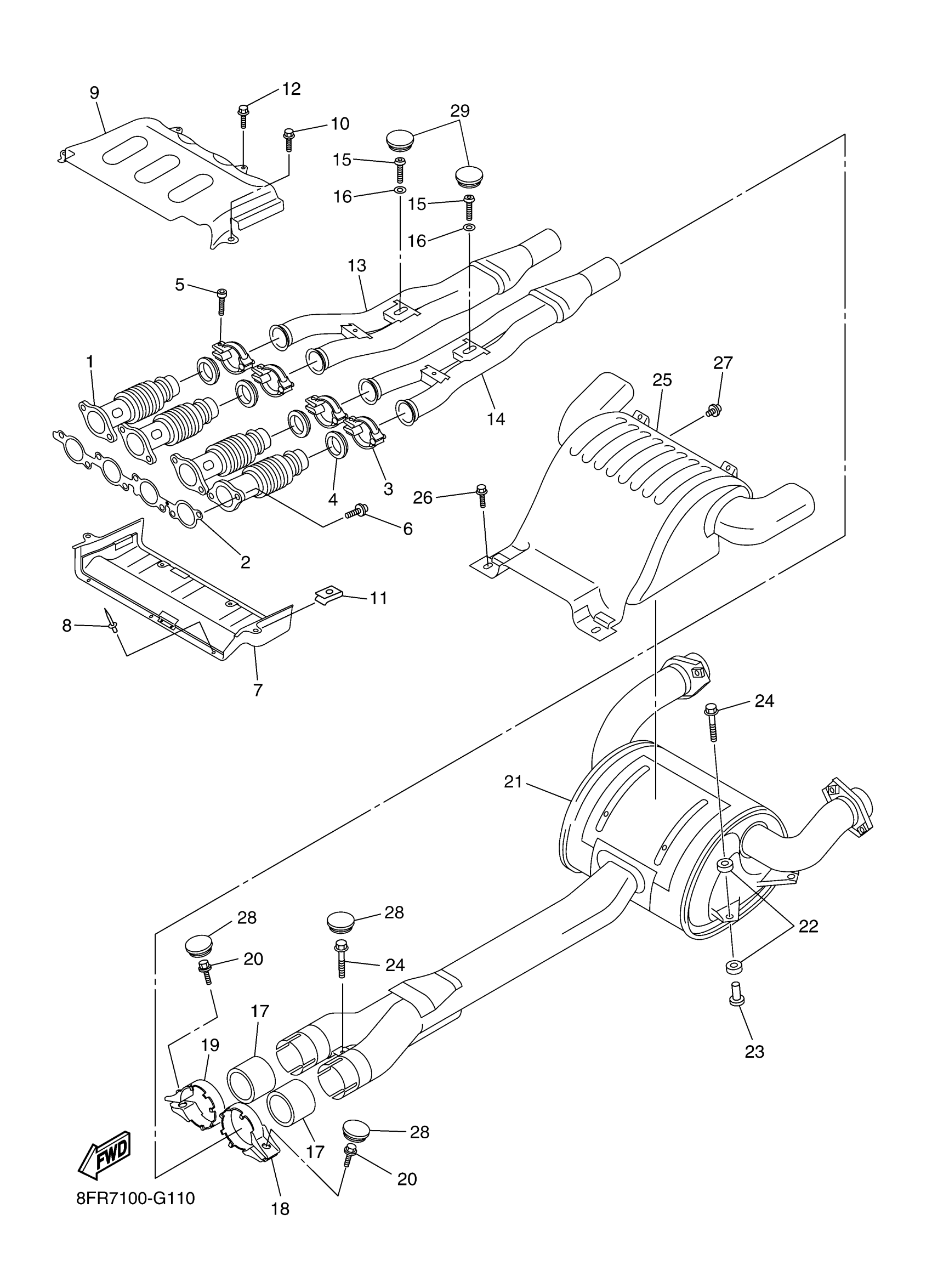

Yamaha RX10MTYL (APEX MTX) 8GY7O 2009 EXHAUST Diagram

#

Description
Price

1

JOINT, EXHAUST 1

8FU-14615-01-00

$175.76

2

GASKET, EXHAUST PIPE

8FA-14613-00-00

$21.54

3

BAND, MUFFLER

8FA-14715-00-00

$32.47

4

GASKET, EXHAUST PIPE

99999-03989-00

$26.83

5

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$3.82

6

BOLT, FLANGE

95022-08020-00

$6.78

7

COVER, EXHAUST

8FU-14627-10-00

$83.95

8

RIVET, BLIND

90267-47195-00

$3.33

9

EXHAUST COVER ASS'Y

8FP-14637-00-00

$91.85

10

BOLT, FLANGE

95812-06008-00

$5.62

11

NUT, SPRING

90183-060A0-00

$6.08

12

BOLT, FLANGE

95817-06016-00

$1.49

13

EXHAUST PIPE ASSY 1

8FR-14610-00-00

$393.58

14

EXHAUST PIPE ASSY 2

8FR-14620-00-00

$393.00

15

BOLT, BUTTON HEAD

92012-08025-00

$5.75

16

WASHER, PLAIN

92990-08200-00

$2.56

17

GASKET, MUFFLER

8FA-14714-10-00

$34.71

18

BAND, SILENCER

8FA-14788-00-00

$20.11

19

BAND, SILENCER

8FA-14789-00-00

$20.51

20

BOLT, FLANGE

95812-08020-00

$1.69

21

SILENCER ASSY

8FS-14750-10-00

$950.99

22

DAMPER, MUFFLER

8FA-14737-00-00

$3.89

23

COLLAR

90387-08071-00

$8.11

24

BOLT, WITH WASHER

90119-08112-00

$7.48

25

PROTECTOR ASSY

8FS-14708-01-00

$259.82

26

BOLT, WITH WASHER

90119-06179-00

$6.68

27

BOLT, FLANGE

95812-06008-00

$5.62

28

PLUG

90338-20004-00

$5.40

29

PLUG

90338-20007-00

$2.75
