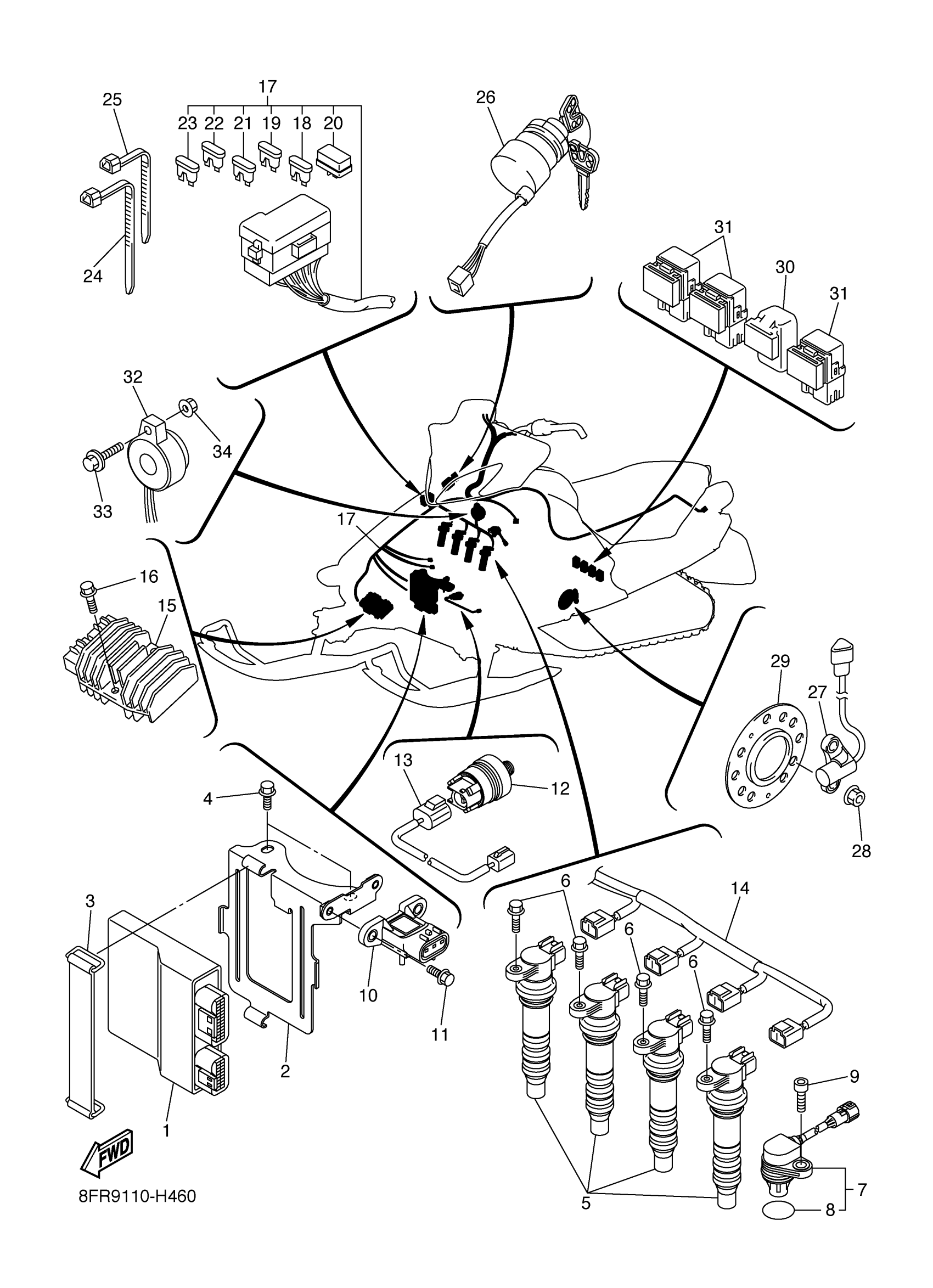

Yamaha RX10MTYL (APEX MTX) 8GY7O 2009 ELECTRICAL 1 Diagram

#

Description
Price

1

ENGINE CONTROL UNIT ASSY

8FS-8591A-00-00

Unavailable

2

BRACKET, UNIT

8FP-85991-00-00

$38.28

3

BAND, BATTERY

2T4-82131-00-00

$7.91

4

BOLT, FLANGE

95817-06016-00

$1.49

5

IGNITION COIL ASSY

8FP-82310-00-00

$189.28

6

BOLT, FLANGE

95817-06025-00

$1.46

7

SENSOR, CAM POSITION

5VY-85896-02-00

$123.54

8

O-RING

4D9-81168-00-00

$3.71

9

BOLT,SOCKET HEAD

91314-06020-00

$2.05

10

SENSOR, PRESSURE

5PS-82380-00-00

$285.54

11

BOLT, FLANGE

95022-06012-00

$3.00

12

OIL PRESSURE SWITCH

8FP-82504-01-00

$57.01

13

WIRE, SUB-LEAD

8FP-82318-00-00

$14.86

14

LEAD WIRE ASSY

8FP-81515-02-00

Unavailable

15

RECTIFIER & REGULATOR ASSY

5JW-81960-00-00

$370.15

16

BOLT, FLANGE DEEP RECESS

95D95-06025-00

Unavailable

17

WIRE HARNESS ASSY

8FP-82590-10-00

Unavailable

18

FUSE

5JJ-82151-20-00

$6.42

19

. FUSE (10A)

67F-82151-40-00

$6.67

20

DIODE ASSY

4WA-81980-00-00

$25.93

21

SLOW BLOW FUSE

JR9-82151-00-00

$9.62

22

. FUSE (3A)

67F-82151-30-00

$4.89

23

FISE (4A-BL)

5JJ-82151-40-00

$3.57

24

CLAMP(4FM)

90464-15195-00

$2.77

25

CLAMP

90464-13077-00

$6.68

26

MAIN SWITCH ASSY

8FJ-82510-00-00

$96.63

27

SENSOR, SPEED

8GK-83755-12-00

$164.09

28

NUT, NYLON

95717-08300-00

$2.57

29

HOUSING, FRONT AXLE

8EK-47551-00-00

$8.97

30

RELAY ASSY

5DM-81950-01-00

$24.72

31

RELAY ASSY (8FP-01)

8FP-81950-01-00

$33.20

32

BUZZER

8CW-83383-00-00

$141.28

33

SCREW, WITH WASHER

90159-05035-00

$6.22

34

NUT, FLANGE

95702-05500-00

$0.74
