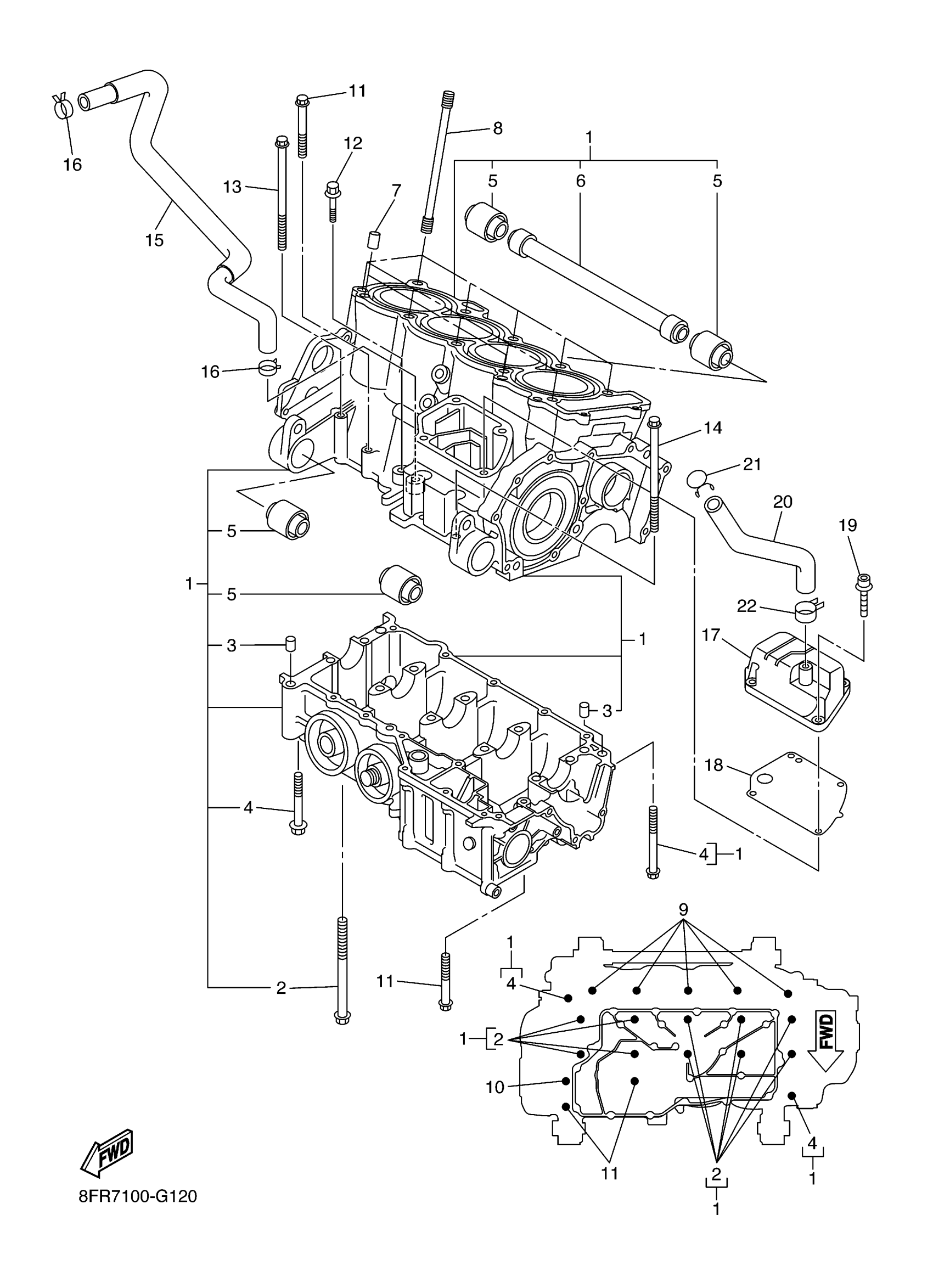

Yamaha RX10MTYL (APEX MTX) 8GY7O 2009 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

8FP-15100-08-00

$2,789.99

2

BOLT, WITH WASHER

90119-09004-00

$9.17

3

PIN, DOWEL(3VD)

99530-10114-00

$2.23

4

BOLT

90109-06100-00

$7.60

5

DAMPER

8FA-2139X-00-00

$38.35

6

SPACER

8FA-21459-00-00

$23.69

7

PIN, DOWEL(3VD)

99530-10114-00

$2.23

8

BOLT, STUD

90116-10619-00

$9.83

9

BOLT, FLANGE

95812-06055-00

$1.46

10

BOLT, FLANGE

95817-06025-00

$1.46

11

BOLT, FLANGE

95817-06045-00

$6.18

12

BOLT, FLANGE(4EB)

95814-06045-00

$2.49

13

BOLT, FLANGE

95812-06080-00

$6.32

14

BOLT, FLANGE

95812-06090-00

$2.85

15

PIPE, BREATHER 1

8FP-11166-00-00

$53.78

16

CLIP (4V3)

90467-20050-00

$3.25

17

COVER

8FP-15413-00-00

$111.80

18

GASKET, CRANKCASE COVER 3

8FP-15462-01-00

$6.48

19

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

$7.45

20

PIPE, BREATHER 2

8FP-11167-00-00

$22.60

21

CLIP

90467-220A1-00

$5.14

22

CLIP

90467-220A0-00

$6.68
