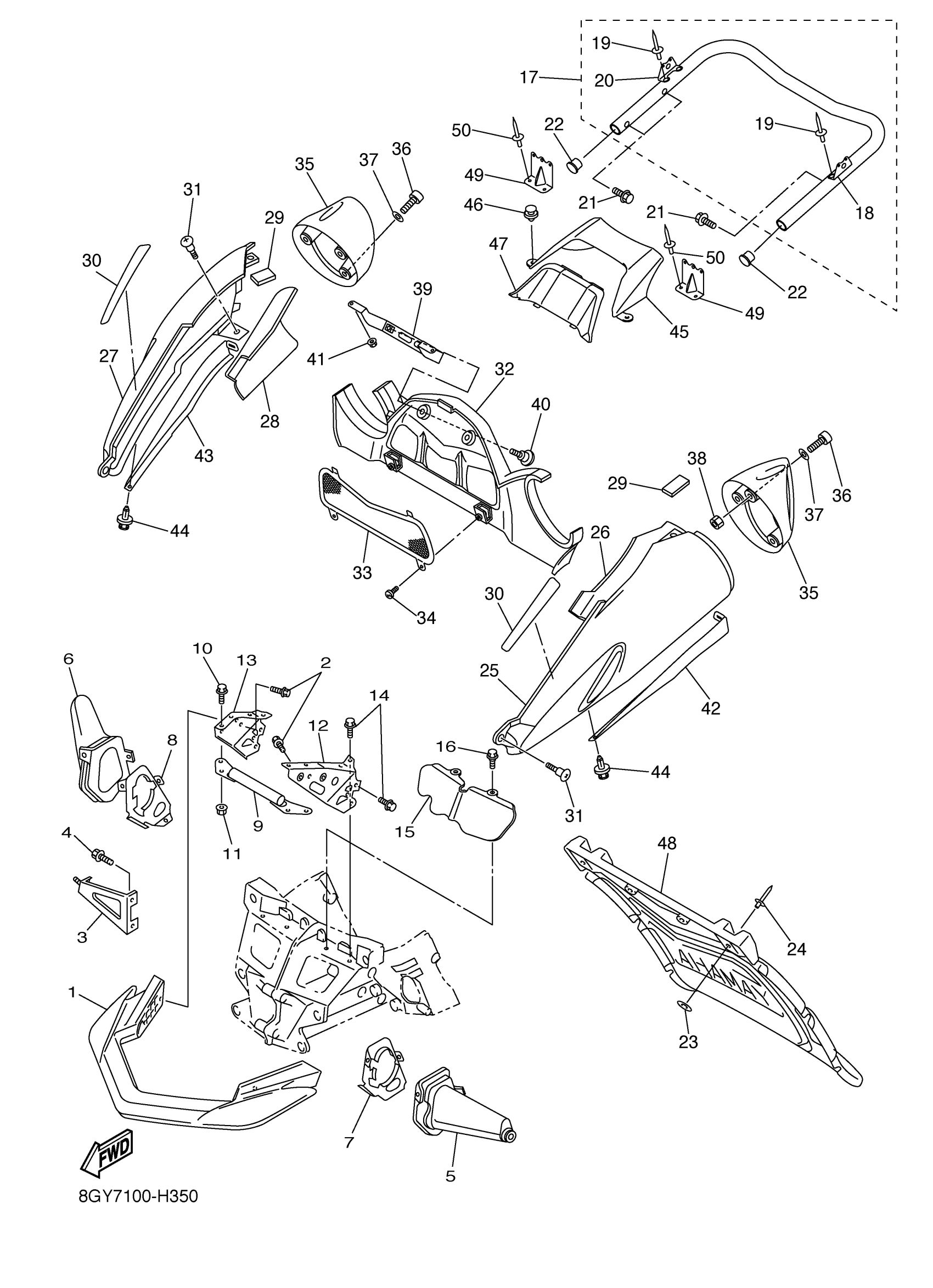

Yamaha RX10MTYL (APEX MTX) 8GY7O 2009 BUMPER Diagram

#

Description
Price

1

BUMPER, FRONT 1

8FA-77511-01-00

$237.55

2

BOLT, FLANGE(JN5)

95817-08016-00

$4.12

3

BRACKET, OIL TANK 1

8ES-2193E-00-00

$19.74

4

BOLT, FLANGE

95822-08014-00

$6.68

5

COVER 1

8FU-2198F-01-00

$27.20

6

COVER 3

8FU-2198J-01-00

$27.20

7

PLATE, STRG BRACKET 1

8FU-2195E-01-00

$11.54

8

PLATE, STRG BRACKET 2

8FU-2195F-01-00

$11.54

9

BRKT. ,FR. FOOD

8FP-21979-00-00

$86.18

10

BOLT, FLANGE

95817-06014-00

$2.15

11

NUT, FLANGE

95702-06500-00

$1.98

12

BRACKET, FRONT

8FA-21949-00-00

$59.08

13

BRACKET, FRONT BUMPER

8FA-21959-00-00

$51.74

14

BOLT, FLANGE

95814-08016-00

$6.68

15

COVER, FRONT

8FP-22865-00-00

$29.00

16

BOLT

90109-06261-00

$1.88

17

REAR BUMPER COMP.

8FS-77540-00-00

$287.11

18

BRACKET 1

8FS-77581-00-00

Unavailable

19

RIVET, BLIND

90267-47195-00

$3.33

20

BRACKET 2

8FS-77582-00-00

Unavailable

21

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

22

PLUG (5R2)

90338-18122-00

$6.71

23

WASHER, PLATE

90201-04027-00

$1.88

24

RIVET, BLIND

90267-47200-00

$2.28

25

PROTECTOR 1

8FP-77551-01-33

$101.09

25

PROTECTOR 1

8FP-77551-01-P2

Unavailable

26

LINING, SHROUD 1

8FP-77261-00-00

Unavailable

27

PROTECTOR 2

8FP-77552-01-33

$101.09

27

PROTECTOR 2

8FP-77552-01-P2

$108.83

28

LINING, SHROUD 2

8FP-77262-00-00

$23.00

29

LINING, SHROUD 3

8FP-77263-00-00

Unavailable

30

PROTECTOR, SIDE 1

8FR-77561-00-00

$11.32

31

SCREW, BINDING

90154-06009-00

$2.92

32

COVER, TAILLIGHT

8FS-84516-00-00

$205.78

33

LOUVER 1

8FS-77441-00-00

$185.95

34

SCREW, TAPPING

97702-50016-00

$1.98

35

CAP

8FS-77517-00-00

Unavailable

36

BOLT,SOCKET HEAD

91314-06020-00

$2.05

37

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.78

38

NUT, HEXAGON

95380-06600-00

$4.13

39

BRACKET, REAR (L.H)

8FS-77533-00-00

Unavailable

40

BOLT

90109-06220-00

$7.43

41

NUT, U FLANGE

95604-06200-00

$2.35

42

PROTECTOR 6

8FS-77556-00-00

$66.09

43

PROTECTOR 7

8FS-77557-00-00

$41.37

44

RIVET

90269-06081-00

$5.69

45

COVER, TAILLIGHT

8GL-84516-00-00

$26.78

46

RIVET

90269-08006-00

$2.72

47

COVER

8FS-84544-00-00

Unavailable

48

FLAP

8GT-K7595-00-00

Unavailable

49

BRACKET 1

8FS-83955-00-00

$34.34

50

RIVET, BLIND

90267-47195-00

$3.33
