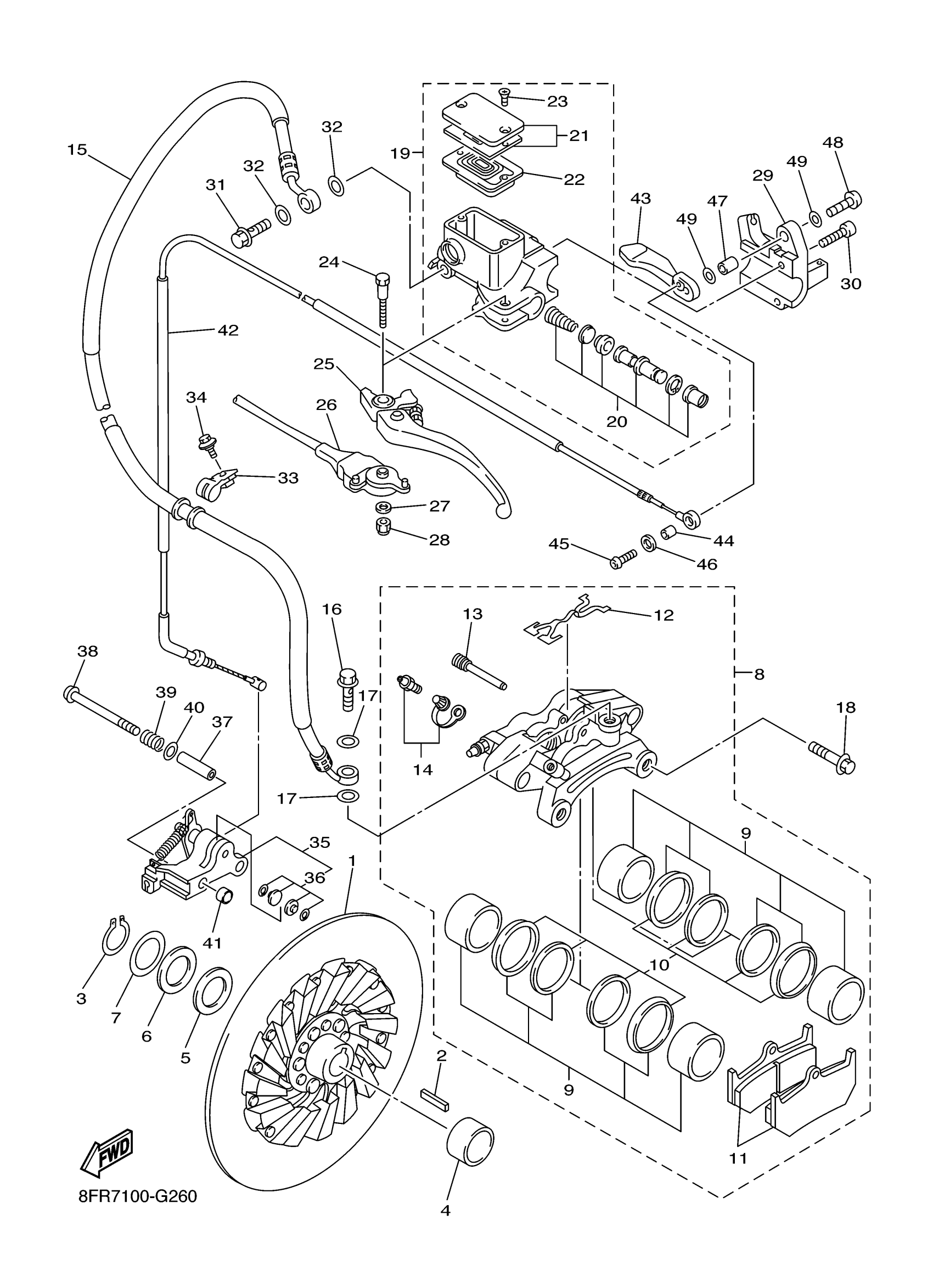

Yamaha RX10MTYL (APEX MTX) 8GY7O 2009 BRAKE Diagram

#

Description
Price

1

DISK BRAKE ASSY

8FU-2581T-00-00

$282.89

2

KEY, STRAIGHT

90282-07002-00

$5.98

3

CIRCLIP

99009-24400-00

$7.49

4

COLLAR

90387-25012-00

Unavailable

5

COLLAR

90387-25011-00

$7.65

6

WASHER, PLATE (888)

90201-25527-00

$7.60

7

WASHER, PLATE (8R6)

90201-252F1-00

$6.92

8

CALIPER ASSY (LEFT)

8FU-2580T-01-00

$492.78

9

PISTON ASSY, CALIPER

8FU-W0057-00-00

$104.54

10

CALIPER SEAL KIT

3JD-W0047-10-00

$51.83

11

BRAKE PAD KIT 2

8FU-W0046-01-00

$60.58

12

SUPPORT, PAD

8FU-25919-00-00

$16.02

13

PIN, PAD

8FU-25924-00-00

$10.88

14

BLEED SCREW KIT

8CR-W0048-00-00

$9.71

15

HOSE, BRAKE 1

8FS-25872-10-00

$68.69

16

BOLT, UNION

90401-10015-00

$9.89

17

WASHER, PLATE(481)

90201-10118-00

$2.91

18

BOLT, FLANGE

90105-10096-00

$8.86

19

MASTER CYLINDER SUB ASSY

8FA-W2587-00-00

$255.42

20

CYLINDER KIT, MASTER

8CR-W0041-00-00

$47.42

21

RESERVOIR CAP SET

8CR-W2585-00-00

$35.75

22

DIAPHRAGM, RESERVOIR

55U-25854-00-00

$21.68

23

SCREW, FLAT

98707-04012-00

$1.43

24

BOLT, LEVER

8CR-2589F-00-00

$6.06

25

LEVER 1

8DN-83912-00-00

$51.94

26

STOP SWITCH ASSY

8FP-82530-00-00

$44.88

27

WASHER, PLAIN

8CR-8398X-00-00

$8.77

28

NUT, NYLON

95707-05300-00

$2.74

29

BRACKET, MASTER CYLINDER

8FA-25867-00-00

$28.51

30

BOLT,SOCKET

91317-06025-00

$2.05

31

BOLT, UNION

90401-10015-00

$9.89

32

WASHER, PLATE(481)

90201-10118-00

$2.91

33

HOLDER, BRAKE HOSE

8FA-25886-00-00

$7.80

34

BOLT

90109-06257-00

$5.88

35

PARKING BRAKE COMP.

8FU-25970-01-00

$196.72

36

PARKING BRAKE PAD KIT

8FA-W0045-00-00

$48.30

37

COLLAR

90387-06058-00

$5.89

38

BOLT

90111-06048-00

$4.55

39

SPRING, COMPRESSION

90501-120A0-00

$6.32

40

WASHER 6474553400

90201-12161-00

$4.67

41

COLLAR

90387-06085-00

$5.17

42

CABLE, BRAKE

8FS-26351-00-00

Unavailable

43

LEVER 2

8FA-83922-00-00

$29.97

44

COLLAR

90387-06043-00

$6.68

45

BOLT, BUTTON HEAD

92017-06014-00

$2.78

46

. WASHER, PLATE

90201-06050-00

Unavailable

47

COLLAR

90387-081M9-00

$1.89

48

BOLT,HEX. SOCKET BUTTON

90111-08054-00

$1.54

49

WASHER PLATE 141181390000

90201-08085-00

$6.38
