- RX10MTAXW (APEX MTX SE 40TH ANNIVERSARY (no reverse)) 8GY3 2008
TRACK SUSPENSION 1

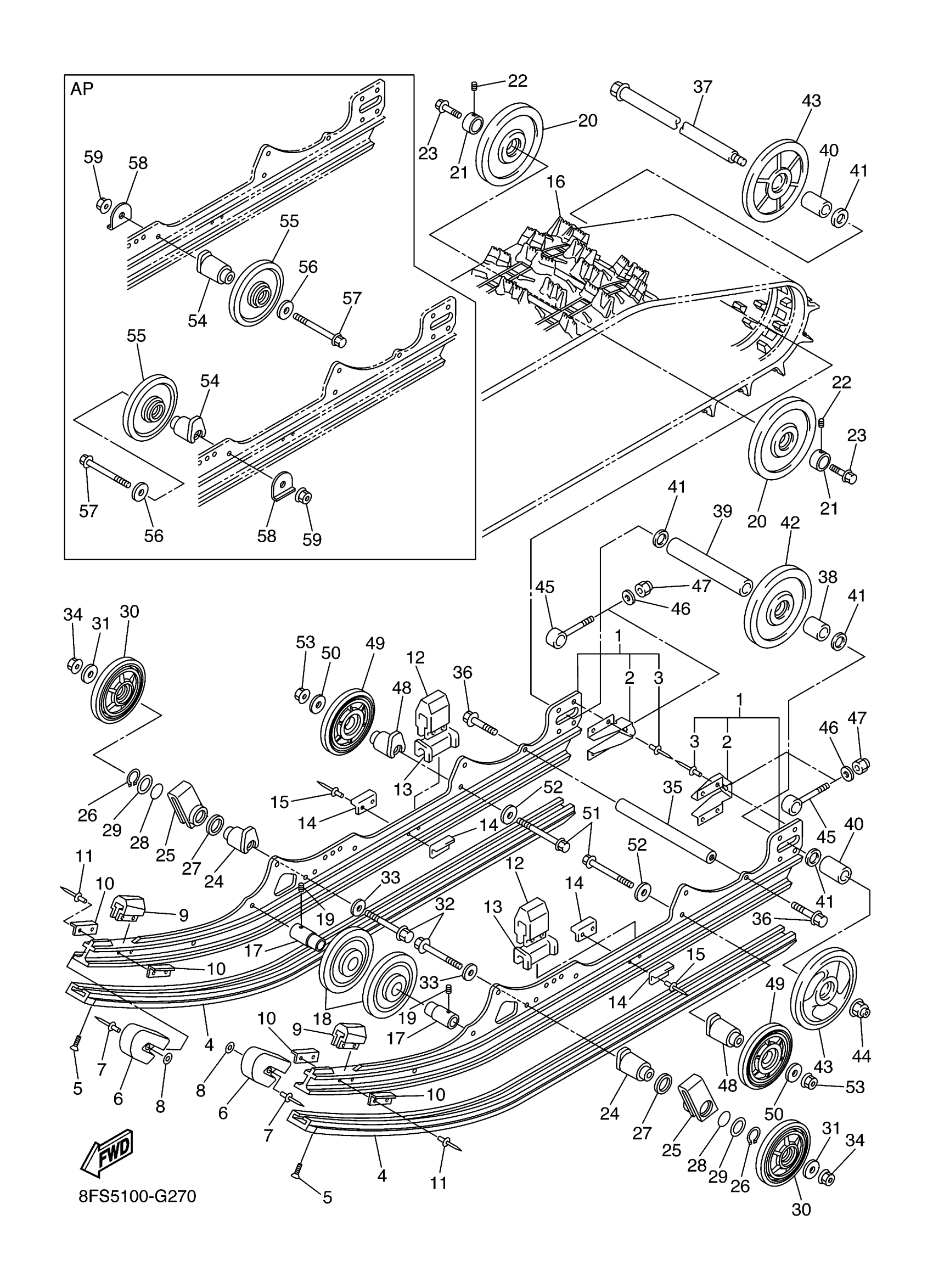

Yamaha RX10MTAXW (APEX MTX SE 40TH ANNIVERSARY (no reverse)) 8GY3 2008 TRACK SUSPENSION 1 Diagram
#
1
FRAME, SLIDING
8FS-W4741-00-00
Unavailable
2
BRACKET
8DM-4741B-00-00
$45.99
3
RIVET
8V0-47468-00-00
$10.49
4
FX NYTRO 162" HP WIDE HYFAX
SMA-8HR92-00-BK
Unavailable
5
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
6
RUNNER, SLIDING 2
8ED-47422-00-00
$46.99
7
RIVET BLIND
90267-48194-00
$3.28
8
WASHER, PLATE(8CM)
90201-047R8-00
$3.02
9
DAMPER 1
8ES-47456-00-00
$6.99
10
PLATE, DAMPER
8K2-47458-01-00
$4.77
11
RIVET, BLIND
90267-48199-00
$3.76
12
DAMPER 2
8CM-47457-00-00
$16.49
13
SPACER
8CM-47341-00-00
$16.49
14
PLATE, DAMPER
8AX-47458-00-00
$10.99
15
RIVET, BLIND
90267-48199-00
$3.76
16
TRACK ASSY
8FS-47110-00-00
Unavailable
17
COLLAR
8ES-47319-01-00
Unavailable
18
SUSPENSION WHEEL ASSY
8ET-47310-00-00
Unavailable
19
BOLT, SET (8K2)
90113-06039-00
Unavailable
20
GUIDE WHEEL ASSY
8CR-47550-00-00
Unavailable
21
COLLAR 1
8FS-47365-00-00
Unavailable
22
BOLT, SET (8K2)
90113-06039-00
Unavailable
23
BOLT (8V0)
90109-10771-00
Unavailable
24
BRACKET 7
8ES-47419-00-00
Unavailable
25
HOOK 1
8ES-47446-00-00
Unavailable
26
CIRCLIP(6U2)
93410-35M10-00
Unavailable
27
O-RING (16G)
93210-35537-00
Unavailable
28
O-RING (21A)
93210-34633-00
Unavailable
29
WASHER, PLATE
90201-35013-00
Unavailable
30
SUSPENSION WHEEL ASSY
8FS-47310-01-00
Unavailable
31
WASHER, PLATE(42X)
90201-105H3-00
Unavailable
32
BOLT, FLANGE
95817-10080-00
Unavailable
33
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
34
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
35
SHAFT 3
8ES-47485-00-00
Unavailable
36
BOLT, FLANGE
90105-10092-00
Unavailable
37
REAR AXLE COMP.
8L8-47520-10-00
Unavailable
38
COLLAR
90387-20015-00
Unavailable
39
COLLAR
90387-20016-00
Unavailable
40
COLLAR
90387-20019-00
Unavailable
41
WASHER, PLATE(89W)
90201-205R6-00
Unavailable
42
GUIDE WHEEL ASSY
8CR-47550-10-00
Unavailable
43
GUIDE WHEEL ASSY
8EK-47550-20-00
Unavailable
44
NUT, SELF-LOCKING (8BF)
95607-14200-00
Unavailable
45
COLLAR 3
8DM-47479-00-00
Unavailable
46
WASHER, PLATE
92990-10600-00
Unavailable
47
NUT, NYLON
95707-10300-00
Unavailable
48
BRACKET 7
8ES-47419-10-00
Unavailable
49
SUSPENSION WHEEL ASSY
8FS-47310-01-00
Unavailable
50
WASHER, PLATE(42X)
90201-105H3-00
Unavailable
51
BOLT, FLANGE
95817-10080-00
Unavailable
52
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
53
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
54
BRACKET 7
8ES-47419-00-00
Unavailable
55
SUSPENSION WHEEL ASSY
8FS-47310-01-00
Unavailable
56
WASHER, PLATE(42X)
90201-105H3-00
Unavailable
57
BOLT, FLANGE
95817-10080-00
Unavailable
58
WASHER, CLAW
90214-10003-00
Unavailable
59
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
