- RX10MTAXW (APEX MTX SE 40TH ANNIVERSARY (no reverse)) 8GY3 2008
TRACK DRIVE 2

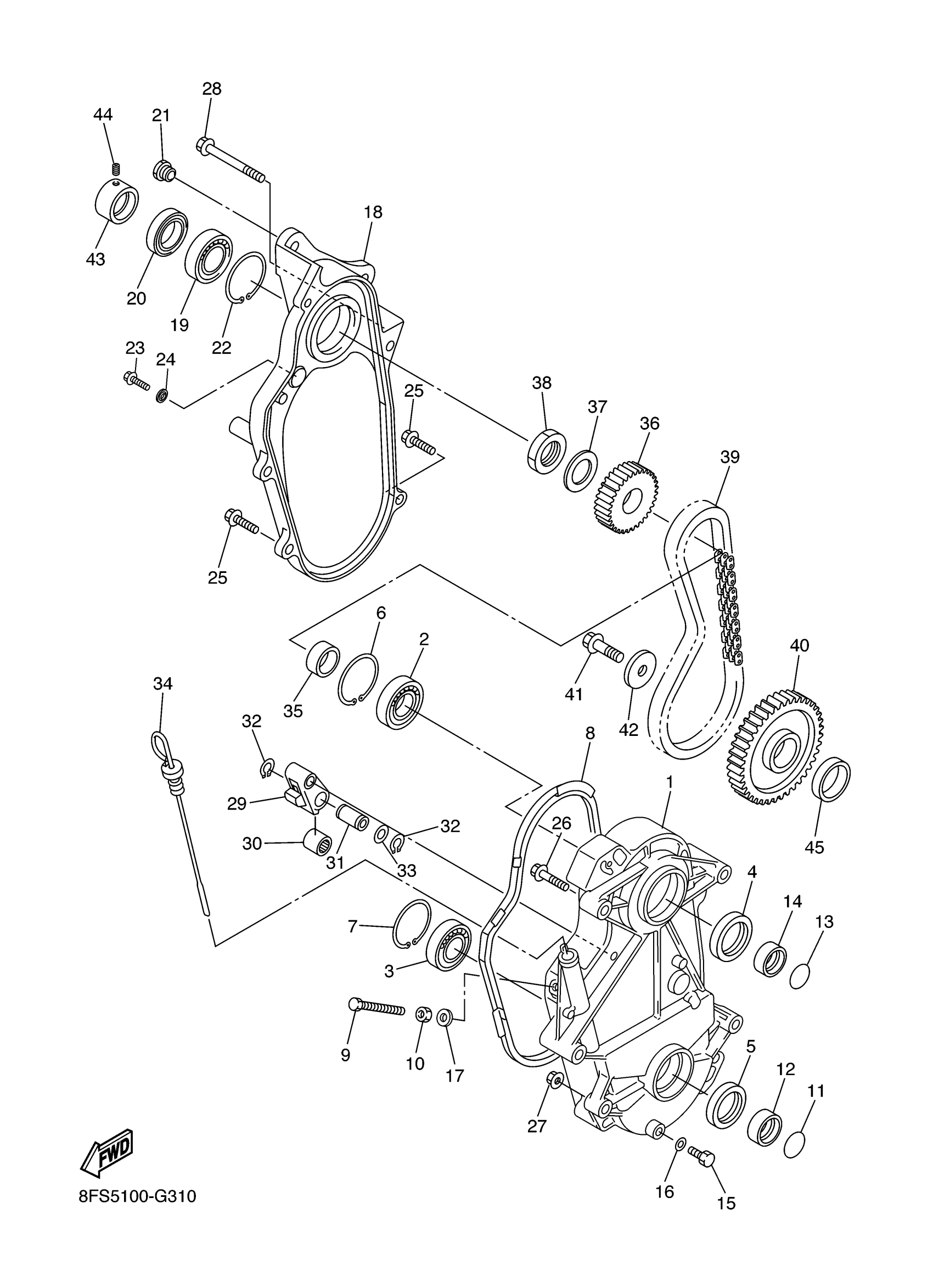

Yamaha RX10MTAXW (APEX MTX SE 40TH ANNIVERSARY (no reverse)) 8GY3 2008 TRACK DRIVE 2 Diagram
#
1
HOUSING, CHAIN
8FP-47541-10-00
$237.99
2
BEARING (5X5)
93306-20627-00
$75.99
3
BEARING
93306-20592-00
$59.99
4
OIL SEAL
93102-40014-00
$15.99
5
OIL SEAL
93102-35010-00
$23.99
6
CIRCLIP(MF1)
99009-62500-00
$8.49
7
CIRCLIP(26H)
99009-52500-00
$12.49
8
RING, HOUSING
8FP-47558-10-00
$72.99
9
BOLT, HEXAGON (8F3)
90101-10357-00
Unavailable
10
NUT (682)
95380-10700-00
Unavailable
11
O-RING (169)
93210-25071-00
$8.49
12
COLLAR(8CJ)
90387-2508C-00
$46.99
13
O-RING (498)
93210-29282-00
$8.49
14
COLLAR
90387-30004-00
Unavailable
15
BOLT, HEXAGON
97017-08016-00
$8.49
16
WASHER, SEAL(8AB)
90210-08017-00
Unavailable
17
WASHER, PLATE(56J)
90201-106H5-00
Unavailable
18
CAP, HOUSING
8ES-47543-30-00
Unavailable
19
BEARING
93306-20532-00
Unavailable
20
OIL SEAL
93102-35473-00
Unavailable
21
NUT(8CJ)
90179-10679-00
Unavailable
22
CIRCLIP(26H)
99009-52500-00
$12.49
23
BOLT, FLANGE
95817-06020-00
Unavailable
24
WASHER, SEAL (7G5)
90210-06006-00
Unavailable
25
BOLT, FLANGE
95817-08035-00
Unavailable
26
BOLT, FLANGE(4GB)
95817-10045-00
Unavailable
27
NUT, S/L FLANGE
95602-10200-00
Unavailable
28
BOLT,FLANGE
95817-10090-00
Unavailable
29
HOLDER
8ES-47613-00-00
Unavailable
30
BEARING
93311-32685-00
Unavailable
31
COLLAR
90387-22005-00
Unavailable
32
CIRCLIP
99009-26400-00
Unavailable
33
WASHER, PLATE
90201-266P2-00
Unavailable
34
LEVEL, OIL
8FA-47546-01-00
Unavailable
35
COLLAR
90387-30005-00
Unavailable
36
SPROCKET, CHAIN DRIVE
8FA-17682-00-00
Unavailable
37
WASHER, CONICAL SPRING
90208-28001-00
Unavailable
38
NUT
90170-28009-00
Unavailable
39
CHAIN
94890-09068-00
Unavailable
40
SPROCKET, CHAIN DRIVEN (40T)
8DW-47587-01-00
Unavailable
41
BOLT, FLANGE(3GD)
95817-10025-00
Unavailable
42
WASHER, PLATE (856)
90201-10321-00
Unavailable
43
COLLAR
90387-25009-00
Unavailable
44
BOLT, SET
90113-06006-00
Unavailable
45
COLLAR
90387-2508B-00
Unavailable
