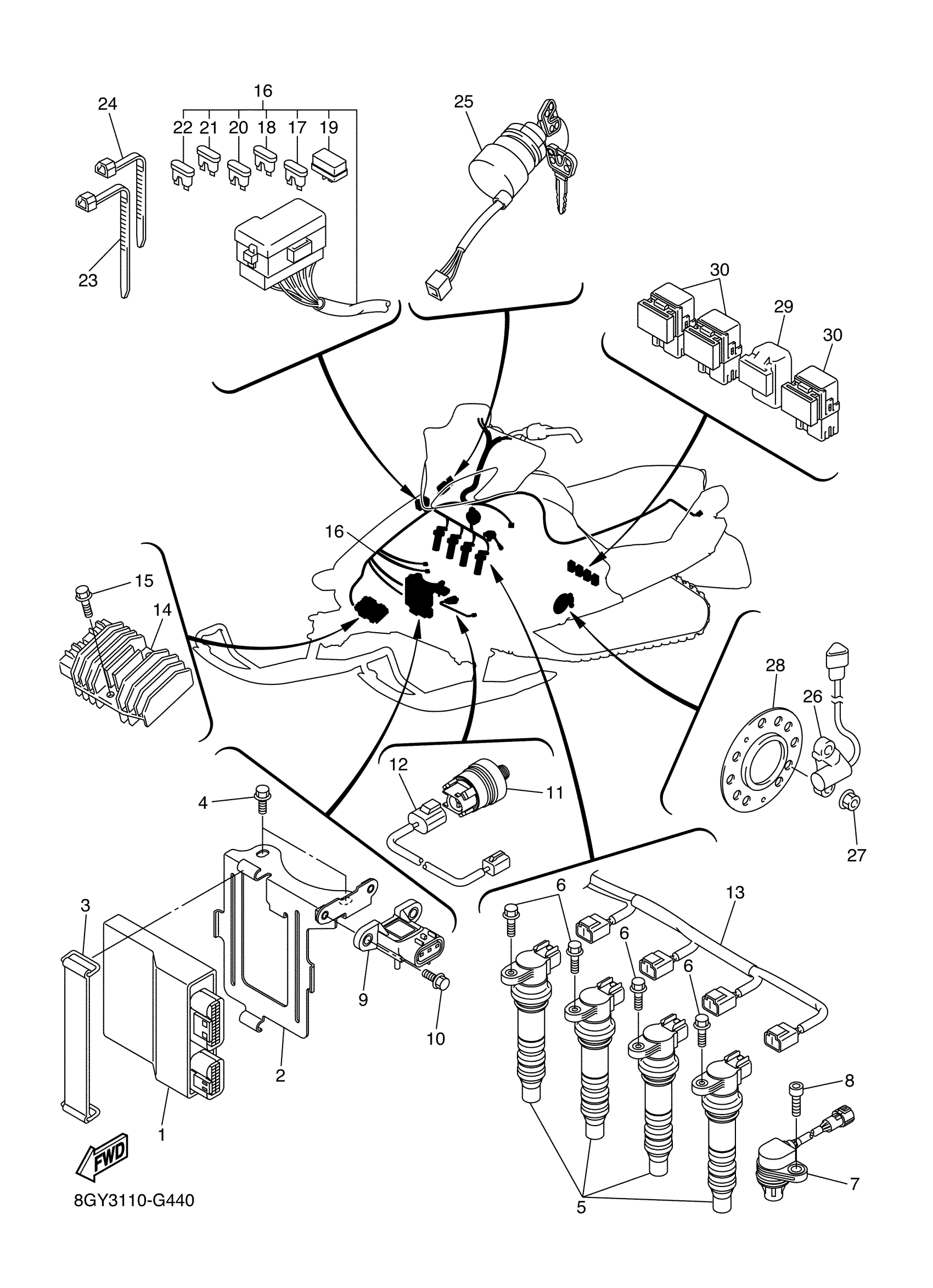

Yamaha RX10MTAXW (APEX MTX SE 40TH ANNIVERSARY (no reverse)) 8GY3 2008 ELECTRICAL 1 Diagram

#

Description
Price

1

ENGINE CONTROL UNIT ASSY

8FS-8591A-00-00

Unavailable

2

BRACKET, UNIT

8FP-85991-00-00

Unavailable

3

BAND, BATTERY

2T4-82131-00-00

$7.40

4

BOLT, FLANGE

95817-06016-00

$1.40

5

IGNITION COIL ASSY

8FP-82310-00-00

$177.09

6

BOLT, FLANGE

95817-06025-00

Unavailable

7

SENSOR, CAM POSITION

5VY-85896-02-00

$118.55

8

BOLT,SOCKET HEAD

91314-06020-00

$1.91

9

SENSOR, PRESSURE

5PS-82380-00-00

$281.21

10

BOLT, FLANGE

95022-06012-00

$2.80

11

OIL PRESSURE SWITCH

8FP-82504-01-00

$53.34

12

WIRE, SUB-LEAD

8FP-82318-00-00

$14.64

13

LEAD WIRE ASSY

8FP-81515-02-00

Unavailable

14

RECTIFIER & REGULATOR ASSY

5JW-81960-00-00

$364.55

15

BOLT, FLANGE

95822-06025-00

$1.37

16

WIRE HARNESS ASSY

8FP-82590-10-00

Unavailable

17

FUSE

5JJ-82151-20-00

Unavailable

18

. FUSE (10A)

67F-82151-40-00

$6.07

19

DIODE ASSY

4WA-81980-00-00

Unavailable

20

SLOW BLOW FUSE

JR9-82151-00-00

Unavailable

21

. FUSE (3A)

67F-82151-30-00

$4.69

22

FISE (4A-BL)

5JJ-82151-40-00

Unavailable

23

CLAMP(4FM)

90464-15195-00

Unavailable

24

CLAMP

90464-13077-00

Unavailable

25

MAIN SWITCH ASSY

8FJ-82510-00-00

Unavailable

26

SENSOR, SPEED

8FP-83755-01-00

Unavailable

27

NUT, NYLON

95717-08300-00

Unavailable

28

HOUSING, FRONT AXLE

8EK-47551-00-00

Unavailable

29

RELAY ASSY

5DM-81950-01-00

Unavailable

30

RELAY ASSY (8FP-01)

8FP-81950-01-00

Unavailable
