- RX10MSK (RX-1 MOUNTAIN LIMITED EDITION) 8GA1 2005
TRACK DRIVE 2

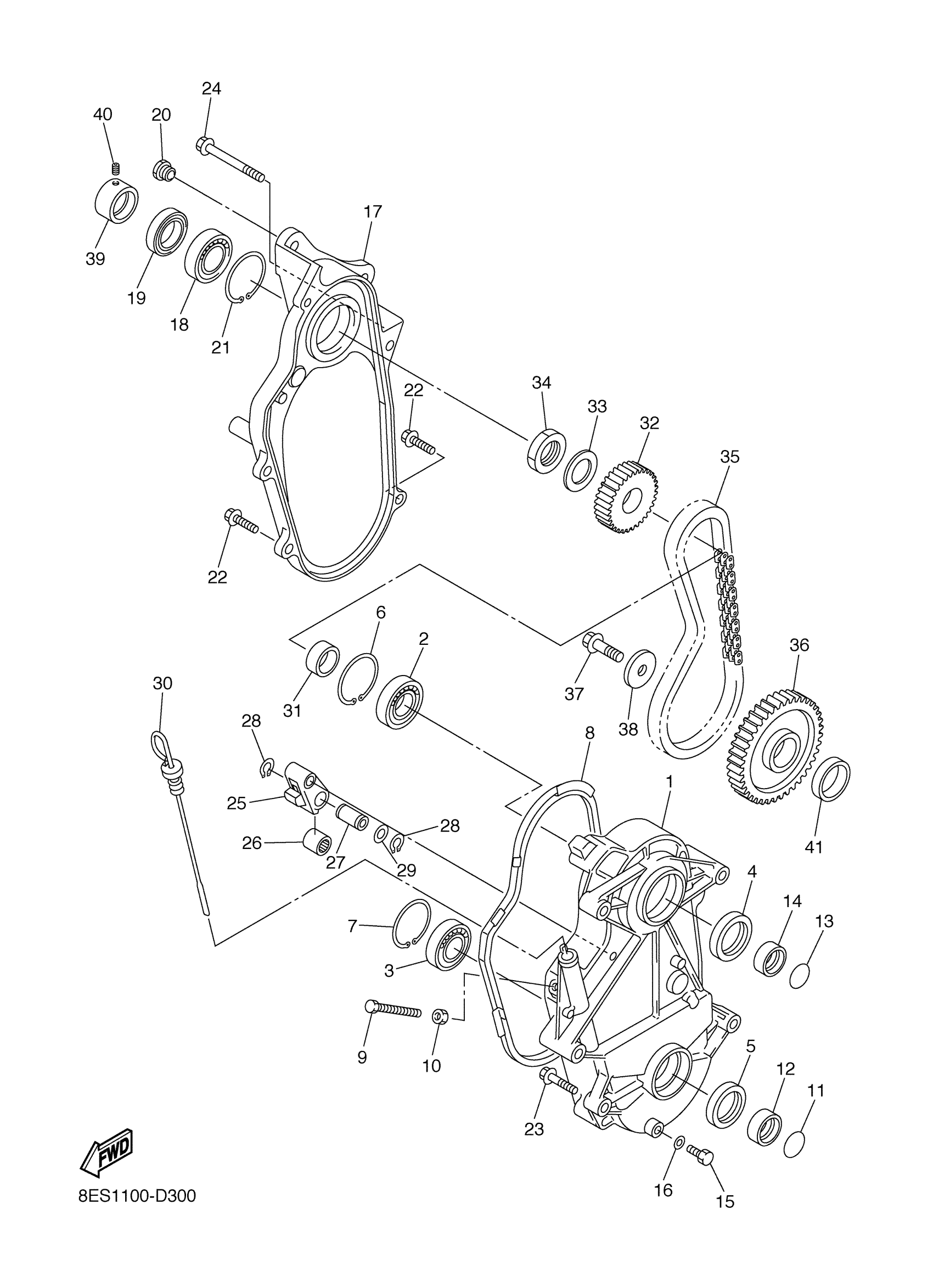

Yamaha RX10MSK (RX-1 MOUNTAIN LIMITED EDITION) 8GA1 2005 TRACK DRIVE 2 Diagram
#
1
HOUSING, CHAIN
8FA-47541-00-00
Unavailable
2
BEARING (5X5)
93306-20627-00
$75.99
3
BEARING
93306-20592-00
$59.99
4
OIL SEAL
93102-40014-00
$15.99
5
OIL SEAL
93102-35010-00
$23.99
6
CIRCLIP(MF1)
99009-62500-00
$8.49
7
CIRCLIP(26H)
99009-52500-00
$12.49
8
RING, RUBBER HOUSING
8FA-47558-01-00
Unavailable
9
BOLT, HEXAGON (8F3)
90101-10357-00
Unavailable
10
NUT(6TD)
95337-10600-00
$9.49
11
O-RING (169)
93210-25071-00
$8.49
12
COLLAR(8CJ)
90387-2508C-00
$46.99
13
O-RING (498)
93210-29282-00
$8.49
14
COLLAR
90387-30004-00
Unavailable
15
BOLT(8BC)
97007-08014-00
$8.49
16
WASHER, SEAL(8AB)
90210-08017-00
Unavailable
17
CAP, HOUSING
8ES-47543-01-00
Unavailable
18
BEARING
93306-20532-00
Unavailable
19
OIL SEAL
93102-35010-00
$23.99
20
NUT(8CJ)
90179-10679-00
Unavailable
21
CIRCLIP(26H)
99009-52500-00
$12.49
22
BOLT, FLANGE(6TA)
95817-08030-00
Unavailable
23
BOLT, FLANGE(4GB)
95817-10045-00
Unavailable
24
BOLT,FLANGE
95817-10090-00
Unavailable
25
HOLDER
8ES-47613-00-00
Unavailable
26
BEARING
93311-32685-00
Unavailable
27
COLLAR
90387-22005-00
Unavailable
28
CIRCLIP
99009-26400-00
Unavailable
29
WASHER, PLATE
90201-266P2-00
Unavailable
30
LEVEL, OIL
8FA-47546-01-00
Unavailable
31
COLLAR
90387-30005-00
Unavailable
32
SPROCKET, CHAIN DRIVE
8FA-17682-10-00
Unavailable
33
WASHER, CONICAL SPRING
90208-28001-00
Unavailable
34
NUT
90170-28009-00
Unavailable
35
CHAIN
94890-09070-00
Unavailable
36
SPROCKET, CHAIN DRIVEN (40T)
8DW-47587-01-00
Unavailable
37
BOLT, FLANGE(3GD)
95817-10025-00
Unavailable
38
WASHER, PLATE (856)
90201-10321-00
Unavailable
39
COLLAR
90387-25009-00
Unavailable
40
BOLT, SET
90113-06006-00
Unavailable
41
COLLAR
90387-2508B-00
Unavailable
