- RX10MSJ (RX-1 MOUNTAIN LIMITED EDITION) 8EV3 2004
TRACK SUSPENSION 1

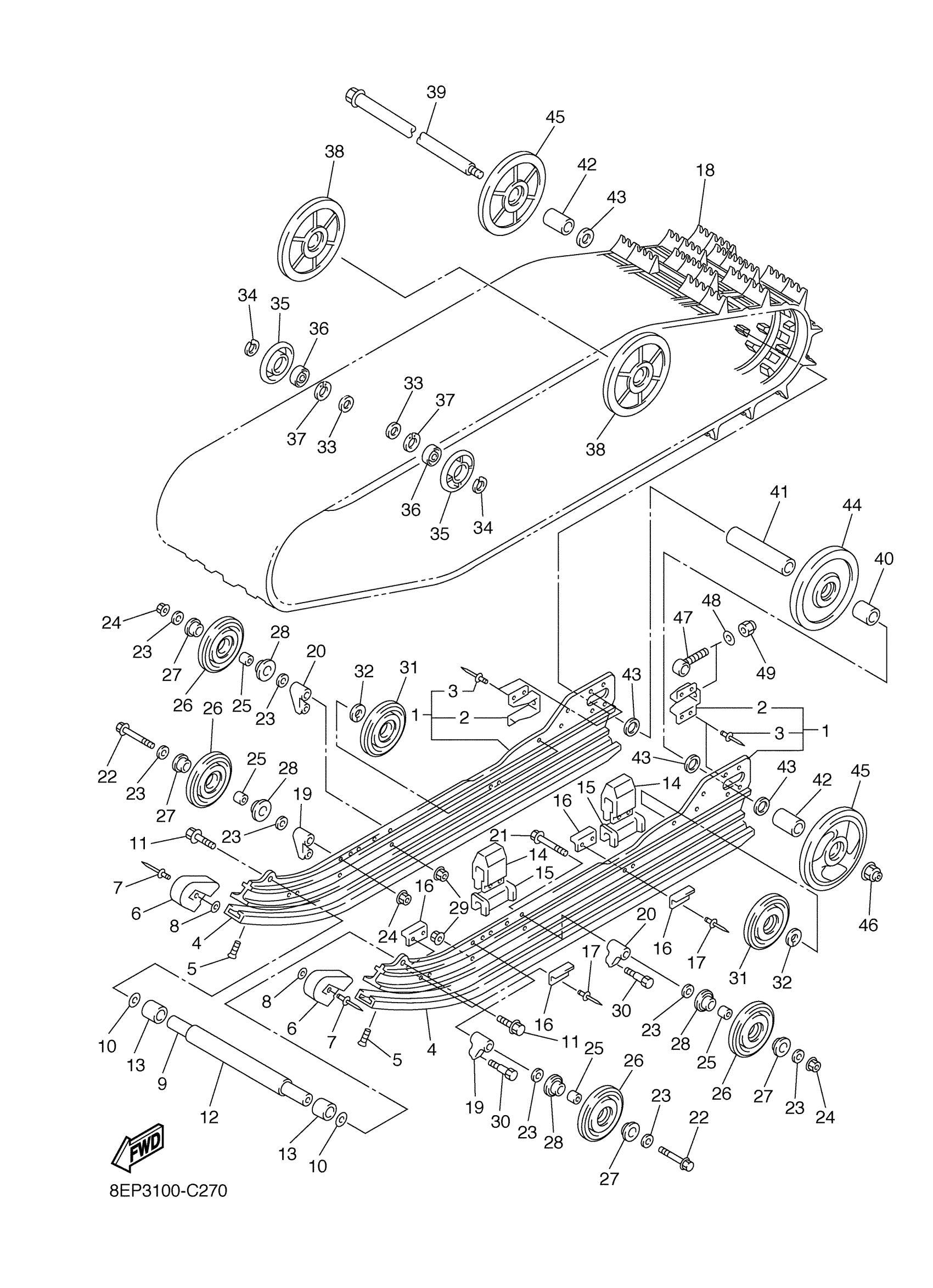

Yamaha RX10MSJ (RX-1 MOUNTAIN LIMITED EDITION) 8EV3 2004 TRACK SUSPENSION 1 Diagram
#
1
FRAME, SLIDING
8EP-W4741-00-00
Unavailable
2
BRACKET
8DM-4741B-00-00
$45.99
3
RIVET
8V0-47468-00-00
$10.49
4
RUNNER, SLIDING 1
8EP-47421-00-00
Unavailable
5
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
6
RUNNER, SLIDING 2
8ED-47422-00-00
$46.99
7
RIVET BLIND
90267-48194-00
$3.28
8
WASHER, PLATE(8CM)
90201-047R8-00
$3.02
9
SHAFT 3
82M-47485-02-00
Unavailable
10
WASHER, PLATE (26H)
90201-102G9-00
$9.49
11
BOLT, FLANGE
95817-10030-00
$8.49
12
COLLAR
90387-20002-00
$4.77
13
COLLAR
90387-20003-00
Unavailable
14
DAMPER 2
8CM-47457-00-00
$16.49
15
SPACER
8CM-47341-00-00
$16.49
16
PLATE, DAMPER
8AX-47458-00-00
Unavailable
17
RIVET, BLIND
90267-48199-00
Unavailable
18
TRACK ASSY
8EP-47110-00-00
Unavailable
19
BRACKET 7
8DF-47419-00-00
Unavailable
20
BRACKET 7
8DF-47419-10-00
Unavailable
21
BOLT, WASHER BASED(59V)
90105-10392-00
Unavailable
22
BOLT, FLANGE
95817-10085-00
Unavailable
23
WASHER, PLATE(8CM)
90201-100S0-00
Unavailable
24
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
25
COLLAR
90387-10079-00
Unavailable
26
BOGEY WHEEL W SPACERS & BEARIN
8CR-4731A-00-00
Unavailable
27
SPACER
8CR-47341-01-00
Unavailable
28
SPACER
8CR-47341-11-00
Unavailable
29
NUT, SELF-LOCKING
90185-08169-00
Unavailable
30
BOLT(8CM)
90101-08774-00
Unavailable
31
BOGEY WHEEL W SPACERS & BEARIN
8CR-4731A-00-00
Unavailable
32
CIRCLIP(JF7)
99009-25400-00
Unavailable
33
COLLAR(8AB)
90387-2004V-00
Unavailable
34
CIRCLIP(1AR)
99009-20400-00
Unavailable
35
SUSPENSION WHEEL COMP.
8H8-47320-00-00
Unavailable
36
BEARING(8AB)
93306-00444-00
Unavailable
37
CIRCLIP(5U8)
99009-42500-00
Unavailable
38
GUIDE WHEEL ASSY
8CR-47550-00-00
Unavailable
39
REAR AXLE COMP.
8L8-47520-10-00
Unavailable
40
COLLAR
90387-2012E-00
Unavailable
41
COLLAR
90387-2012C-00
Unavailable
42
COLLAR
90387-2012D-00
Unavailable
43
WASHER, PLATE(89W)
90201-205R6-00
Unavailable
44
GUIDE WHEEL ASSY
8CR-47550-10-00
Unavailable
45
WEIGHT
8EK-47550-11-00
Unavailable
45
WEIGHT
8EK-47550-11-00
Unavailable
45
GUIDE WHEEL ASSY
8EK-47550-20-00
Unavailable
46
NUT, SELF-LOCKING (8BF)
95607-14200-00
Unavailable
47
COLLAR 3
8DM-47479-00-00
Unavailable
48
WASHER(6TA)
92907-10600-00
Unavailable
49
NUT, NYLON
95707-10300-00
Unavailable
