- RX10MSJ (RX-1 MOUNTAIN LIMITED EDITION) 8EV3 2004
TRACK DRIVE 2

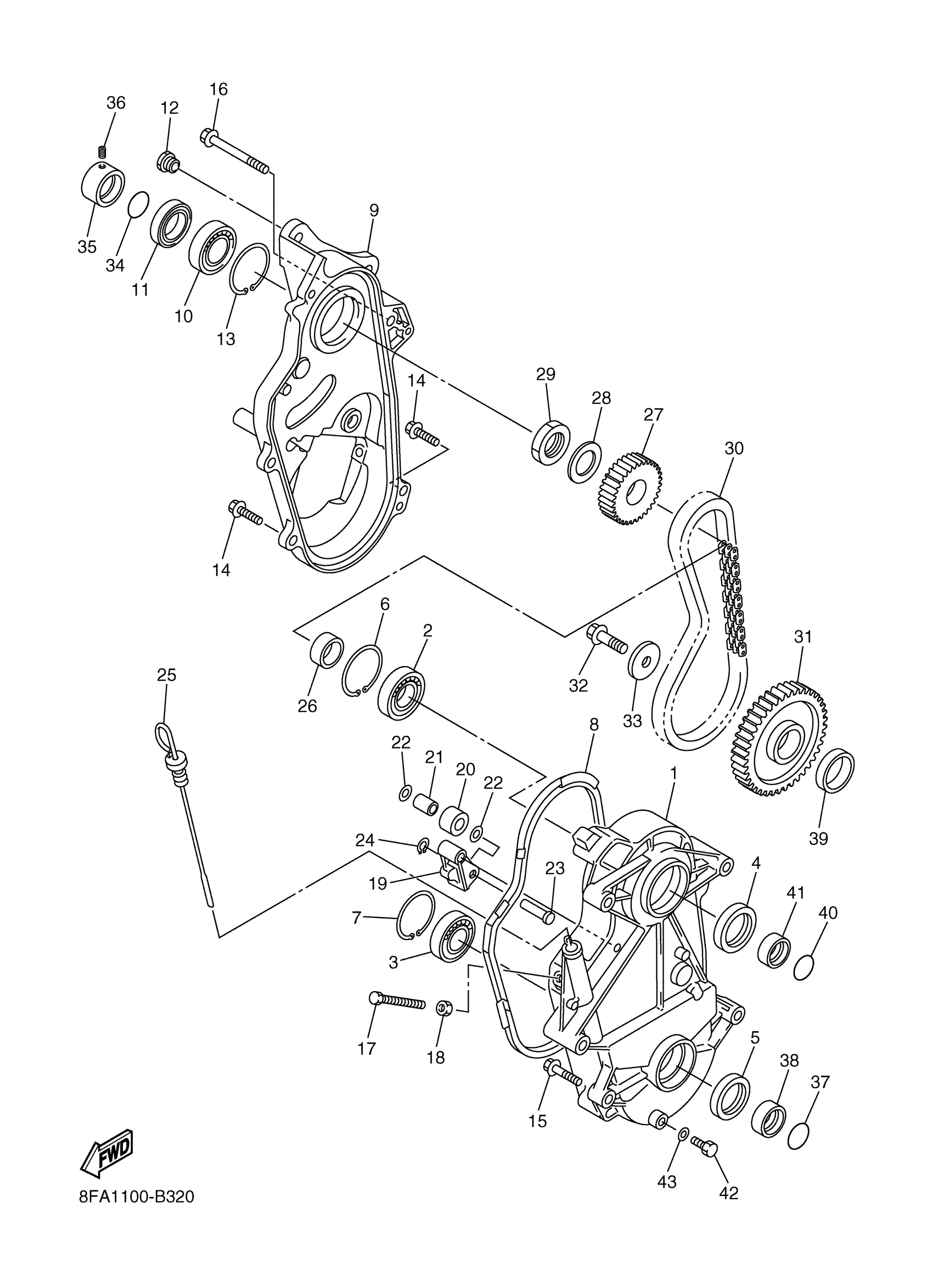

Yamaha RX10MSJ (RX-1 MOUNTAIN LIMITED EDITION) 8EV3 2004 TRACK DRIVE 2 Diagram
#
1
HOUSING, CHAIN
8FA-47541-00-00
Unavailable
2
BEARING (5X5)
93306-20627-00
$75.99
3
BEARING
93306-20592-00
$59.99
4
OIL SEAL
93102-40014-00
$15.99
5
OIL SEAL
93102-35010-00
$23.99
6
CIRCLIP(MF1)
99009-62500-00
$8.49
7
CIRCLIP(26H)
99009-52500-00
$12.49
8
RING, RUBBER HOUSING
8FA-47558-01-00
Unavailable
9
CAP, HOUSING
8FA-47543-00-00
Unavailable
10
BEARING
93306-20532-00
$66.99
11
OIL SEAL
93102-35010-00
$23.99
12
NUT(8CJ)
90179-10679-00
Unavailable
13
CIRCLIP(26H)
99009-52500-00
$12.49
14
BOLT, FLANGE(6TA)
95817-08030-00
$8.49
15
BOLT, FLANGE(4GB)
95817-10045-00
$6.99
16
BOLT,FLANGE
95817-10090-00
Unavailable
17
BOLT, HEXAGON (8F3)
90101-10357-00
Unavailable
18
NUT(6TD)
95337-10600-00
Unavailable
19
HOLDER
8FA-47613-00-00
Unavailable
20
WHEEL
8FA-47612-00-00
Unavailable
21
BEARING, CYLINDRICAL(1VJ)
93310-212R6-00
Unavailable
22
WASHER, PLATE (5N6)
90201-127E1-00
Unavailable
23
PIN
90249-12003-00
Unavailable
24
CIRCLIP(10Y)
99009-12400-00
Unavailable
25
LEVEL, OIL
8FA-47546-01-00
Unavailable
26
COLLAR
90387-30005-00
Unavailable
27
SPROCKET, CHAIN DRIVE
8FA-17682-10-00
Unavailable
28
WASHER, PLATE(89A)
90201-284P7-00
Unavailable
29
NUT
90170-28009-00
Unavailable
30
CHAIN
94890-09070-00
Unavailable
31
SPROCKET, CHAIN DRIVEN (40T)
8DW-47587-01-00
Unavailable
32
BOLT, FLANGE(3GD)
95817-10025-00
Unavailable
33
WASHER, PLATE (856)
90201-10321-00
Unavailable
34
O-RING
93210-22298-00
Unavailable
35
COLLAR
90387-25009-00
Unavailable
36
BOLT, SET
90113-06006-00
Unavailable
37
O-RING (169)
93210-25071-00
Unavailable
38
COLLAR(8CJ)
90387-2508C-00
Unavailable
39
COLLAR
90387-2508B-00
Unavailable
40
O-RING (498)
93210-29282-00
Unavailable
41
COLLAR
90387-30004-00
Unavailable
42
BOLT(8BC)
97007-08014-00
Unavailable
43
WASHER, SEAL(8AB)
90210-08017-00
Unavailable
