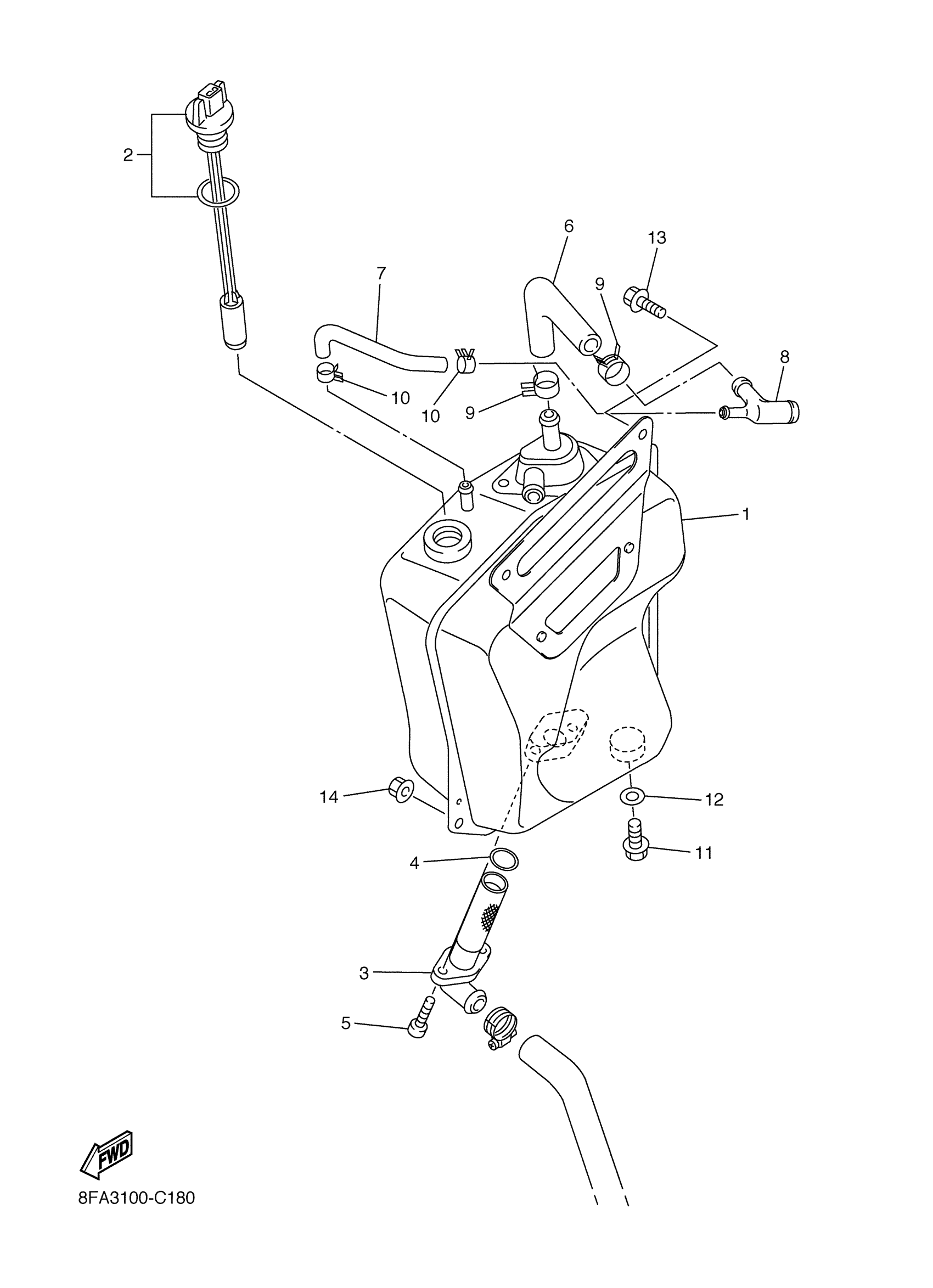

Yamaha RX10MSJ (RX-1 MOUNTAIN LIMITED EDITION) 8EV3 2004 OIL TANK Diagram

#

Description
Price

1

TANK, OIL

8FG-21751-02-00

$565.99

2

OIL LEVEL GAUGE ASSY

8FA-85720-01-00

$87.99

3

OIL PIPE COMP. 2

8FG-13406-00-00

Unavailable

4

O-RING (603)

93210-19026-00

$8.49

5

BOLT,SOCKET

91317-06016-00

$1.25

6

PIPE, OIL TANK BREATHER

8FA-21745-00-00

$11.99

7

PIPE, OIL TANK

8FA-2174N-01-00

Unavailable

8

CONNECTOR

8FG-13446-00-00

$70.99

9

CLIP

90468-08104-00

$3.93

10

CLIP (7K7)

90467-11044-00

$8.49

11

BOLT, FLANGE

95817-08012-00

$5.49

12

GASKET(3AJ)

90430-08204-00

$8.99

13

BOLT, FLANGE

95817-06016-00

$2.75

14

NUT, SELF-LOCKING

90185-08169-00

$8.49
