- RX10MSJ (RX-1 MOUNTAIN LIMITED EDITION) 8EV3 2004
OIL PUMP

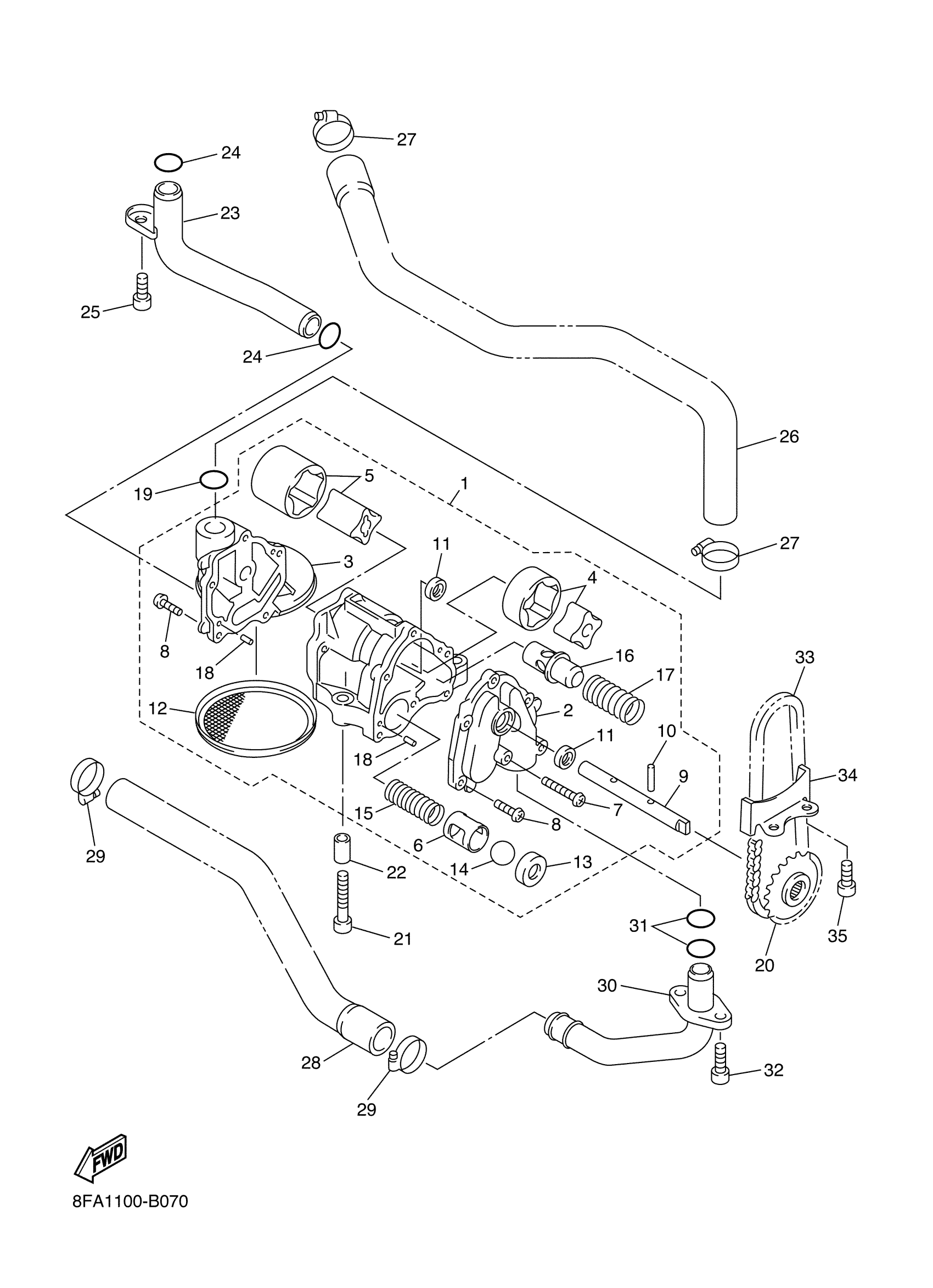

Yamaha RX10MSJ (RX-1 MOUNTAIN LIMITED EDITION) 8EV3 2004 OIL PUMP Diagram
#
1
OIL PUMP ASSY
8FA-13300-10-00
Unavailable
2
. COVER, PUMP
8FA-13316-00-00
Unavailable
3
. COVER, PUMP 2
8FA-13356-00-00
Unavailable
4
ROTOR ASSY 1
8FA-13310-00-00
$28.99
5
. ROTOR ASSY 2
8FA-13320-00-00
Unavailable
6
. PIPE
8FA-13284-00-00
Unavailable
7
SCREW, PAN HEAD
98517-05030-00
$10.49
8
SCREW, TAPPING
90167-05004-00
$0.37
9
. SHAFT, PUMP
8FA-13314-01-00
Unavailable
10
PIN,DOWEL
93603-17070-00
$4.14
11
OIL SEAL (11X15X3-341)
93104-11038-00
$8.49
12
STRAINER, OIL
8FA-13411-00-00
$11.99
13
. SEAT, CHECK BALL
5PX-13113-00-00
Unavailable
14
BALL (5/8INCH) (527 CKD)
93505-08030-00
$8.49
15
. SPRING, COMPRESSION
90501-105L2-00
Unavailable
16
. PLUNGER, RELIEF
2H7-13483-00-00
Unavailable
17
. SPRING, COMPRESSION
90501-18499-00
Unavailable
18
PIN, DOWEL
93603-07073-00
Unavailable
19
O-RING (1L9)
93210-18322-00
Unavailable
20
SPROCKET, DRIVEN
8FA-13355-00-00
Unavailable
21
BOLT,SOCKET
91317-06035-00
Unavailable
22
PIN, DOWEL
99530-08012-00
Unavailable
23
PIPE, OIL 1
8FA-13416-00-00
Unavailable
24
O-RING (26H)
93210-16629-00
Unavailable
25
BOLT,SOCKET
91317-06012-00
Unavailable
26
HOSE, OIL 1
8FA-13464-00-00
Unavailable
27
CLIP(34X)
90467-22097-00
Unavailable
28
HOSE, OIL 2
8FA-13465-00-00
Unavailable
29
HOSE CLAMP ASSY
90450-28001-00
Unavailable
30
CONNECTOR, SUCTION PIPE 2
8FA-1311A-00-00
Unavailable
31
O-RING (26H)
93210-16629-00
Unavailable
32
BOLT,SOCKET
91317-06014-00
Unavailable
33
CHAIN
94580-31058-00
Unavailable
34
HOLDER
8FA-13898-00-00
Unavailable
35
BOLT,SOCKET
91317-06012-00
Unavailable
