Description

Price

1

CYLINDER HEAD ASSY

8FA-11102-04-00

Unavailable

2

GUIDE, INTAKE VALVE

3TJ-11133-10-00

$67.99

3

GUIDE, INTAKE VALVE

1WG-11133-11-00

$77.99

4

CIRCLIP(1HX)

93440-07149-00

$8.49

5

CIRCLIP(1WG)

93440-10153-00

$2.39

6

PLUG, STRAIGHT SCREW

90340-27129-00

$5.60

7

PIN, DOWEL(3XW)

91808-16023-00

$8.49

8

. BOLT, FLANGE

90105-06026-00

Unavailable

9

CR9E NGK SPLUG 4PK

CR9-E0000-00-00

Unavailable

10

WASHER, PLATE

90201-10033-00

$8.49

11

NUT, CROWN(2GG)

90176-10075-00

$8.49

12

NUT

90179-10006-00

$9.49

13

NUT (26H)

90179-10414-00

$11.49

14

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

15

GASKET 256113960000

90430-06014-00

Unavailable

16

COVER, CYLINDER HEAD 1

8FA-11191-00-00

Unavailable

17

GASKET, HEAD COVER 1

8FA-11193-00-00

Unavailable

18

BOLT(4BP)

90109-066F0-00

Unavailable

19

RUBBER, MOUNT 1

5EA-1111G-00-00

Unavailable

20

GASKET, CYLINDER HEAD 1

8FA-11181-01-00

Unavailable

21

BOLT,SOCKET

91317-06060-00

Unavailable

22

PLUG, OIL

3Y1-15363-10-00

Unavailable

23

O-RING (646)

93210-19123-00

Unavailable

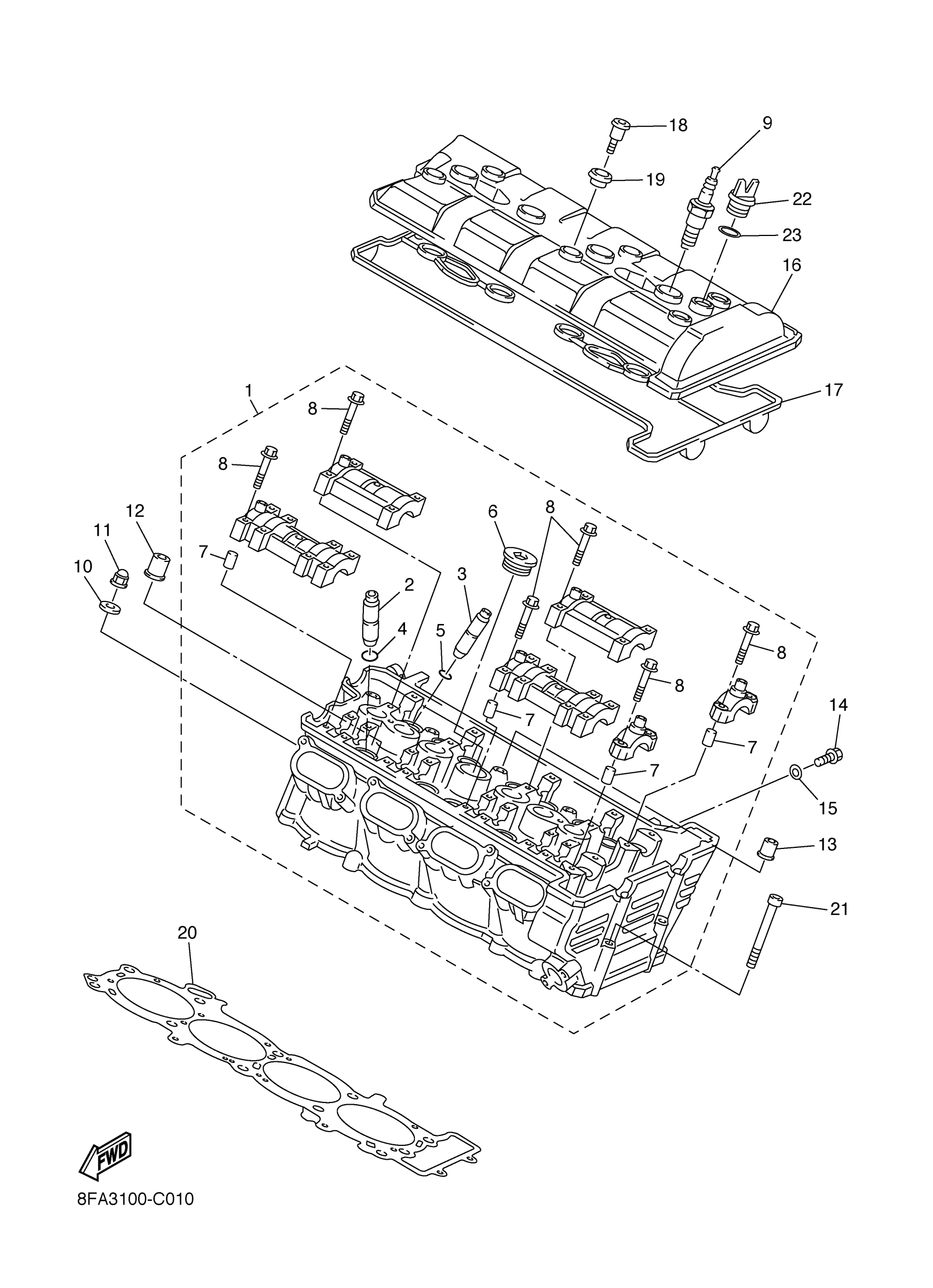

Yamaha RX10MSJ (RX-1 MOUNTAIN LIMITED EDITION) 8EV3 2004 CYLINDER Diagram

CYLINDER HEAD ASSY

GUIDE, INTAKE VALVE

GUIDE, INTAKE VALVE

CIRCLIP(1HX)

CIRCLIP(1WG)

PLUG, STRAIGHT SCREW

PIN, DOWEL(3XW)

. BOLT, FLANGE

CR9E NGK SPLUG 4PK

WASHER, PLATE

NUT, CROWN(2GG)

NUT

NUT (26H)

BOLT, FLANGE(4MY)

GASKET 256113960000

COVER, CYLINDER HEAD 1

GASKET, HEAD COVER 1

BOLT(4BP)

RUBBER, MOUNT 1

GASKET, CYLINDER HEAD 1

BOLT,SOCKET

PLUG, OIL

O-RING (646)
