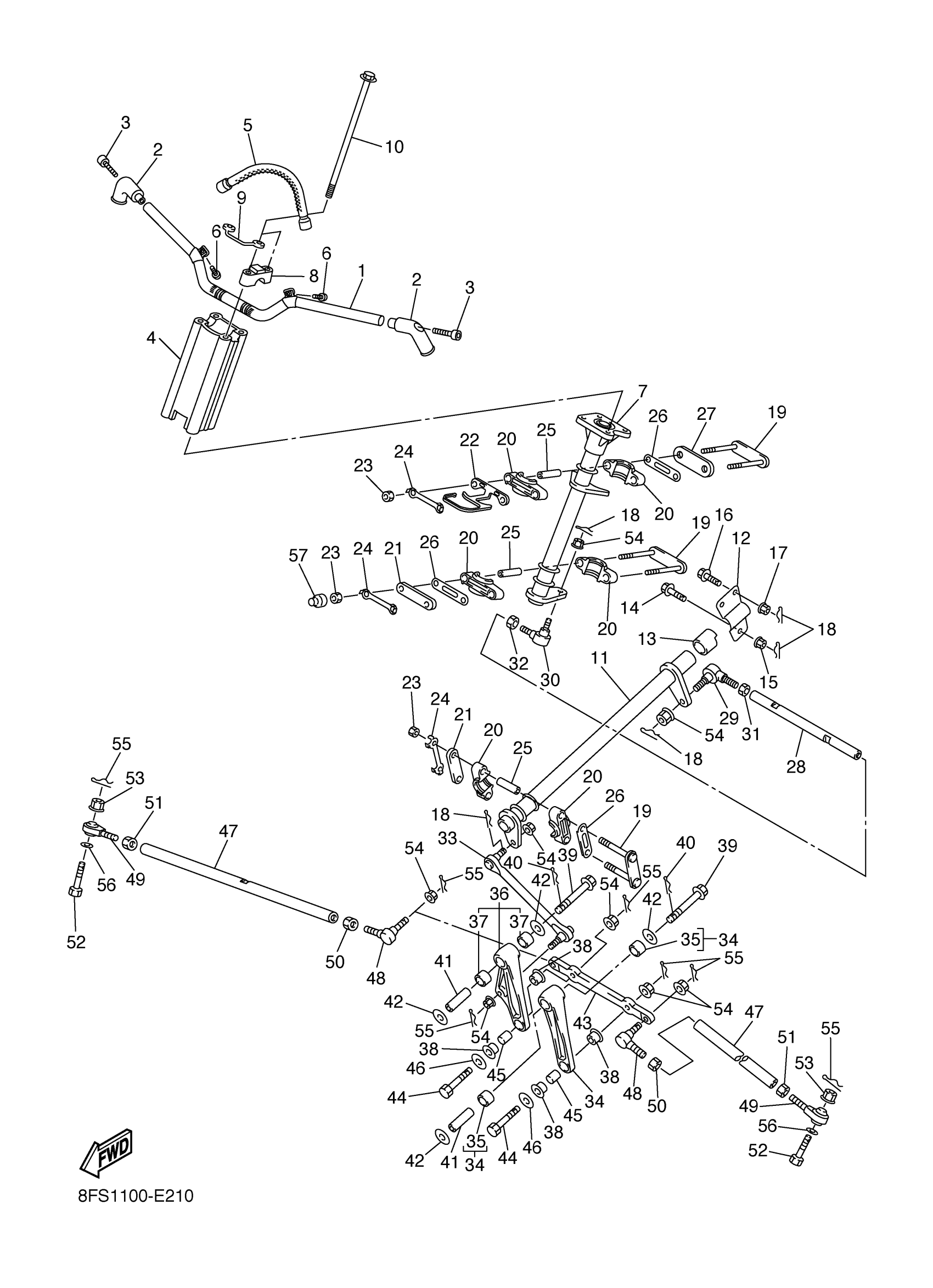

Yamaha RX10ML (APEX MOUNTAIN) 8FS1 2006 STEERING Diagram
#
1
HANDLEBAR
8FS-26111-01-00
Unavailable
2
END, GRIP
8FP-26246-00-00
Unavailable
3
BOLT
91318-06040-00
Unavailable
4
JOINT
8FS-2381B-00-00
Unavailable
5
STRAP, STRG
8FS-23829-00-00
Unavailable
6
BOLT, BUTTON HEAD
92014-06020-00
$9.49
7
COLUMN, STEERING 2
8FP-23813-00-00
Unavailable
8
HOLDER, HANDLE UPPER
3SP-23441-00-00
$27.99
9
HOLDER
8FP-23857-00-00
Unavailable
10
BOLT
8FS-23876-00-00
$10.49
11
COLUMN, STEERING
8FA-23811-00-00
Unavailable
12
COVER, STEERING
8FA-23818-02-00
$8.99
13
BEARING, STEERING UPPER
8FA-23873-01-00
$6.99
14
BOLT, WASHER BASED(4KD)
90105-10728-00
$30.99
15
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
16
BOLT, WASHER BASED(JA1)
90105-08552-00
Unavailable
17
NUT, SELF-LOCKING
90185-08169-00
Unavailable
18
CLIP 136253750000
90468-12006-00
Unavailable
19
HOLDER, BEARING
8FA-23872-00-00
Unavailable
20
PLANE BEARING, STEERING
8FA-23812-00-00
Unavailable
21
HOLDER 2
8FA-23867-00-00
Unavailable
22
HOLDER, BEARING
8FP-23872-00-00
Unavailable
23
NUT(6TA)
95337-08600-00
Unavailable
24
WASHER, LOCK 1
1UY-23894-01-00
Unavailable
25
COLLAR
90387-09006-00
Unavailable
26
WASHER, PLAIN
8FA-23843-00-00
Unavailable
27
WASHER, PLAIN
8FP-23843-00-00
Unavailable
28
ROD, STEERING
8FA-23828-00-00
Unavailable
29
JOINT, UNIVERSAL 3
8CR-23847-00-00
Unavailable
30
JOINT, UNIVERSAL 2
8CR-23845-10-00
Unavailable
31
NUT (3WP1)
95317-10700-00
Unavailable
32
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
33
ROD, STEERING RELAY
8FA-23821-00-00
Unavailable
34
ARM PIVOT ASSY
8FG-2389K-00-00
Unavailable
35
BUSH, FORMED
90383-17001-00
Unavailable
36
ARM PIVOT ASSY. , 2
8FA-2389M-00-00
Unavailable
37
BEARING
93317-41785-00
Unavailable
38
BUSH, SOLID
90381-14001-00
Unavailable
39
BOLT, FLANGE
90105-12017-00
Unavailable
40
CLIP, RING
8FA-2384N-00-00
Unavailable
41
COLLAR
8FA-2412G-00-00
Unavailable
42
WASHER, PLATE
90201-121U3-00
Unavailable
43
ARM, IDLER
8FU-23826-00-00
Unavailable
44
BOLT, PIN HOLE (8M6)
90102-10044-00
Unavailable
45
COLLAR
90387-10070-00
Unavailable
46
WASHER PLATE (3L6)
90201-10742-00
Unavailable
47
ROD, TIE
8FW-23831-00-00
Unavailable
48
JOINT, UNIVERSAL 2
8CR-23845-10-00
Unavailable
49
JOINT, UNIVERSAL 3
8FA-23847-00-00
Unavailable
50
NUT (3WP1)
95317-10700-00
Unavailable
51
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
52
BOLT, PIN HOLE (8M6)
90102-10044-00
Unavailable
53
NUT, NYLON
95707-10300-00
Unavailable
54
NUT, FLANGE(8AB)
95707-10500-00
Unavailable
55
PIN, COTTER
91490-20025-00
Unavailable
56
WASHER PLATE (3L6)
90201-08759-00
Unavailable
57
CAP 2
35R-25335-00-00
Unavailable
