- RX10MH (RX-1 MOUNTAIN) 8EP1 2003
TRACK SUSPENSION 1

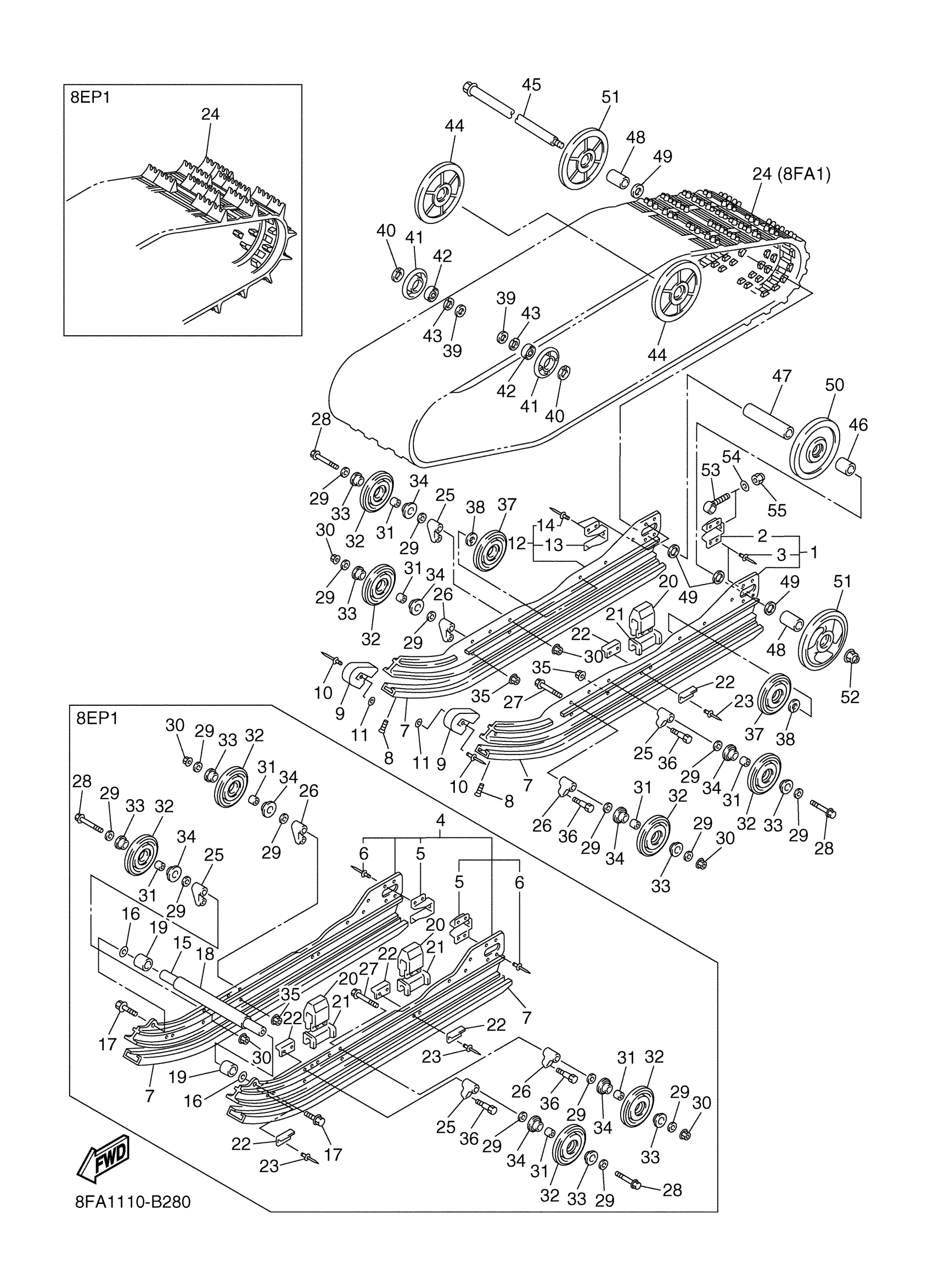

Yamaha RX10MH (RX-1 MOUNTAIN) 8EP1 2003 TRACK SUSPENSION 1 Diagram
#
1
FRAME, SLIDING 1
8FA-47411-00-00
Unavailable
2
BRACKET
8DM-4741B-00-00
$45.99
3
RIVET
8V0-47468-00-00
$10.49
4
FRAME, SLIDING
8EP-W4741-00-00
Unavailable
5
BRACKET
8DM-4741B-00-00
$45.99
6
RIVET
8V0-47468-00-00
$10.49
7
136 BLACK HYFAX
SMA-8CW92-70-BK
Unavailable
7
RUNNER, SLIDING 1
8EP-47421-00-00
Unavailable
8
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
9
RUNNER, SLIDING 2
8ED-47422-00-00
$46.99
10
RIVET BLIND
90267-48194-00
$3.28
11
WASHER, PLATE(8CM)
90201-047R8-00
$3.02
12
FRAME, SLIDING 2
8FA-47412-00-00
$356.99
13
BRACKET
8DM-4741B-00-00
$45.99
14
RIVET
8V0-47468-00-00
$10.49
15
SHAFT 3
82M-47485-02-00
Unavailable
16
WASHER, PLATE (26H)
90201-102G9-00
Unavailable
17
BOLT, FLANGE
95817-10030-00
Unavailable
18
COLLAR
90387-20002-00
Unavailable
19
COLLAR
90387-20003-00
Unavailable
20
DAMPER 2
8CM-47457-00-00
Unavailable
20
DAMPER 2
8CM-47457-00-00
Unavailable
21
SPACER
8CM-47341-00-00
Unavailable
21
SPACER
8CM-47341-00-00
Unavailable
22
PLATE, DAMPER
8AX-47458-00-00
Unavailable
22
PLATE, DAMPER
8AX-47458-00-00
Unavailable
23
RIVET, BLIND
90267-48199-00
Unavailable
23
RIVET, BLIND
90267-48199-00
Unavailable
24
1'' HACKSAW TRACK
SMA-TRACK-90-09
Unavailable
24
TRACK ASSY
8EP-47110-00-00
Unavailable
25
BRACKET 7
8DF-47419-00-00
Unavailable
26
BRACKET 7
8DF-47419-10-00
Unavailable
27
BOLT, WASHER BASED(59V)
90105-10392-00
Unavailable
28
BOLT, FLANGE
95817-10085-00
Unavailable
29
WASHER, PLATE(8CM)
90201-100S0-00
Unavailable
30
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
31
COLLAR
90387-10079-00
Unavailable
32
BOGEY WHEEL W SPACERS & BEARIN
8CR-4731A-00-00
Unavailable
33
SPACER
8CR-47341-01-00
Unavailable
34
SPACER
8CR-47341-11-00
Unavailable
35
NUT, SELF-LOCKING
90185-08169-00
Unavailable
36
BOLT(8CM)
90101-08774-00
Unavailable
37
BOGEY WHEEL W SPACERS & BEARIN
8CR-4731A-00-00
Unavailable
38
CIRCLIP(JF7)
99009-25400-00
Unavailable
39
COLLAR(8AB)
90387-2004V-00
Unavailable
40
CIRCLIP(1AR)
99009-20400-00
Unavailable
41
SUSPENSION WHEEL COMP.
8H8-47320-00-00
Unavailable
42
BEARING(8AB)
93306-00444-00
Unavailable
43
CIRCLIP(5U8)
99009-42500-00
Unavailable
44
GUIDE WHEEL ASSY
8CR-47550-00-00
Unavailable
45
REAR AXLE COMP.
8L8-47520-10-00
Unavailable
46
COLLAR
90387-2012E-00
Unavailable
47
COLLAR
90387-2012C-00
Unavailable
48
COLLAR
90387-2012D-00
Unavailable
49
WASHER, PLATE(89W)
90201-205R6-00
Unavailable
50
GUIDE WHEEL ASSY
8CR-47550-10-00
Unavailable
51
WEIGHT
8EK-47550-11-00
Unavailable
52
NUT, SELF-LOCKING (8BF)
95607-14200-00
Unavailable
53
COLLAR 3
8DM-47479-00-00
Unavailable
54
WASHER(6TA)
92907-10600-00
Unavailable
55
NUT, NYLON
95707-10300-00
Unavailable
