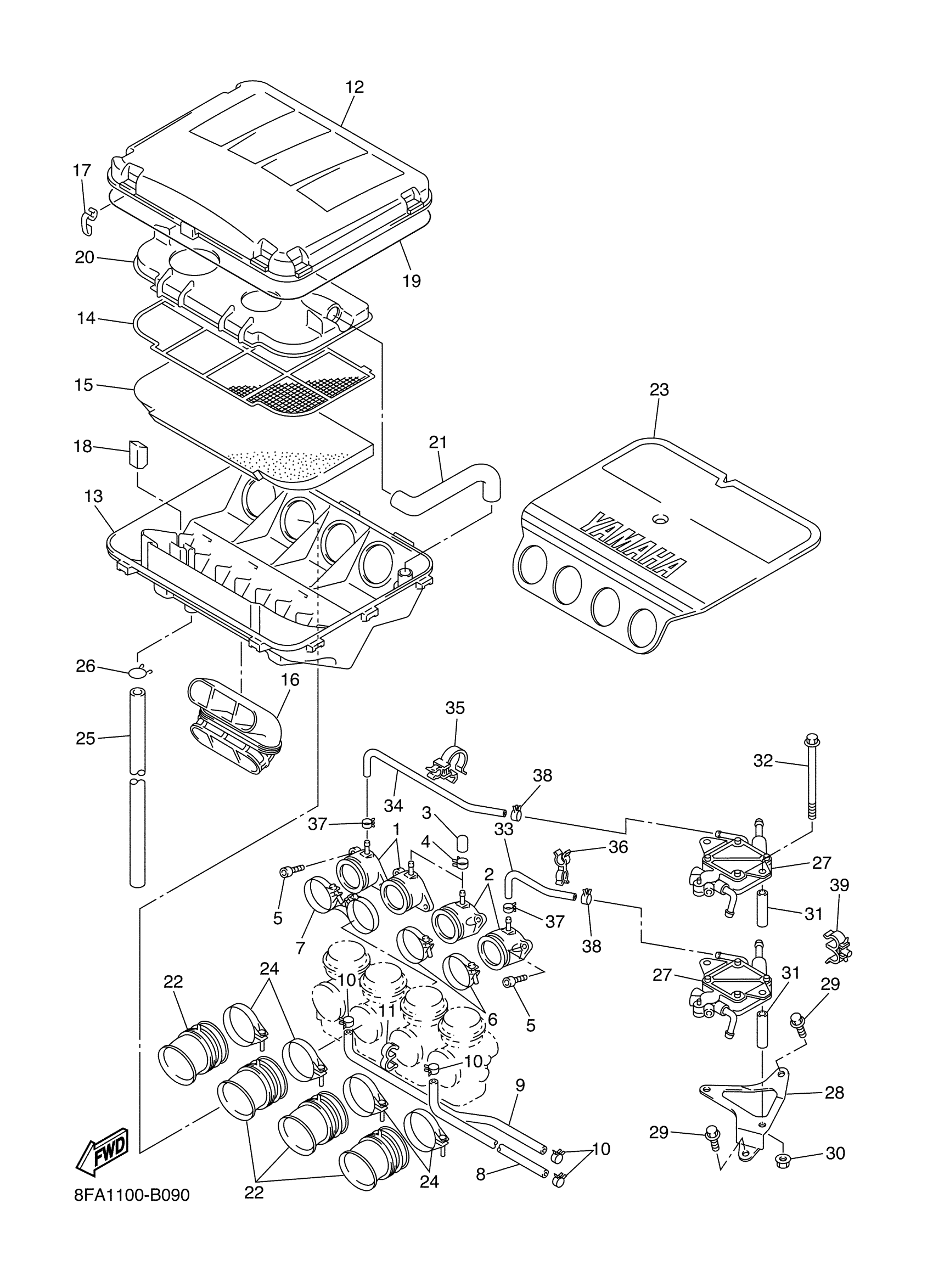

Yamaha RX10MH (RX-1 MOUNTAIN) 8EP1 2003 INTAKE Diagram
#
1
JOINT, CARBURETOR 1
8FA-13586-00-00
Unavailable
2
JOINT, CARBURETOR 2
8FA-13596-00-00
Unavailable
3
PLUG, BLIND
16G-13569-00-00
$7.99
4
CLIP (3G0)
90467-10039-00
$9.49
5
BOLT,SOCKET
91317-06020-00
Unavailable
6
BAND
5EL-13474-00-00
$10.99
7
BAND
8FA-13474-00-00
Unavailable
8
HOSE
8FA-14294-00-00
$17.49
9
PIPE
8FA-14298-00-00
$14.49
10
CLIP
90467-11028-00
Unavailable
11
CLAMP(6M7)
90464-09M31-00
$8.49
12
SILENCER, INTAKE 1
8FA-14431-00-00
Unavailable
13
SILENCER, INTAKE 2
8FA-14441-00-00
Unavailable
14
PLATE, ELEMENT
8FA-14472-00-00
Unavailable
15
ELEMENT, AIR CLEANER
8FA-14451-01-00
$39.99
16
DUCT
8FA-14437-00-00
Unavailable
17
HOOK
8FA-14436-00-00
Unavailable
18
DAMPER 1
8FA-14425-00-00
Unavailable
19
SEAL
8FA-14452-00-00
Unavailable
20
COVER 1
8FA-14417-00-00
Unavailable
21
PIPE
8FA-14419-00-00
Unavailable
22
WEIGHT
8FA-14453-01-00
Unavailable
23
COVER, CARBURETOR 1
8FA-14283-00-00
Unavailable
24
HOSE CLAMP ASSY
90450-63002-00
Unavailable
25
PIPE, DRAIN
8FA-1443E-00-00
Unavailable
26
CLIP
90467-100A1-00
Unavailable
27
FUEL PUMP ASSY
8FA-13910-00-00
Unavailable
28
BRACKET, FUEL PUMP
8FA-24491-00-00
Unavailable
29
BOLT, FLANGE
95817-06016-00
Unavailable
30
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
31
COLLAR (878)
90387-08262-00
Unavailable
32
BOLT, FLANGE(4NM)
95027-06085-00
Unavailable
33
HOSE, AIR
8FA-13895-00-00
Unavailable
34
HOSE, AIR 2
8FA-13892-00-00
Unavailable
35
CLAMP
90464-26245-00
Unavailable
36
CLAMP(4FU)
90464-12182-00
Unavailable
37
CLIP(41W)
90467-08092-00
Unavailable
38
CLIP (8A1)
90467-09026-00
Unavailable
39
CLAMP
90464-11007-00
Unavailable
