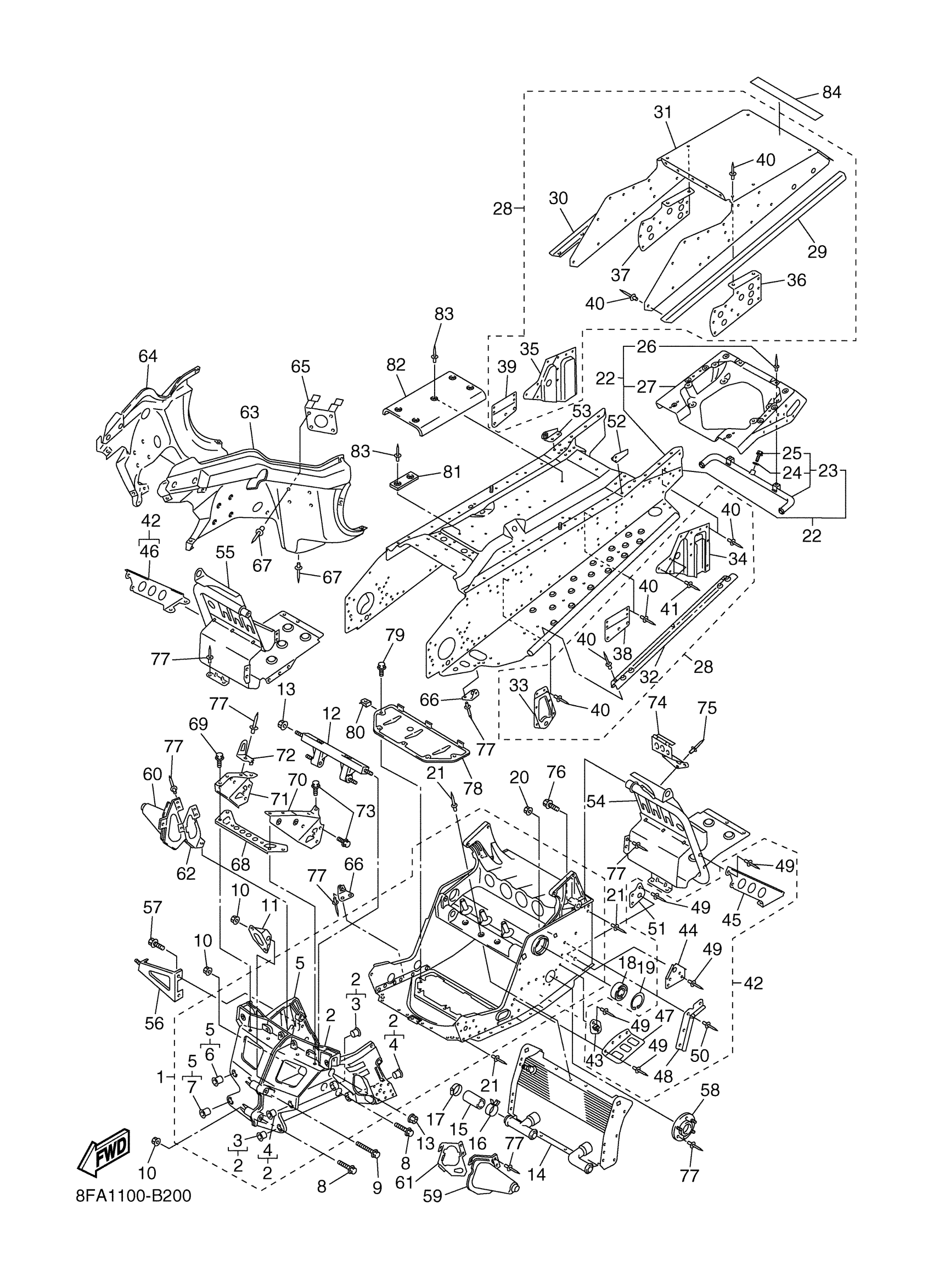

Yamaha RX10MH (RX-1 MOUNTAIN) 8EP1 2003 FRAME 2 Diagram
#
1
FRONT FRAME COMP.
8EP-21940-01-00
Unavailable
2
BULKHEAD
8FA-W2197-13-00
$721.99
3
BUSH, SOLID
90381-15001-00
$5.60
4
BUSH, SOLID
90381-16004-00
$16.99
5
BULKHEAD 2
99999-03545-00
$373.99
6
BUSH, SOLID
90381-15001-00
$5.60
7
BUSH, SOLID
90381-16004-00
$16.99
8
BOLT, FLANGE
95817-08060-00
$3.76
9
BOLT, WASHER BASED
90105-084A1-00
$10.49
10
NUT, SELF-LOCKING
90185-08169-00
$8.49
11
BRACKET, REGULATOR
8FA-2128A-01-00
Unavailable
12
BRACKET, STEERING 1
8FG-21947-00-00
$180.99
13
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
14
HEAT EXCHANGER ASSY
8EP-12440-00-00
Unavailable
15
HOSE 7
8FA-12551-00-00
$8.99
16
CLIP (8M6)
90467-28046-00
Unavailable
17
HOSE CLAMP ASSY
90450-35001-00
Unavailable
18
BEARING
93306-20650-00
Unavailable
19
CIRCLIP(MF1)
99009-62500-00
Unavailable
20
NUT, SELF-LOCKING
90185-08169-00
$8.49
21
RIVET, BLIND
90267-47195-00
Unavailable
22
REAR FRAME COMP.
8FA-21950-09-00
Unavailable
23
HEAT EXCHANGER ASSY 4
8FA-1241A-00-00
Unavailable
24
WASHER, SEAL (7G5)
90210-06006-00
Unavailable
25
BOLT, FLANGE
95817-06016-00
Unavailable
26
RIVET, BLIND
90267-47195-00
Unavailable
27
REINEFORCEMENT, FRAME REAR 1
8FA-W2199-10-00
Unavailable
28
PANEL, SUB-FRAME KIT
8EP-W2196-00-00
Unavailable
29
.. MEMBER, SIDE 1
8EP-2111J-00-00
Unavailable
30
.. MEMBER, SIDE 2
8EP-2111K-00-00
Unavailable
31
PANEL, SUB FRAME 5
8EP-21916-01-00
Unavailable
32
. PLATE, ANTI-SKID
8EP-2192A-00-00
Unavailable
33
BRACKET, MAIN TRACK SUPPORT 1
8EP-21943-00-00
Unavailable
34
BRACKET, RR.TRACK SUSPENTION 1
8EP-21944-01-00
Unavailable
35
BRACKET, RR.TRACK SUSPENTION 2
8EP-21954-01-00
Unavailable
36
PATCH 3
8EP-21963-00-00
Unavailable
37
PATCH 4
8EP-21964-00-00
Unavailable
38
PATCH 5
8EP-21965-00-00
Unavailable
39
PATCH 6
8EP-21966-00-00
Unavailable
40
RIVET, BLIND
90267-47195-00
Unavailable
41
RIVET, BLIND
90267-47197-00
Unavailable
42
FRAME CONNECTION KIT
8FA-W2195-00-00
Unavailable
43
BRACKET, CHAIN HOUSING
8CR-21939-01-00
Unavailable
44
BRACKET, MAIN TRACK 1
8CR-21943-01-00
Unavailable
45
BRACKET, 5
8FA-2196M-00-00
Unavailable
46
BRACKET, 6
8FA-2197M-00-00
Unavailable
47
. COVER 2
8FA-2198G-00-00
Unavailable
48
CLAMP, WIREHARNESS
8FA-21999-00-00
Unavailable
49
RIVET, BLIND
90267-47195-00
Unavailable
50
RIVET, BLIND
90267-48018-00
Unavailable
51
BRACKET, MAIN TRACK 2
8FA-21953-00-00
Unavailable
52
BRACKET 1
8FA-2194X-00-00
Unavailable
53
BRACKET 2
8FA-2195X-00-00
Unavailable
54
FOOTREST COMP. 1
8FG-21960-00-00
Unavailable
55
FOOTREST COMP. 2
8FG-21970-00-00
Unavailable
56
BRACKET, OIL TANK 1
8FA-2193E-00-00
Unavailable
57
BOLT, FLANGE
95817-08014-00
Unavailable
58
HOUSING, REINF SUB-ASSY(L.H)
8EK-21920-01-00
Unavailable
59
COVER 1
8FA-2198F-00-00
Unavailable
60
COVER 3
8FA-2198J-00-00
Unavailable
61
PLATE, STRG BRACKET 1
8FA-2195E-00-00
Unavailable
62
PLATE, STRG BRACKET 2
8FA-2195F-00-00
Unavailable
63
FRAME UNDER 1
8EP-2196A-00-00
Unavailable
64
FRAME, UNDER 2
8EP-2196E-01-00
Unavailable
65
BRACKET, GUARD FITTING
8FA-21972-01-00
Unavailable
66
BRACKET 3
8FA-2196F-00-00
Unavailable
67
RIVET, BLIND
90267-48018-00
Unavailable
68
BUMPER, FRONT 2
8FA-77512-00-00
Unavailable
69
BOLT, FLANGE
95817-06012-00
Unavailable
70
BRACKET, FRONT
8FA-21949-00-00
Unavailable
71
BRACKET, FRONT BUMPER
8FA-21959-00-00
Unavailable
72
STAY 1
8FA-77125-00-00
Unavailable
73
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
74
HOOK
8FA-21973-00-00
Unavailable
75
RIVET, BLIND
90267-47195-00
Unavailable
76
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
77
RIVET, BLIND
90267-47195-00
Unavailable
78
PROTECTOR, FRAME
8FA-2197E-01-00
Unavailable
79
BOLT(3XP)
90109-065F3-00
Unavailable
80
NUT, SPRING(4ES)
90183-06069-00
Unavailable
81
SPACER
8FA-21998-00-00
Unavailable
82
SHIELD, HEAT
8FG-23892-00-00
Unavailable
83
RIVET, BLIND (8L0)
90267-48059-00
Unavailable
84
LABEL, WARNING 2
88X-77762-10-00
Unavailable
