- RX10LTZW (APEX LTX_GT) 8FT9 2010
TRACK SUSPENSION 1

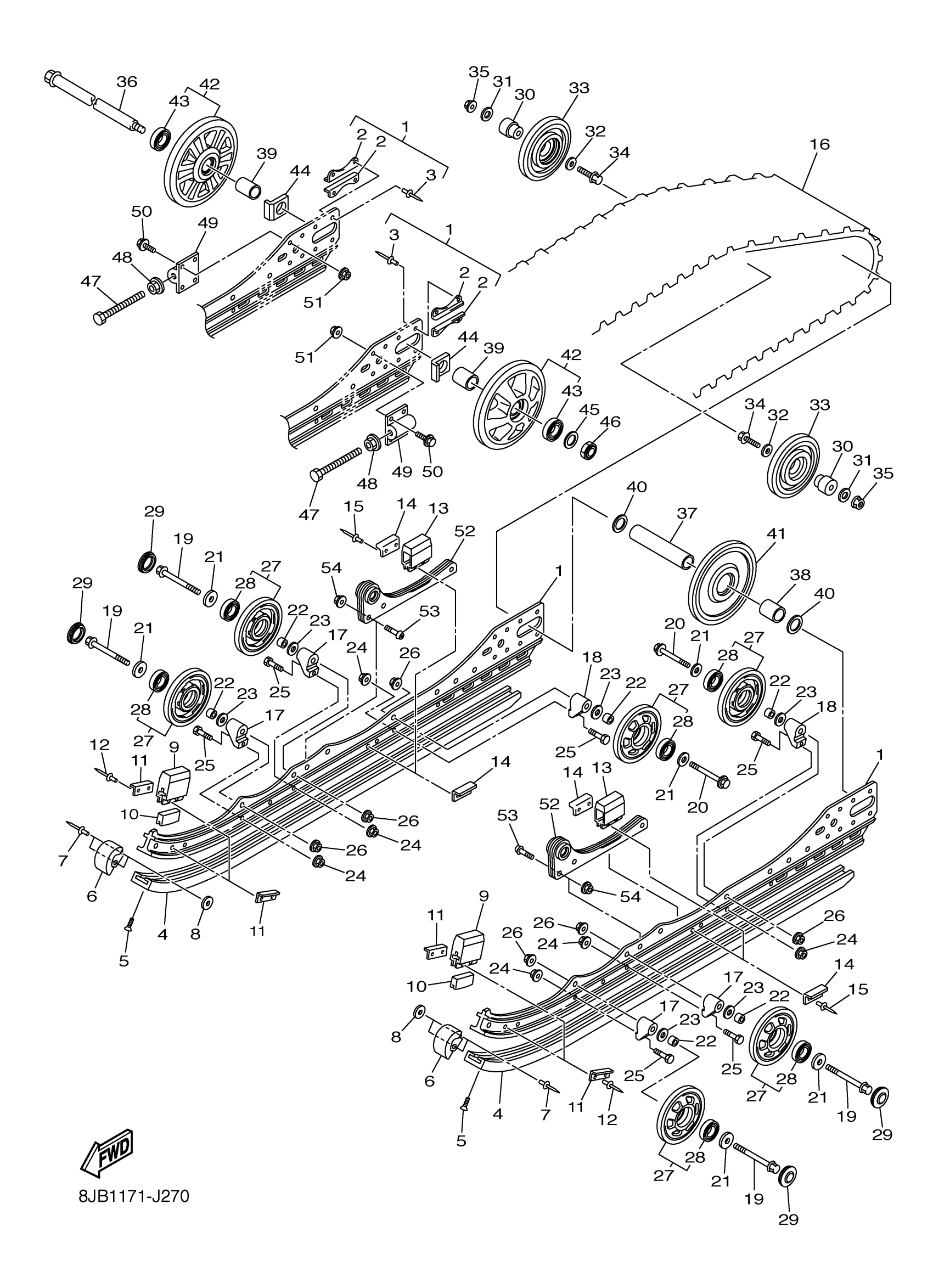

Yamaha RX10LTZW (APEX LTX_GT) 8FT9 2010 TRACK SUSPENSION 1 Diagram
#
1
FRAME, SLIDING
8JB-W4741-00-00
$446.99
2
BRACKET
8JA-4741B-00-00
Unavailable
3
RIVET
8V0-47468-00-00
$10.49
4
SLIDE RUNNER BLK 136''
SMA-8FT92-00-BK
Unavailable
5
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
6
RUNNER, SLIDING 2
8GL-47422-00-00
$30.99
7
RIVET BLIND
90267-48194-00
$3.28
8
WASHER, PLATE(8CM)
90201-047R8-00
$3.02
9
DAMPER 1
8JB-47456-00-00
Unavailable
10
SPACER
8FR-47341-00-00
$13.99
11
PLATE, DAMPER
8AX-47458-00-00
$10.99
12
RIVET, BLIND
90267-48199-00
$3.76
13
DAMPER 2
8JA-47457-00-00
$17.99
14
PLATE, DAMPER
8AX-47458-00-00
$10.99
15
RIVET, BLIND
90267-48199-00
$3.76
16
TRACK ASSY
8FG-47110-20-00
Unavailable
17
BRACKET 7
8CM-47419-10-00
Unavailable
18
BRACKET 7
8CM-47419-30-00
Unavailable
19
BOLT, FLANGE
90105-10241-00
Unavailable
20
BOLT, FLANGE
90105-10150-00
Unavailable
21
WASHER, PLATE
90201-10038-00
Unavailable
22
COLLAR
90387-10031-00
Unavailable
23
WASHER, PLATE(8CM)
90201-100S0-00
Unavailable
24
NUT, SELF-LOCKING
95602-08200-00
Unavailable
25
BOLT(8CM)
90101-08774-00
Unavailable
26
NUT, S/L FLANGE
95602-10200-00
Unavailable
27
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
28
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
29
CAP, WHEEL
8HF-47317-00-00
Unavailable
30
BRACKET 7
8JB-47419-00-00
Unavailable
31
WASHER, PLATE
90201-10039-00
Unavailable
32
WASHER, PLATE
90201-10038-00
Unavailable
33
BOGEY WHEEL W SPACERS & BEARIN
8CR-4731A-00-00
Unavailable
34
BOLT, FLANGE
90105-10210-00
Unavailable
35
NUT, S/L FLANGE
95602-10200-00
Unavailable
36
AXLE, REAR
8JA-47521-00-00
Unavailable
37
COLLAR
90387-25029-00
Unavailable
38
COLLAR
90387-25028-00
Unavailable
39
COLLAR
90387-25027-00
Unavailable
40
WASHER, PLATE
90201-25025-00
Unavailable
41
GUIDE WHEEL ASSY
8CR-47550-30-00
Unavailable
42
AXLE WHEEL,25MM 6005 BRG BK
SMA-8HF38-02-BK
Unavailable
43
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
44
WASHER 2
8JA-47375-00-00
Unavailable
45
WASHER, PLATE
90201-22018-00
Unavailable
46
NUT, SELF-LOCKING
90185-22009-00
Unavailable
47
BOLT
90101-12041-00
Unavailable
48
95702-12500
95702-12500-00
Unavailable
49
BRACKET 5
8JA-47463-00-00
Unavailable
50
BOLT, FLANGE
90105-08183-00
Unavailable
51
NUT, SELF-LOCKING
95602-08200-00
Unavailable
52
BRACKET 1
8JA-47415-00-00
Unavailable
53
BOLT,HEX. SOCKET BUTTON
90111-10046-00
Unavailable
54
NUT, S/L FLANGE
95602-10200-00
Unavailable
