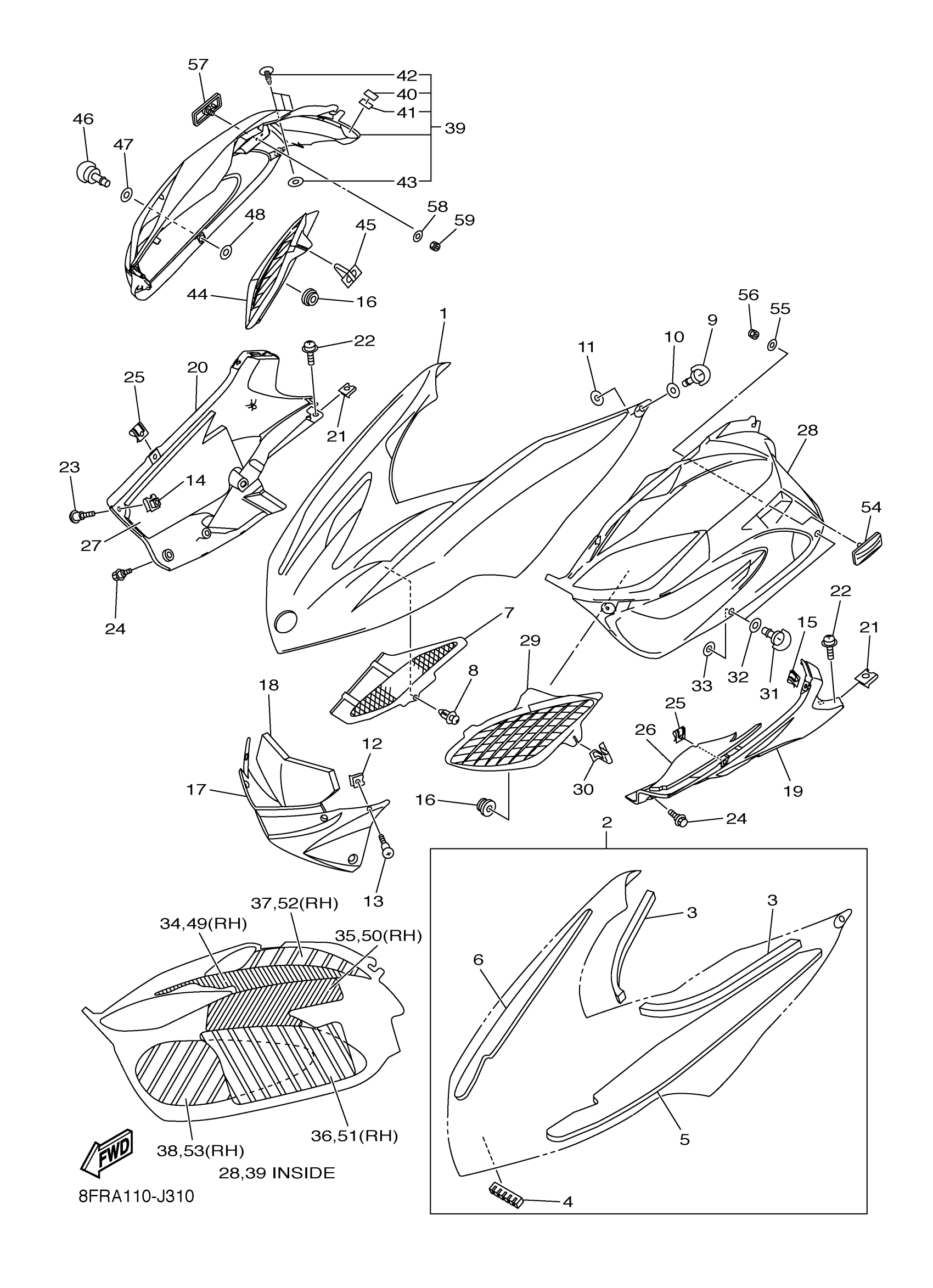

Yamaha RX10LTZW (APEX LTX_GT) 8FT9 2010 SHROUD Diagram
#
7
LOUVER 3
8FP-77133-00-00
Unavailable
12
NUT, SPRING(4ES)
90183-06069-00
Unavailable
16
GROMMET
90480-13019-00
Unavailable
17
PANEL, SUB FRAME 1
8FA-21912-00-00
Unavailable
18
DAMPER 1
8FP-77198-00-00
Unavailable
19
HOOD 1
8FP-21982-00-00
Unavailable
20
HOOD 2
8FP-21983-00-00
Unavailable
21
NUT, SPRING(4ES)
90183-06069-00
Unavailable
22
SCREW, WITH WASHER
90159-06011-00
Unavailable
24
BOLT
90109-06220-00
Unavailable
26
DAMPER, NOISE 18
8FP-77278-00-00
Unavailable
27
DAMPER, NOISE 19
8FP-77279-00-00
Unavailable
28
HOOD 3
8FP-2197H-00-00
Unavailable
29
LOUVER 5
8FP-77109-00-00
Unavailable
30
CLIP
90468-06001-00
Unavailable
34
DAMPER, NOISE 12
8FP-77272-00-00
Unavailable
35
DAMPER, NOISE 13
8FP-77273-00-00
Unavailable
36
DAMPER, NOISE 14
8FP-77274-00-00
Unavailable
37
DAMPER, SHROUD
8FP-77196-00-00
Unavailable
38
DAMPER
8FP-78316-00-00
Unavailable
39
HOOD ASSY 4
8FR-2198A-03-00
Unavailable
40
TAPE 2
8FR-7717F-00-00
Unavailable
41
PAD 1
8FR-77151-00-00
Unavailable
42
. RIVET
90269-07064-00
Unavailable
43
WASHER, PLATE
90202-07002-00
Unavailable
44
LOUVER 6
8FP-77108-00-00
Unavailable
45
CLIP
90468-06001-00
Unavailable
49
DAMPER, NOISE 15
8FP-77275-00-00
Unavailable
50
DAMPER, NOISE 16
8FP-77276-01-00
Unavailable
51
DAMPER, NOISE 17
8FP-77277-01-00
Unavailable
52
DAMPER, SHROUD
8FP-77196-10-00
Unavailable
53
DAMPER
8FP-78316-10-00
Unavailable
54
PLATE 1
8FR-77185-00-00
Unavailable
55
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
56
NUT, NYLON
95707-05300-00
Unavailable
57
PLATE 1
8FR-77185-00-00
Unavailable
58
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
59
NUT, NYLON
95707-05300-00
Unavailable
