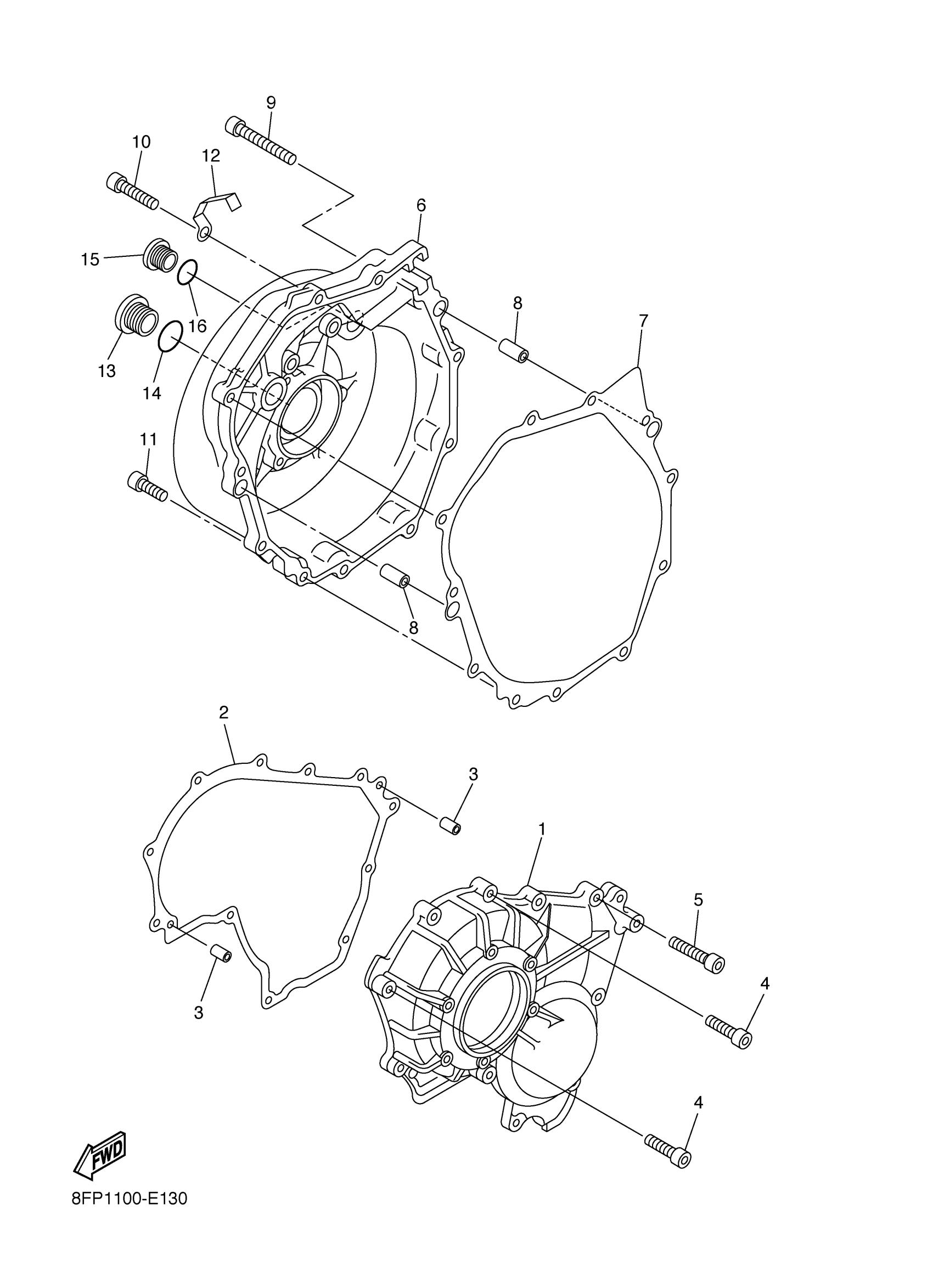

Yamaha RX10LTZW (APEX LTX_GT) 8FT9 2010 CRANKCASE COVER 1 Diagram

COVER, CRANKCASE 1

8FP-15411-00-00

$126.99

GASKET, CRANKCASE COVER 1

8FP-15451-00-00

$18.99

PIN, STRAIGHT

90250-08017-00

Unavailable

BOLT,SOCKET

91317-06025-00

$5.60

BOLT, HEXAGON SOCKET HEAD

90110-06058-00

Unavailable

COVER, CRANKCASE 2

8FP-15421-00-00

Unavailable

GASKET, CRANKCASE COVER 2

8FA-15461-01-00

$16.49

PIN, DOWEL

99530-08012-00

Unavailable

BOLT(J17)

91312-06035-00

$3.28

BOLT,SOCKET

91317-06025-00

$5.60

BOLT,SOCKET HEAD

91314-06020-00

$1.49

CLAMP(4AJ)

90462-08225-00

$8.49

PLUG, STRAIGHT SCREW (15A)

90340-32080-00

$32.99

O-RING (341)

93210-32172-00

$7.49

PLUG, STRAIGHT SCREW(2HT)

90340-14117-00

$14.99

O-RING (2H9)

93210-14369-00

Unavailable
