- RX10LTYR (APEX LTX_GT) 8FT7 2009
TRACK SUSPENSION 2

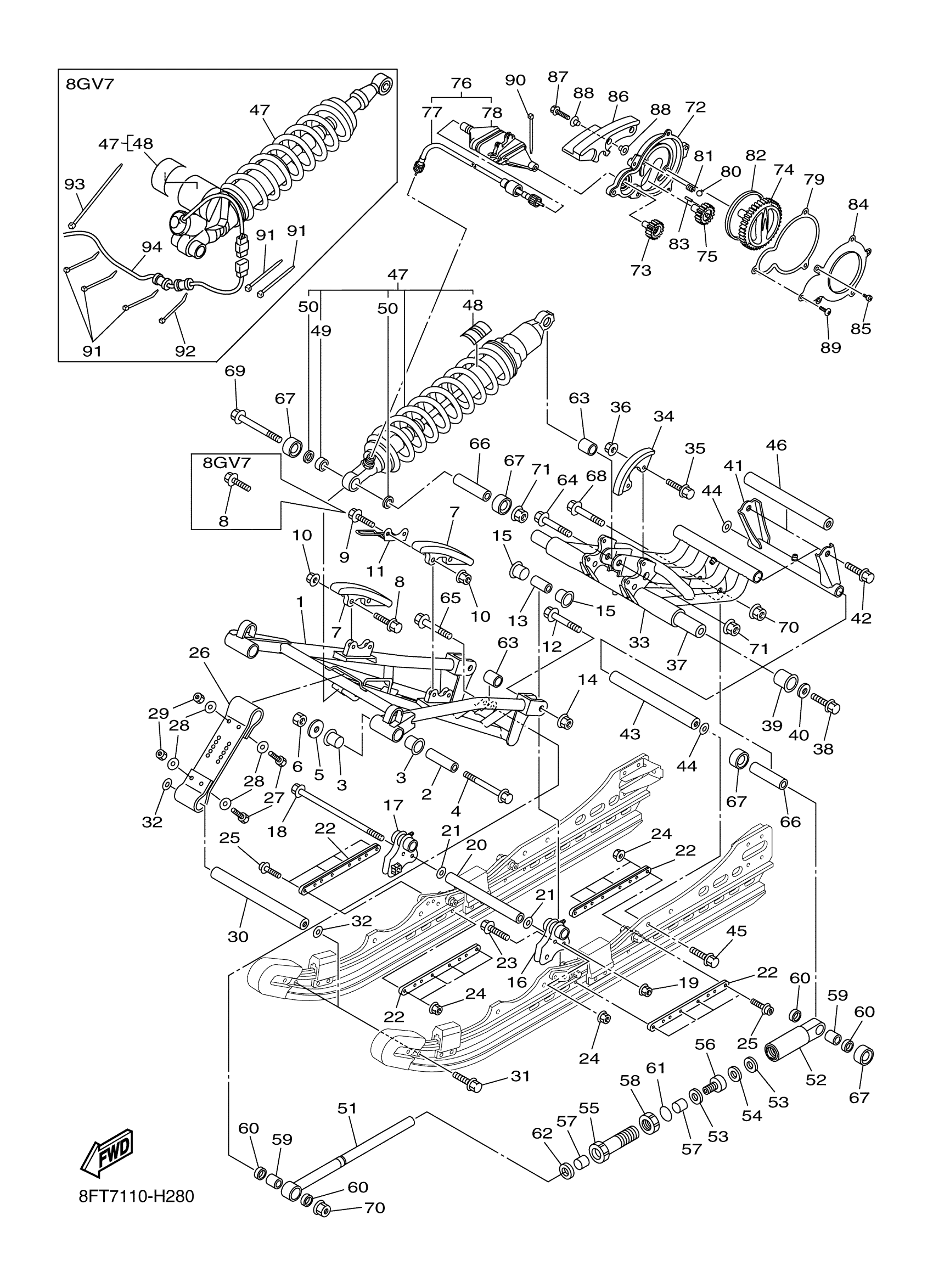

Yamaha RX10LTYR (APEX LTX_GT) 8FT7 2009 TRACK SUSPENSION 2 Diagram
#
1
ARM, PIVOT 1
8FT-47331-01-00
Unavailable
2
COLLAR
90387-10042-00
$21.99
3
BUSH
90386-22002-00
$21.99
4
BOLT, FLANGE
90105-10150-00
$12.49
5
WASHER, PLATE(42X)
90201-105H3-00
$7.49
6
NUT, SELFLOCKING (533 FRAME)
90185-10060-00
$7.49
7
RUNNER, SLIDING 2
8F3-47422-01-00
$18.49
8
BOLT, FLANGE
95817-06020-00
$3.81
9
BOLT, FLANGE
95817-06025-00
Unavailable
10
NUT,SELF-LOCKING
95607-06200-00
$12.49
11
PROTECTOR
8FR-47445-00-00
$25.99
12
BOLT, FLANGE
90105-10091-00
$5.60
13
COLLAR
90387-10033-00
$28.99
14
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
15
BUSH
90386-15002-00
$16.99
16
BRACKET 1
8FU-47415-11-00
Unavailable
17
BRACKET 4
8FU-47418-11-00
Unavailable
18
BOLT, FLANGE
90105-08119-00
Unavailable
19
NUT, SELF-LOCKING
90185-08169-00
Unavailable
20
COLLAR
90387-08037-00
Unavailable
21
WASHER (1T1)
90201-08649-00
Unavailable
22
GUSSET
8FT-47348-00-00
Unavailable
23
BOLT, FLANGE
95812-08030-00
Unavailable
24
NUT, SELF-LOCKING
95602-08200-00
Unavailable
25
BOLT(4EB)
90109-083G1-00
Unavailable
26
STOPPER 1
8GM-47495-00-00
Unavailable
27
BOLT, HEXAGON
97017-06025-00
Unavailable
28
WASHER, PLATE
90201-06081-00
Unavailable
29
NUT, NYLON
95707-06300-00
Unavailable
30
SHAFT 3
8FU-47485-00-00
Unavailable
31
BOLT, FLANGE
95817-10030-00
Unavailable
32
WASHER, PLATE (26H)
90201-102G9-00
Unavailable
33
ARM, PIVOT 2
8FT-47332-02-00
Unavailable
34
SLIDER 1
8FT-47441-10-00
Unavailable
35
BOLT, FLANGE
95817-06020-00
$3.81
36
NUT,SELF-LOCKING
95607-06200-00
$12.49
37
SHAFT 2
8FT-47475-00-00
Unavailable
38
BOLT, FLANGE
90105-10145-00
Unavailable
39
BUSH, SOLID(8CJ)
90381-28108-00
Unavailable
40
WASHER, PLATE
90201-10039-00
Unavailable
41
BRACKET 3
8FU-47417-11-00
Unavailable
42
BOLT, FLANGE
95817-10030-00
Unavailable
43
SHAFT 3
8FU-47485-00-00
Unavailable
44
WASHER PLATE (789)
90201-10136-00
Unavailable
45
BOLT, FLANGE
95817-10030-00
Unavailable
46
SHAFT 4
8FU-47486-00-00
Unavailable
47
SHOCK ABSORBER
8FT-47480-00-00
Unavailable
47
SHOCK ABSORBER
8GV-47480-00-00
Unavailable
48
LABEL, WARNING
4AA-22259-60-00
Unavailable
49
BEARING
93315-31758-00
Unavailable
50
OIL SEAL
93109-17071-00
Unavailable
51
ROD, CONTROL 1
8FR-4745A-00-00
Unavailable
52
ROD, CONTROL 3
8FU-4745C-10-00
Unavailable
53
WASHER
8GM-47384-00-00
Unavailable
54
WASHER (L=7.5)
8FU-47384-00-00
Unavailable
54
WASHER (L=5.0)
8FU-47384-10-00
Unavailable
54
WASHER
8FU-47384-20-00
Unavailable
54
WASHER
8GM-47384-00-00
Unavailable
55
ROD, CONTROL 2
8FU-4745B-00-00
Unavailable
56
STOPPER, CONT. 1
8FU-4745D-00-00
Unavailable
57
BUSH, BIMETAL FORMED(8CJ)
90384-16251-00
Unavailable
58
NUT
8JA-47368-00-00
Unavailable
59
BEARING
93315-31758-00
Unavailable
60
OIL SEAL
93109-17071-00
Unavailable
61
O-RING
93210-347A6-00
Unavailable
62
SEAL, TRIM DUST
C68-43822-00-00
Unavailable
63
COLLAR
90387-1012A-00
Unavailable
64
BOLT, FLANGE (8V9)
95812-10045-00
Unavailable
65
BOLT, WASHER BASED(4KD)
90105-10728-00
Unavailable
66
COLLAR
90387-10034-00
Unavailable
67
SPACER
8FU-47341-00-00
Unavailable
68
BOLT, FLANGE(7LU)
95817-10070-00
Unavailable
69
BOLT, FLANGE(7LU)
95817-10070-00
Unavailable
70
NUT, SELF-LOCKING
90185-10011-00
Unavailable
71
NUT, S/L FLANGE
95602-10200-00
Unavailable
72
HOUSING, ADJUSTER
8FU-474A1-00-00
Unavailable
73
GEAR, DRIVE
8FU-474A2-00-00
Unavailable
74
HANDLE, ADJUSTER
8FU-474A3-00-00
Unavailable
75
GEAR, STOPPER
8FU-474A4-00-00
Unavailable
76
ADJUSTER CABLE ASSY.
8FU-W474A-30-00
Unavailable
77
CABLE, ADJUSTER
8FU-474A5-30-00
Unavailable
78
PROTECTOR
8FU-47445-01-00
Unavailable
79
GASKET, ADJUSTER HOUSING
8FU-474A6-01-00
Unavailable
80
BALL
93501-04011-00
Unavailable
81
SPRING, COMPRESSION
90501-06M35-00
Unavailable
82
SEAL, ADJUSTER HANDLE
8FU-474A7-00-00
Unavailable
83
PIN,DOWEL (603)
93603-12007-00
Unavailable
84
PLATE, GUIDE
8FU-47467-00-00
Unavailable
85
SCREW, PAN HEAD(3LA)
98517-05010-00
Unavailable
86
SLIDER 1
8FU-47441-11-00
Unavailable
87
BOLT, FLANGE
95817-06020-00
$3.81
88
COLLAR (3L1)
90387-07717-00
Unavailable
89
SCREW
90149-06138-00
Unavailable
90
CLAMP
90464-16061-00
Unavailable
91
BAND
1UA-82591-00-00
Unavailable
92
CLAMP(3XW)
90464-35132-00
Unavailable
93
CLAMP
90464-80001-00
Unavailable
94
WIRE, SUB LEAD
8GD-82509-01-00
Unavailable
