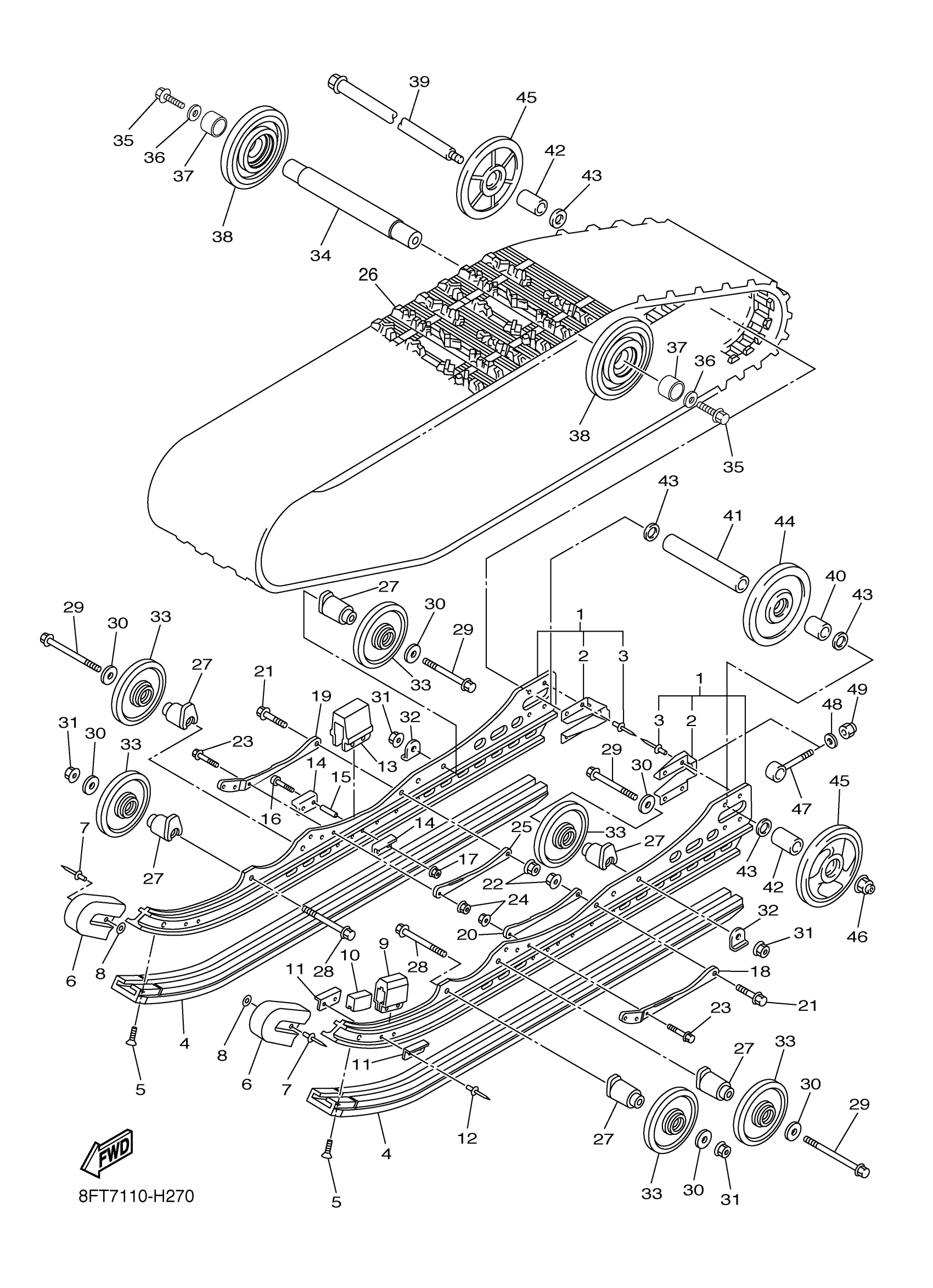

Yamaha RX10LTYR (APEX LTX_GT) 8FT7 2009 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

FRAME, SLIDING

8FT-W4741-00-00

$397.62

2

BRACKET

8DM-4741B-00-00

$39.86

3

RIVET

8V0-47468-00-00

$7.54

4

SLIDE RUNNER BLK 136''

SMA-8FT92-00-BK

$27.82

5

SCREW, CROSSRECESS (8G6)

90151-06005-00

$7.18

6

RUNNER, SLIDING 2

8ED-47422-00-00

$42.54

7

RIVET BLIND

90267-48194-00

$2.20

8

WASHER, PLATE(8CM)

90201-047R8-00

$2.31

9

DAMPER 2

8AC-47457-00-00

$15.03

10

SPACER

8FR-47341-00-00

$9.88

11

PLATE, DAMPER

8AX-47458-00-00

$8.08

12

RIVET, BLIND

90267-48199-00

$2.62

13

DAMPER 2

8FT-47457-00-00

Unavailable

14

PLATE, DAMPER

8FT-47458-00-00

Unavailable

15

COLLAR

90387-05027-00

Unavailable

16

BOLT, HEXAGON SOCKET HEAD

90110-05020-00

$3.37

17

NUT, S/L FLANGE

95607-05200-00

$6.86

18

FRAME, SLIDING C

8FT-4741C-00-00

Unavailable

19

FRAME, SLIDING D

8FT-4741D-00-00

$152.95

20

FRAME, SLIDING E

8FT-4741E-00-00

Unavailable

21

BOLT, FLANGE

95817-10030-00

$6.17

22

NUT, S/L FLANGE

95602-10200-00

$2.29

23

BOLT, FLANGE

95812-06030-00

$1.66

24

NUT, U FLANGE

95604-06200-00

$2.35

25

FRAME, SLIDING F

8FT-4741F-00-00

Unavailable

26

TRACK ASSY

8FG-47110-20-00

Unavailable

27

BRACKET 7

8ES-47419-20-00

$23.86

28

BOLT, WASHER BASED(4HM)

90105-10737-00

$9.82

29

BOLT, WASHER BASED(3FA)

90105-10727-00

$5.02

30

WASHER, PLATE(42X)

90201-105H3-00

$5.68

31

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

32

WASHER, CLAW

90214-10004-00

$3.83

33

SUSPENSION WHEEL ASSY

8ET-47310-00-00

$76.81

34

SHAFT 6

8FT-47488-00-00

Unavailable

35

BOLT, FLANGE

90105-10145-00

$5.34

36

WASHER, PLATE

90201-10039-00

$6.42

37

COLLAR

90387-25005-00

$2.68

38

BOGEY WHEEL W SPACERS & BEARIN

8CR-4731A-00-00

Unavailable

39

REAR AXLE COMP.

8L8-47520-10-00

$67.31

40

COLLAR

90387-20015-00

$23.32

41

COLLAR

90387-20016-00

$20.42

42

COLLAR

90387-20019-00

$22.38

43

WASHER, PLATE(89W)

90201-205R6-00

$10.68

44

GUIDE WHEEL ASSY

8CR-47550-10-00

Unavailable

45

WEIGHT

8EK-47550-11-00

Unavailable

46

NUT, SELF-LOCKING (8BF)

95607-14200-00

$10.17

47

COLLAR 3

8DM-47479-00-00

$15.04

48

WASHER, PLATE

92990-10600-00

$2.61

49

NUT, NYLON

95707-10300-00

$6.68
