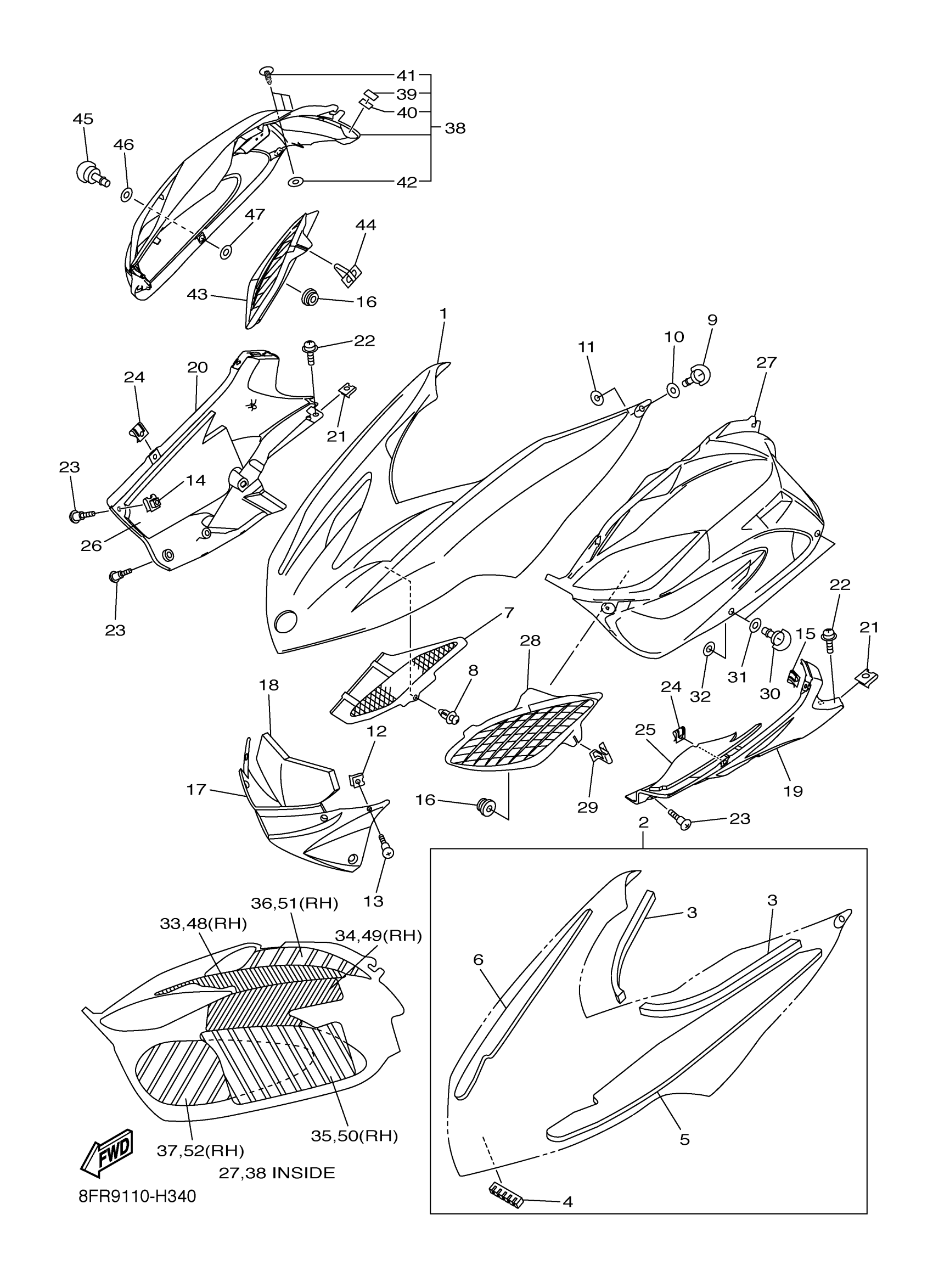

Yamaha RX10LTYR (APEX LTX_GT) 8FT7 2009 SHROUD Diagram

#

Description
Price

1

SHROUD

8FP-77111-01-P0

Unavailable

1

SHROUD

8FP-77111-01-P1

Unavailable

2

LINING SET

8FP-W7726-00-00

$19.11

3

TRIM 1

8FP-77165-00-00

$3.95

4

GUIDE 1

8FP-77123-00-00

$1.78

5

DAMPER, NOISE 11

8FP-77271-00-00

$3.57

6

DAMPER, NOISE 11

8FP-77271-10-00

$3.57

7

LOUVER 3

8FP-77133-10-00

$41.71

8

RIVET

90269-06081-00

$5.69

9

HEAD

3FV-28386-00-00

$22.96

10

WASHER, SPECIAL 1

2TK-21757-00-00

$1.54

11

WASHER, SPECIAL 1

5TJ-21757-00-00

$6.43

12

NUT, SPRING(4ES)

90183-06069-00

$5.93

13

SCREW, BINDING

90154-06009-00

$2.92

14

NUT, SPRING

90183-06100-00

$7.88

15

PLATE, SPRING

4XV-2177L-01-00

$6.20

16

GROMMET

90480-13019-00

$3.82

17

PANEL, SUB FRAME 1

8FA-21912-00-00

$141.35

18

DAMPER 1

8FP-77198-00-00

$9.25

19

HOOD 1

8FP-21982-00-00

$161.25

20

HOOD 2

8FP-21983-00-00

$196.88

21

NUT, SPRING(4ES)

90183-06069-00

$5.93

22

SCREW, WITH WASHER

90159-06011-00

$6.20

23

SCREW, BINDING

90154-06009-00

$2.92

24

PLATE, SPRING

4XV-2177L-01-00

$6.20

25

DAMPER, NOISE 18

8FP-77278-00-00

$16.22

26

DAMPER, NOISE 19

8FP-77279-00-00

$14.15

27

HOOD 3

8FP-2197H-00-00

Unavailable

28

LOUVER 5

8FP-77109-00-00

$40.98

29

CLIP

90468-06001-00

$3.49

30

HEAD

3FV-28386-00-00

$22.96

31

WASHER, SPECIAL 1

2TK-21757-00-00

$1.54

32

WASHER, SPECIAL 1

5TJ-21757-00-00

$6.43

33

DAMPER, NOISE 12

8FP-77272-00-00

$28.08

34

DAMPER, NOISE 13

8FP-77273-00-00

$8.38

35

DAMPER, NOISE 14

8FP-77274-00-00

Unavailable

36

DAMPER, SHROUD

8FP-77196-00-00

$6.14

37

DAMPER

8FP-78316-00-00

$7.82

38

HOOD ASSY 4

8FR-2198A-03-00

$195.32

39

TAPE 2

8FR-7717F-00-00

$3.66

40

PAD 1

8FR-77151-00-00

$4.03

41

. RIVET

90269-07064-00

$0.94

42

WASHER, PLATE

90202-07002-00

$4.11

43

LOUVER 6

8FP-77108-00-00

$42.55

44

CLIP

90468-06001-00

$3.49

45

HEAD

3FV-28386-00-00

$22.96

46

WASHER, SPECIAL 1

2TK-21757-00-00

$1.54

47

WASHER, SPECIAL 1

5TJ-21757-00-00

$6.43

48

DAMPER, NOISE 15

8FP-77275-00-00

$29.53

49

DAMPER, NOISE 16

8FP-77276-01-00

$18.28

50

DAMPER, NOISE 17

8FP-77277-01-00

$34.46

51

DAMPER, SHROUD

8FP-77196-10-00

$6.85

52

DAMPER

8FP-78316-10-00

$7.43
