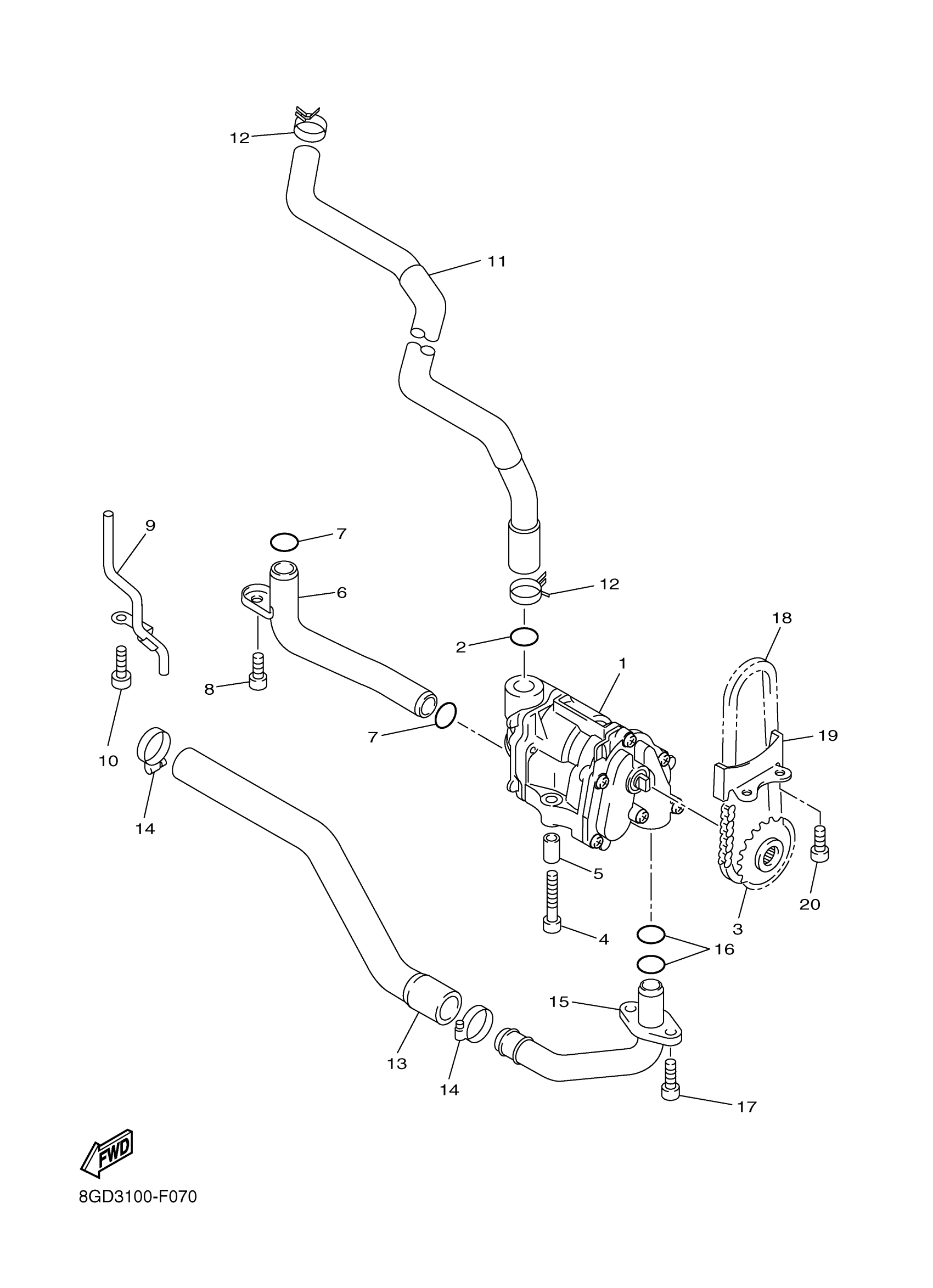

Yamaha RX10LTYR (APEX LTX_GT) 8FT7 2009 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

8FA-13300-10-00

Unavailable

2

O-RING (1L9)

93210-18322-00

$4.33

3

SPROCKET, DRIVEN

8FA-13355-00-00

Unavailable

4

BOLT(J17)

91312-06035-00

$2.26

5

PIN, DOWEL

99530-08012-00

$5.39

6

PIPE, OIL 1

8FA-13416-00-00

Unavailable

7

O-RING (26H)

93210-16629-00

$5.01

8

BOLT,SOCKET

91317-06012-00

$5.87

9

PIPE, DELIVERY 1

8FP-13161-00-00

Unavailable

10

BOLT,SOCKET

91317-06012-00

$5.87

11

HOSE, OIL 1

8FP-13464-00-00

Unavailable

12

CLIP(34X)

90467-22097-00

$6.79

13

HOSE, OIL 2

8FA-13465-00-00

$84.39

14

HOSE CLAMP ASSY

90450-28001-00

$11.95

15

CONNECTOR, SUCTION PIPE 2

8FA-1311A-00-00

$30.88

16

O-RING (26H)

93210-16629-00

$5.01

17

BOLT (33M)

91312-06014-00

Unavailable

18

CHAIN

94580-31058-00

Unavailable

19

HOLDER

8FA-13898-00-00

Unavailable

20

BOLT,SOCKET

91317-06012-00

$5.87
