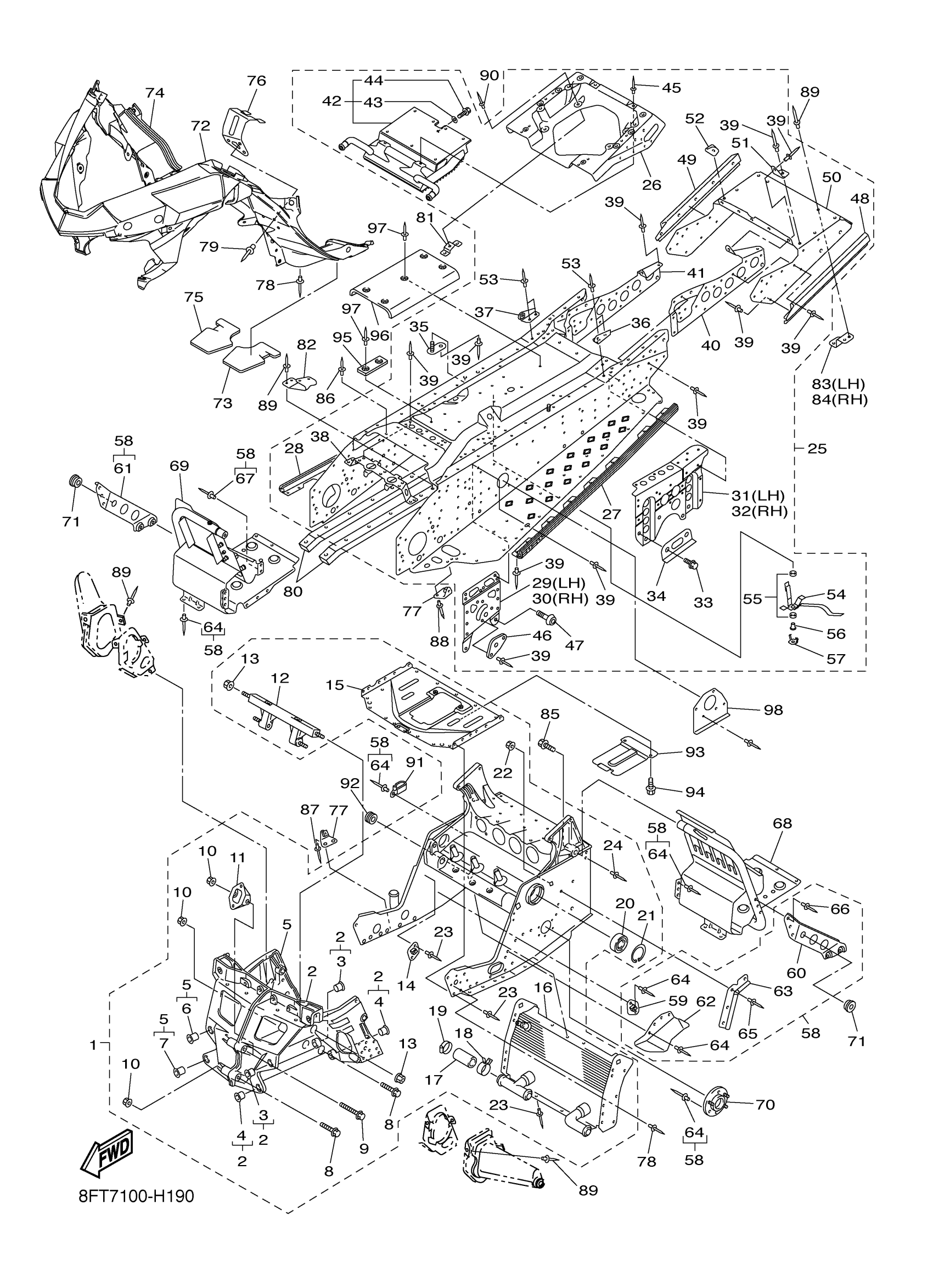

Yamaha RX10LTYR (APEX LTX_GT) 8FT7 2009 FRAME Diagram

#

Description
Price

1

FRONT FRAME COMP.

8FR-21940-00-00

$2,379.99

2

BULKHEAD

8FA-W2197-13-00

$475.74

3

BUSH, SOLID

90381-15001-00

$4.11

4

BUSH, SOLID

90381-16004-00

$12.91

5

BULKHEAD 2

8FA-W2198-20-00

Unavailable

6

BUSH, SOLID

90381-15001-00

$4.11

7

BUSH, SOLID

90381-16004-00

$12.91

8

BOLT, FLANGE

95817-08060-00

$3.28

9

BOLT, WASHER BASED

90105-084A1-00

$9.38

10

NUT, SELF-LOCKING

90185-08169-00

$7.09

11

BRACKET, REGULATOR

8FA-2128A-01-00

$8.25

12

BRACKET, STEERING 1

8FG-21947-00-00

$173.95

13

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

14

BRACKET, CHAIN HOUSING

8CR-21939-01-00

$5.35

15

PROTECTOR

8FR-2193A-01-00

$93.12

16

HEAT EXCHANGER ASSY

8FA-12440-00-00

Unavailable

17

HOSE 7

8FA-12551-00-00

$7.51

18

CLIP (8M6)

90467-28046-00

$12.43

19

HOSE CLAMP ASSY

90450-35001-00

$5.25

20

BEARING

93306-20650-00

$61.77

21

CIRCLIP(MF1)

99009-62500-00

$6.23

22

NUT, SELF-LOCKING

90185-08169-00

$7.09

23

RIVET, BLIND

90267-47195-00

$3.33

24

RIVET, BLIND

90267-48016-00

$7.85

25

REAR FRAME COMP.

8FT-21950-40-00

Unavailable

25

REAR FRAME COMP.

8GV-21950-50-00

$3,322.99

26

REINEFORCEMENT, FRAME REAR 1

8FA-W2199-10-00

$2,123.99

27

REINFORCEMENT, FOOTREST 1

8FG-21926-00-00

$130.40

28

REINFORCEMENT, FOOTREST 2

8FG-21936-00-00

$130.40

29

. BRACKET, MAIN TRACK 1

8FU-21943-00-00

Unavailable

30

BRACKET, MAIN TRACK 2

8FU-21953-00-00

Unavailable

31

BRACKET, RR.TRACK SUSPENTION 1

8FT-21944-00-00

$79.89

32

BRACKET, RR.TRACK SUSPENTION 2

8FT-21954-00-00

$79.89

33

BOLT, FLANGE

95814-10020-00

$3.78

34

PATCH 8

8FU-21988-01-00

$8.00

35

BRACKET, FUEL TANK 1

8CR-2194N-00-00

$3.14

36

BRACKET 1

8FA-2194X-00-00

$3.54

37

BRACKET 2

8FA-2195X-00-00

$3.54

38

PROTECTOR, MUFFLER

8FA-2194H-01-00

$67.91

39

RIVET, BLIND

90267-47195-00

$3.33

40

PATCH 3

8FT-21963-01-00

$56.35

41

PATCH 4

8FT-21964-00-00

$62.66

42

HEAT EXCHANGER ASSY 4

8FT-1241A-00-00

$804.74

43

WASHER, SEAL (7G5)

90210-06006-00

$5.72

44

BOLT, FLANGE

95817-06012-00

$1.49

45

RIVET, BLIND(3JB)

90267-48095-00

$2.00

46

BRACKET, MAIN TRACK 3

8FU-21919-00-00

$4.65

47

BOLT, BUTTON

92014-10020-00

$3.55

48

MEMBER, SIDE 1

8FG-2111J-00-00

$81.60

49

MEMBER, SIDE 2

8FG-2111K-00-00

$81.60

50

PANEL, SUB FRAME 5

8FT-21916-01-00

$159.18

51

PATCH 8

8FG-21988-00-00

$4.15

52

PATCH 9

8FG-21989-00-00

$4.15

53

RIVET, BLIND

90267-47197-00

$1.56

54

STAY, MUFFER

8FR-2194L-00-00

$41.26

55

DAMPER, MUFFLER

8FA-14737-00-00

$3.89

56

COLLAR

90387-08084-00

Unavailable

57

. STAY, MUFFLER

8FR-2194J-00-00

Unavailable

58

FRAME CONNECTION KIT

8FP-W2195-11-00

Unavailable

59

BRACKET, CHAIN HOUSING

8CR-21939-01-00

$5.35

60

BRACKET, 5

8FP-2196M-01-00

$25.69

61

BRACKET, 6

8FP-2197M-01-00

$25.69

62

COVER 2

8FP-2198G-01-00

$20.57

63

CLAMP, WIREHARNESS

8FA-21999-00-00

$7.25

64

RIVET, BLIND

90267-47195-00

$3.33

65

RIVET, BLIND

90267-48018-00

$7.35

66

RIVET, BLIND

90267-48177-00

$1.71

67

RIVET, BLIND(8CR)

90267-47186-00

$2.31

68

FOOTREST COMP. 1

8FP-21960-01-00

$215.92

69

FOOTREST COMP. 2

8FP-21970-00-00

Unavailable

70

HOUSING, REINF SUB-ASSY(L.H)

8EK-21920-01-00

$17.68

71

GROMMET(4FU)

90480-13567-00

$3.88

72

FRAME UNDER 1

8FP-2196A-02-00

$60.31

73

DAMPER 2

8FP-77374-00-00

$4.39

74

FRAME, UNDER 2

8FP-2196E-02-00

$60.02

75

DAMPER 3

8FP-77375-00-00

$6.55

76

BRACKET, GUARD FITTING

8FP-21972-00-00

$31.89

77

BRACKET 3

8FA-2196F-00-00

$5.58

78

RIVET, BLIND

90267-48018-00

$7.35

79

RIVET, BLIND

90267-47200-00

$2.28

80

PROTECTOR, FRAME

8FT-21978-00-00

$116.74

81

BRACKET 7

8FT-2197N-00-00

$7.83

82

BRACKET 7

8FU-2197N-00-00

$18.03

83

BRACKET 3

8FT-2196F-00-00

$14.89

84

BRACKET 4

8FT-2196G-00-00

$10.91

85

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

86

RIVET, BLIND(8CR)

90267-47186-00

$2.31

87

RIVET, BLIND (22W)

90267-48083-00

$2.78

88

RIVET, BLIND(3JB)

90267-48095-00

$2.00

89

RIVET, BLIND

90267-47195-00

$3.33

90

RIVET, BLIND

90267-48177-00

$1.71

91

CLAMP(4MX)

90465-06376-00

$7.08

92

GROMMET

90480-23001-00

$51.52

93

PROTECTOR, FRAME FR

8FR-2197E-00-00

$42.43

94

BOLT, BUTTON HEAD

92012-06012-00

$2.49

95

SPACER

8FA-21998-00-00

$3.60

96

SHIELD, HEAT

8FG-23892-00-00

$43.78

97

RIVET, BLIND (8L0)

90267-48059-00

$2.46

98

PATCH 2

8FR-21962-00-00

$44.03
