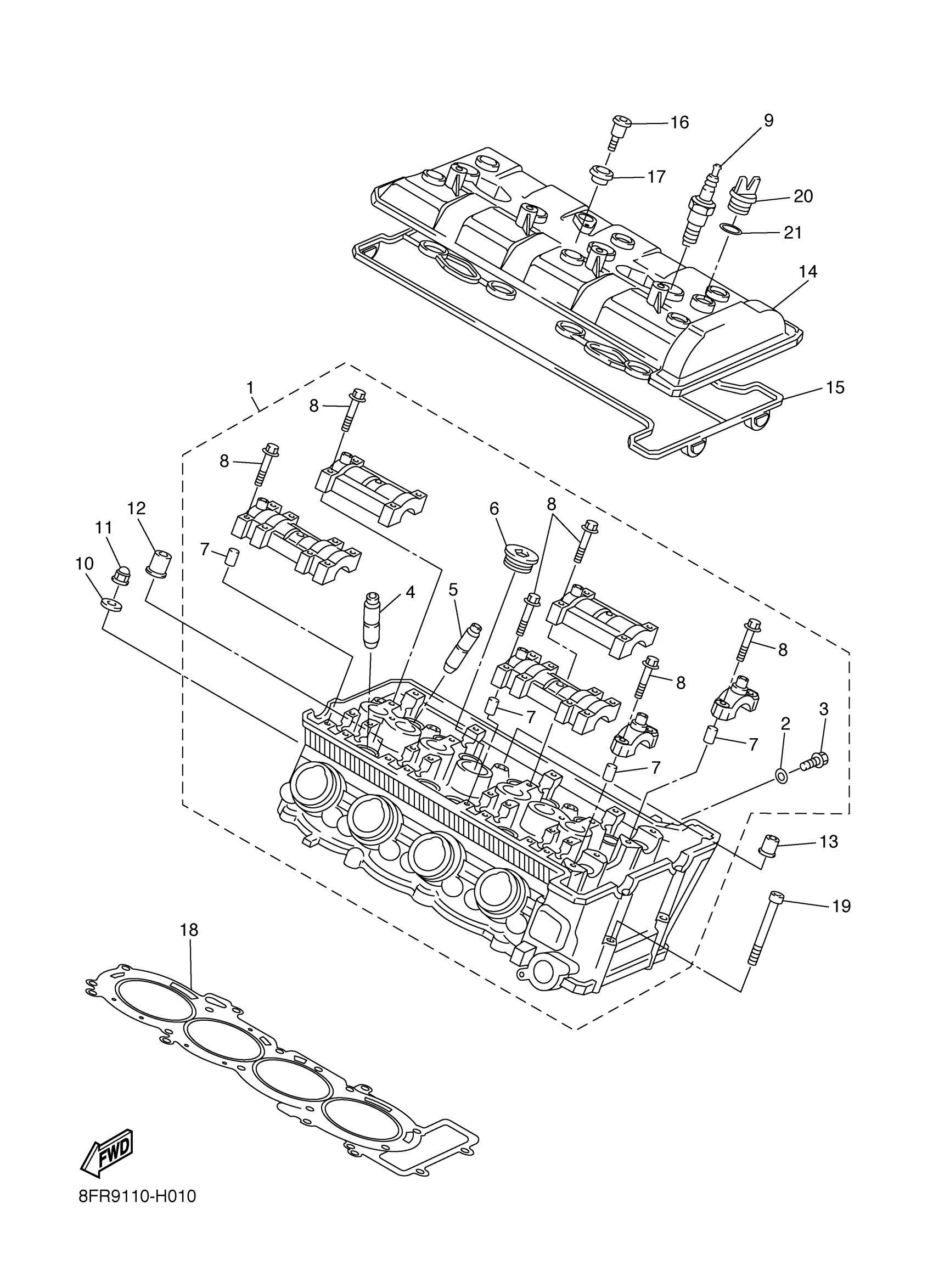

Yamaha RX10LTYR (APEX LTX_GT) 8FT7 2009 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

8FP-11101-09-00

Unavailable

2

GASKET 256113960000

90430-06014-00

$7.23

3

BOLT, FLANGE(4MY)

95027-06012-00

$3.28

4

GUIDE, INTAKE VALVE

3TJ-11133-10-00

$62.92

5

GUIDE, INTAKE VALVE

1WG-11133-11-00

$46.74

6

PLUG, STRAIGHT SCREW

90340-27001-00

$17.68

7

PIN, DOWEL(3XW)

91808-16023-00

$5.48

8

. BOLT, FLANGE

90105-06026-00

Unavailable

9

CR9EB NGK SPLUG 4PK

CR9-EB000-00-00

$11.29

10

WASHER, PLATE

90201-10033-00

$6.26

11

NUT, CROWN(2GG)

90176-10075-00

$6.57

12

NUT

90179-10006-00

$7.62

13

NUT (26H)

90179-10414-00

$9.54

14

COVER, CYLINDER HEAD 1

8FP-11191-00-00

$186.97

15

GASKET, HEAD COVER 1

8FP-11193-00-00

$53.77

16

BOLT(4BP)

90109-066F0-00

$6.38

17

RUBBER, MOUNT 1

5VY-1111G-00-00

$10.68

18

GASKET, CYLINDER HEAD 1

8FP-11181-00-00

$57.92

19

BOLT,SOCKET

91317-06060-00

$3.26

20

PLUG, OIL

3Y1-15363-10-00

$17.02

21

O-RING (646)

93210-19123-00

$6.91
