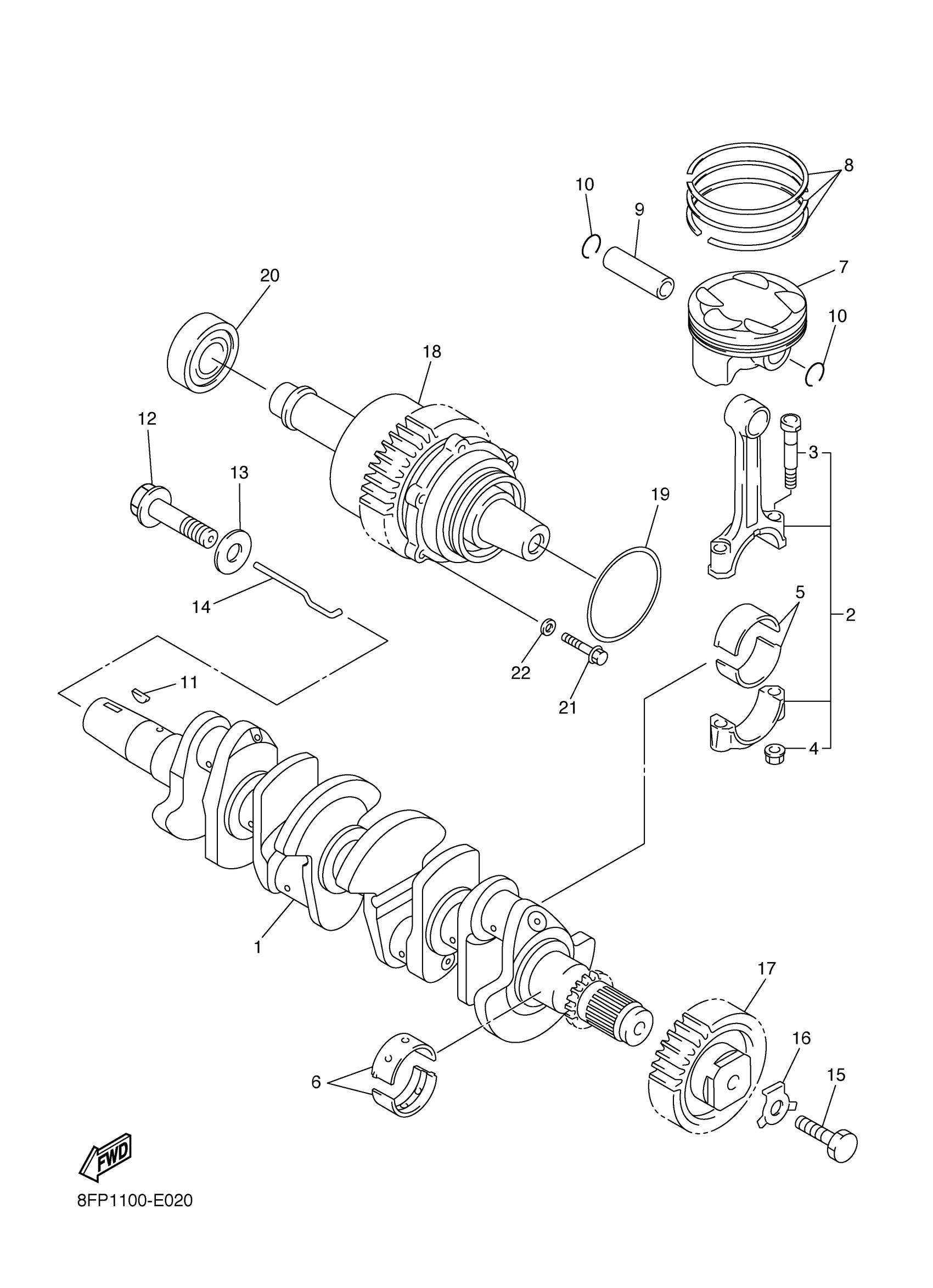

Yamaha RX10LTYR (APEX LTX_GT) 8FT7 2009 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT

8FP-11411-00-00

$1,141.99

2

CONNECTING ROD ASSY

5PW-11650-00-00

$215.41

3

BOLT, CONNECTING ROD

5JW-11654-00-00

$5.31

4

NUT (11H)

90179-08327-00

$6.98

5

PLANE BEARING, CONNECTING ROD

3GM-11656-00-00

$29.91

5

PLANE BEARING, CONNECTING ROD

3GM-11656-10-00

$29.85

5

PLANE BEARING, CONNECTING ROD

3GM-11656-A0-00

$26.11

5

PLANE BEARING, CONNECTING ROD

3GM-11656-B0-00

$26.08

6

PLANE BEARING, CRANKSHAFT 1

8FA-11416-00-00

$17.15

6

PLANE BEARING, CRANKSHAFT 1

8FA-11416-10-00

$14.64

6

PLANE BEARING, CRANKSHAFT 1

8FA-11416-20-00

$18.02

6

PLANE BEARING, CRANKSHAFT 1

8FA-11416-A0-00

$18.18

6

PLANE BEARING, CRANKSHAFT 1

8FA-11416-B0-00

$18.49

7

PISTON (STD)

4XV-11631-10-00

$83.95

8

PISTON RING SET (STD)

8FU-11603-00-00

$59.39

9

PIN, PISTON

4XV-11633-00-00

$25.33

10

CLIP (1J7)

90468-12069-00

$6.68

11

KEY, WOODRUFF (26H)

90280-05029-00

$9.23

12

BOLT, FLANGE

90105-12032-00

$33.29

13

WASHER (838)

90201-12191-00

$6.11

14

SHAFT 1

5JW-11455-00-00

$2.25

15

BOLT

90101-10009-00

$8.48

16

WASHER, LOCK

90215-10001-00

$4.08

17

GEAR, PRIMARY DRIVE

8FP-16111-00-00

$206.72

18

SHAFT ASSY

8FP-11406-00-00

$754.99

19

O-RING (4G0)

93210-56459-00

$11.03

20

BEARING

93306-27209-00

$67.09

21

BOLT, FLANGE

95817-06025-00

$1.46

22

GASKET (4V2)

90430-06166-00

$3.45
